R1 ARTR ROCK CRAWLER BUGGY (RED VERSION)

R1 ARTR ROCK CRAWLER BUGGY (RED VERSION)

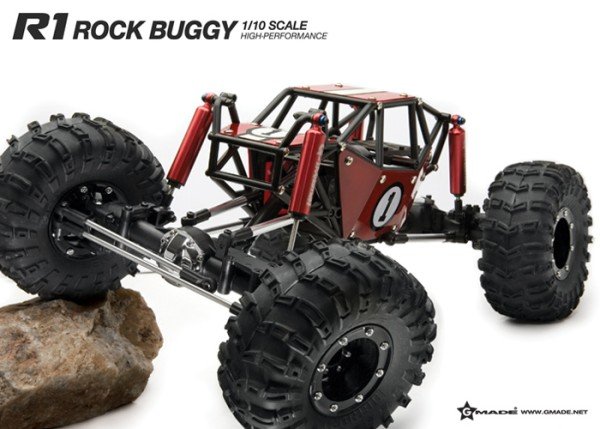

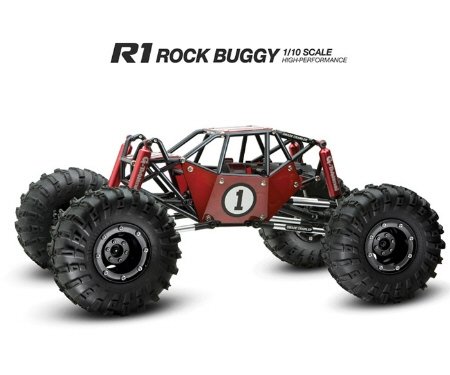

The GMADE R1 Rock Crawler Buggy is an almost ready to run rock crawlin" buggy. This kit is pre-assembled, but requires electronics (servo,radio,receiver,speed control, motor and battery).

GMADE is known world-wide for their design innovation and high quality. The R1 features a ton of high-tec, well made features including: the tube frame, the transmission, the once piece portal axle, the 4-link suspension, the G-transition shock, the GT beadlock wheels and the Bighorn Tires. All these make for a super rugged crawler that can take on the toughest conditions.

Tube Frame

Tube frame design, based on a full scale crawler -- light and durable
Adjustable shock mounting for fine-tuning the suspension
Easy to assemble and Maintain
Transmission

Perfectly sealed for dustproof effect
Full ball bearings placed at all the axis of the gears
Motor mount cap can be opened or closed for backlash adjustment
Portal Axle

One piece axle housing
Drive axles are above the center of the wheels -- greater ground clearance
G-Transition Shock

Fully adjustable
Anodized aluminum shock body
3.5mm thick shock shafts
Anodized aluminum upper and lower shock end balls
Big Horn Tires

Large, deep lugs provide exceptional traction in rock, mud and dirt.
Items Need to Complete

Servo
Radio
Receiver
Speed Control
Motor
Battery
Features

Full ball bearings
One piece portal axles
All-in-one body and tube frame
Adjustable, aluminum oil-filled shocks
Dual sided bead-lock wheels
Four link suspension
4WD shaft drive transmission
Excellent Tire Traction
Specs

Width : 11.4 inches (290mm)
Height: 7.5 inches (190mm)
Length: 17.3 inches (440mm)
Wheelbase: 12.2 inches (310mm)
Wheels: 2.2 inches (56mm)
Tires: Height: 5.3 inches / Width 2.3 inches / Inner Diameter 2.2 inches
Axle Ground Clearance: 3 inches - Droop Set-up
Axle Ground Clearance: 3.7 inches - Spring Set-up
