NGH GT9cc gas engine
The NGH GT9 is an ideal replacement for 0.40-0.56 nitro engines!
Engine Type - Gasoline Two-stroke, Air Cooled, Rotary Valve
Cylinder Type - Precision Steel Sleeve
Cylinders - Single
Crank Type - Forged Dual Ball Bearing Support
Mounting Type - Beam or Rail Mount
Carburetor Type - NGH Proprietary Micro
Carburetor Mounting - Front
Crankshaft Threads -1/4"- 28 TPI
Mounting Dimensions - Owners Manual or Website
Ignition: RCEXL 1/4-32 90 Degree Single Cylinder
Spark Plug Type - 1/4" X 32 TPI
Displacement - 9.07 cc
Bore - 23.35 mm
Stroke - 21.2 mm
Engine+ Muffler+ Ignition (Total Weight) = 1 lb. 3 oz. (545 g)
Prop Range - 10 X 6 to 12 X 6
RPM Range - 2600-15000
Fuel - Unleaded Gasoline With High-Quality Two-Cycle Oil, Pre- Mixed
Pre-Mix Oil Ratio and Type - Full Synthetic Break-in with 20:1, General 25:1, premix for Air Cooled Engines

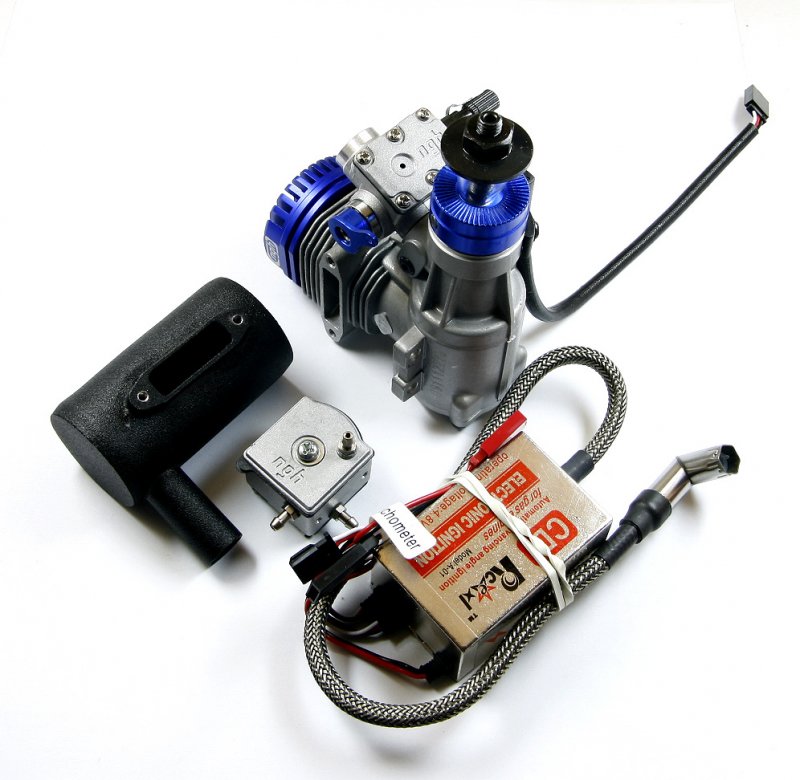

The engine comes complete with everything shown in the picture; engine, muffler, RCEXL CDI ignition, spark plug, and a one year USA warranty. Our engines have individualized serial numbers from the factory.
Note: You must use 3/32" ID fuel line for this engine for the fittings to seal. We suggest the medium neoprene or 3/32" ID Tygon.
