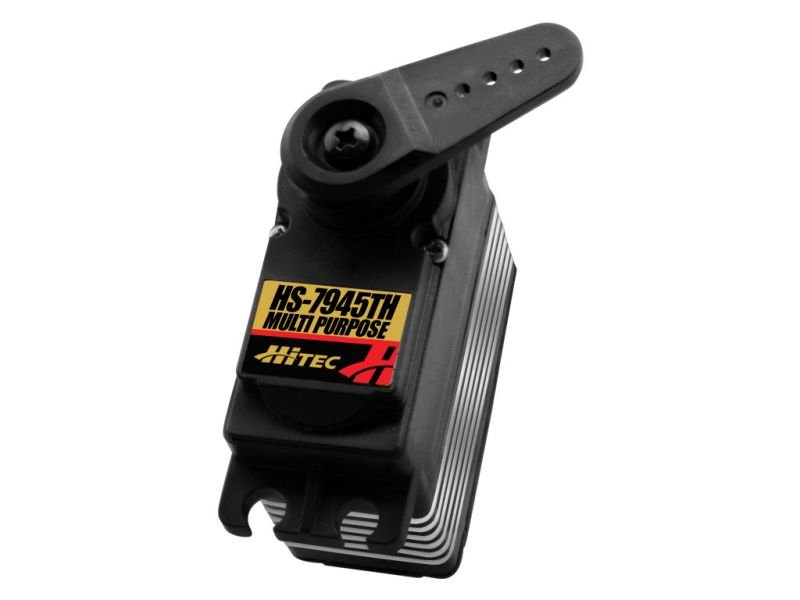

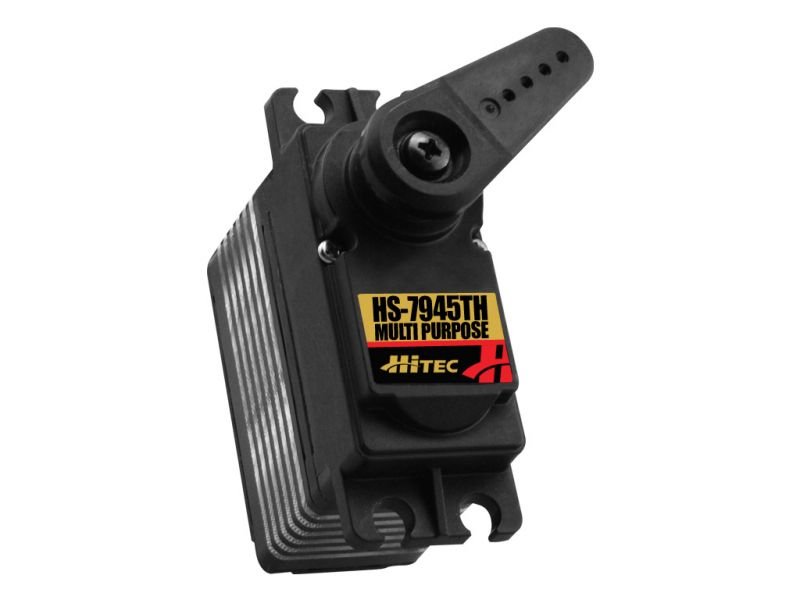

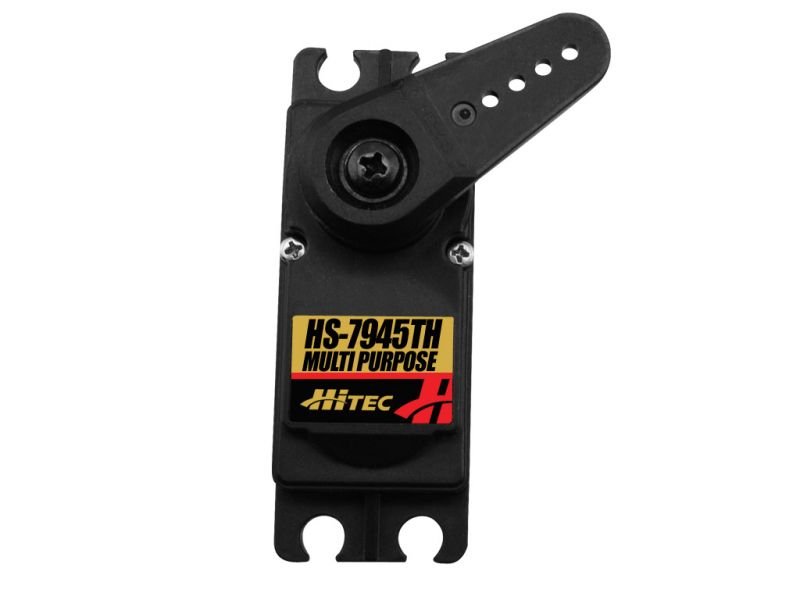

Combining high torque with high speed the HS-7945TH is Hitec's most versatile high voltage digital servo. Designed to operate on a two cell LiPo Pack, the HS-7945TH features our high resolution "G2" second generation programmable digital circuit and our indestructible Titanium gears giving you the performance and durability you've come to expect from a Hitec servo. Other features in the HS-7040TH include a 7.4V optimized coreless motor, integrated heat sink case, and a top case with two hardened steel gear pins supported by axial brass bushings. The HS-7945TH has been designed for applications where both high speed and high torque are needed. The HS-7945TH is perfect for High Performance Aircraft, Cars, and Trucks as well as larger Nitro and Electric Helicopters. Features �G2 Digital Circuit �Titanium Gear Train (MK first gear) �Ultra Performance Coreless Motor �Heatsink Case �(8) O-Rings for Water/Dust/Fuel protection �Dual Ball Bearing Supported Output Shaft Programmable Features Include - Dead Band Width - Direction of Rotation - Speed of Rotation (slower) - End Points - Neutral Points - Fail Safe On/Off - Fail Safe Point - Resolution* (default is high resolution) - Overload Protection* (default is off) *These features are only programmable with the HFP-20, HPP-20 or HPP-21 programmers. Specifications Motor Type: 7.4v Wind Coreless Bearing Type: Dual Ball Bearing Speed (6.0V/7.4V): 0.12 / 0.10 second @ 60� Torque oz./in. (6.0V/7.4V): 250 / 319 Torque kg./cm. (6.0V/7.4V): 18.0 / 23.0 Size in Inches: 1.57 x 0.79 x 1.50 Size in Millimeters: 39.88 x 20.07 x 38.10 Weight oz.: 2.40 Weight g.: 68
