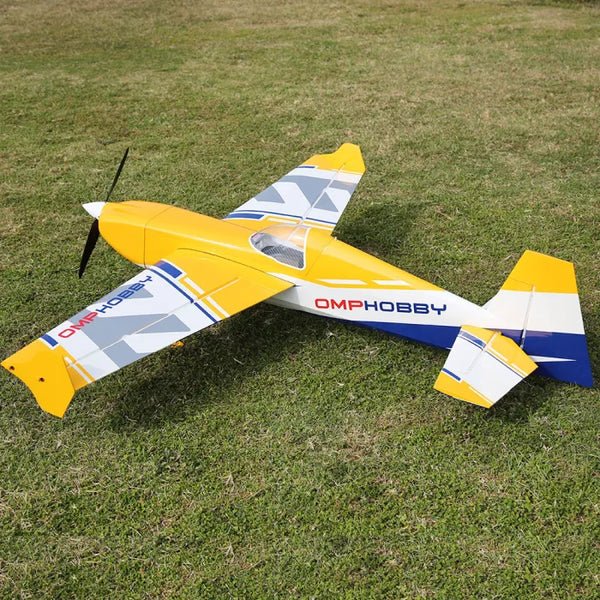

OMP Hobby 60" 70E Edge 540 Kevlar Reinforced Balsa 3D Airplane Receiver Ready

Parameter Specification

Electric Power (Included):

Motor: X4120 V3 550KV
ESC: 100 amp SunnySky
Servos: SG12 X4
Servo Arms: Aluminum X4
Propeller: 15X8 EOLO
Recommended battery: (not included)


Item：
OMPHOBBY 60”EDGE 540
Color:
Green▢ Red▢ Yellow▢ Orange▢ YELLOW
Wing Span:
1524mm(60in)
Full Length:
1500mm(59in)
Flight Weight:
2.75~2.85KG
The Center of Gravity (CG)：
Approx.86-95mm
Wing Area:
42.32d㎡
Wing Load:
64.98~67.34g/d㎡
Wing Angle of Incidence:
0°
Motor Thrust Angles:
Down 0° & Right 2.8°
Pack Dimension：
130*44*22 (L*H*W)cm
Gross Weight:
10KG


Recommended Settings of Dual Rates and Exponentials of Control Surfaces


Rate EXP Direction
Throw
Aileron
High
35~40%
Up
36~39°
Low
40~45%
Down
20~26°
Elevator
High
38~45%
Up
45~53°
Low
45~55%
Down
30~35°
Rudder
High
38~45%
Up
42~50°
Low
45~55%
Down
28~32°
