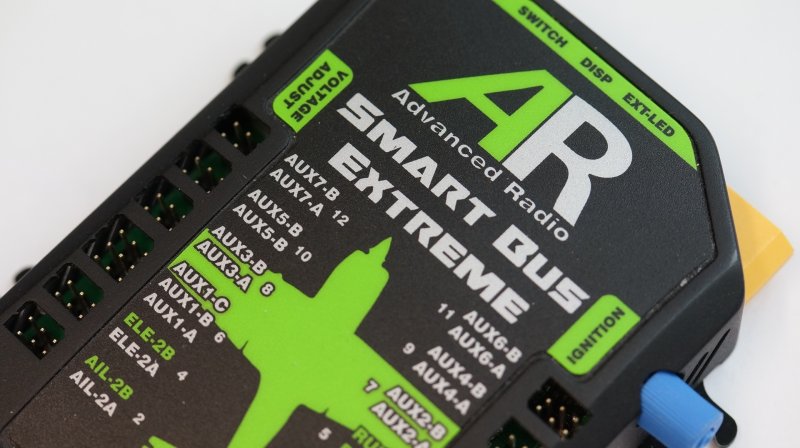

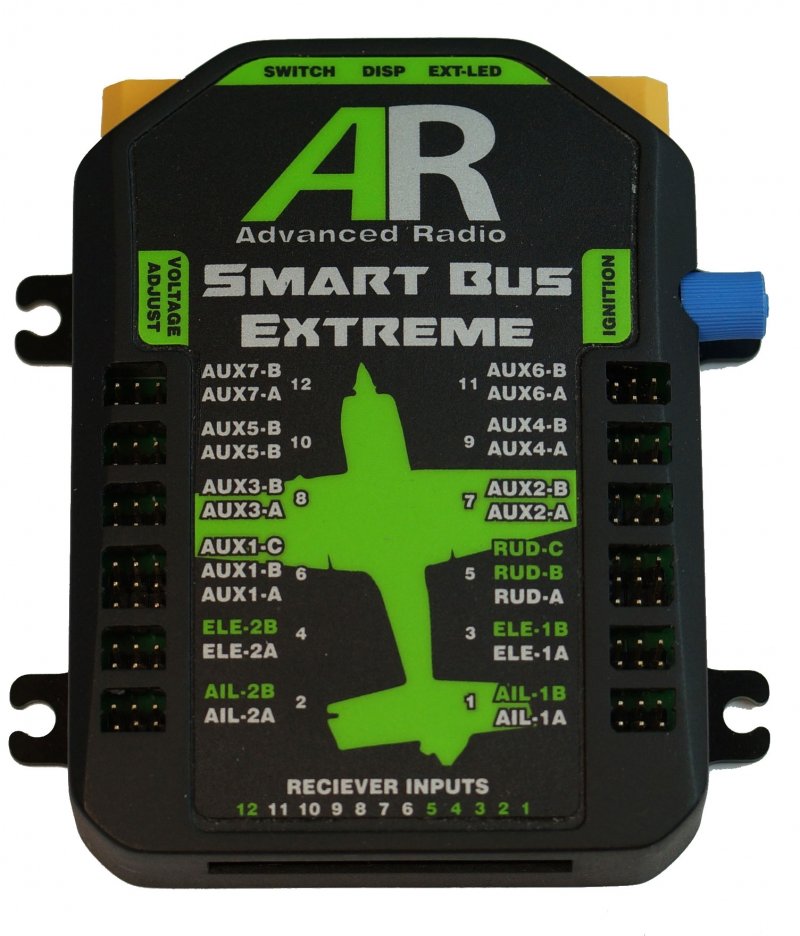

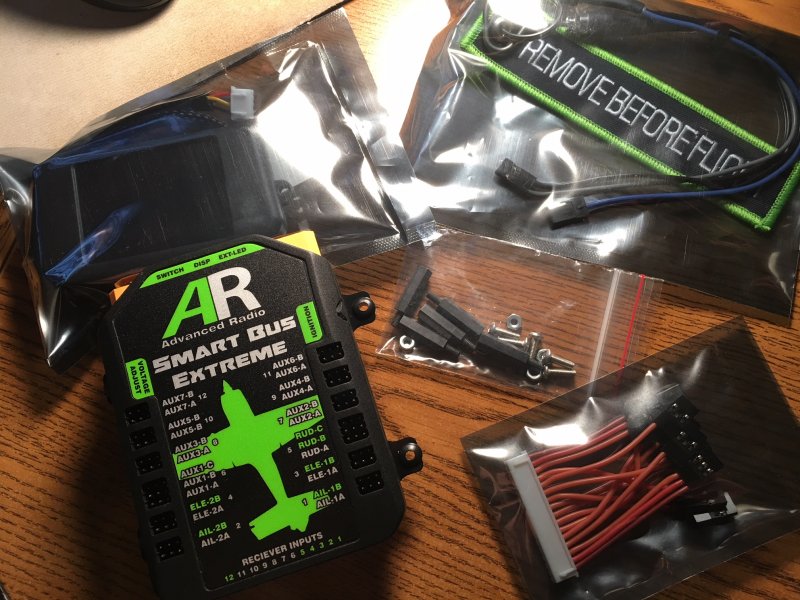

Booma RC Smart Bus Extreme 3S

Quick overview
The Smart Bus is the complete power expansion system designed for the pilot who does not need servo voltage regulation. It comes with 12 inputs, 26 Outputs, active dual battery redundant, power distribution, battery monitoring, multi-point servo matching and a flight timer. Supplied with a vibrant 2.5 inch color screen to monitor and program all these features. With Remote switching or Pin switching option

Smart Bus extreme 3s unlocks your models potential.

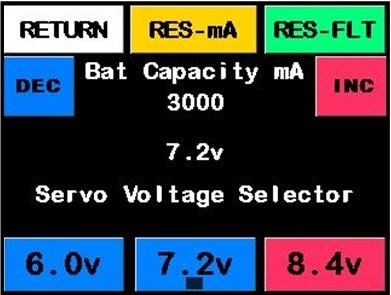

Proud to provide the first 3s capable power expander, now you can run use 3S batteries regulated to 8.4 volts giving you faster and more powerful servos, crisper response and perfect centring. Ensure both you and your model can handle this increase in power as it is not for the faint of heart, or those with slow reactions.

Regulated voltage gives you precise, repeatable, results.
It is hard to be the best with a model that changes. With our high powered 260A regulators we remove the change and give you pure constant regulation. As batteries are used their voltage drops, changes in voltage mean changes in speed and power of your servos. Regulating ensures your model is the same time after time.

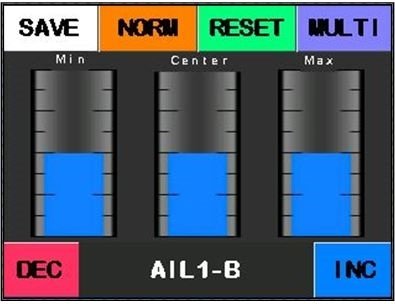

The Next standard in servo Matching.

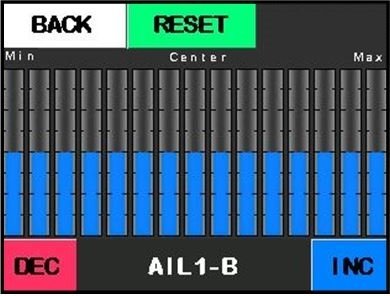

In the Rc industry precision is key. How can you expect to be precise when no two servos are identical, giving you varied results no matter how well you mechanically match them. Match your servos across 15 individual points, with 8000 step resolution and you can finally achieve matched perfection on your elevators, flaps, multi-engines and more. Take the hassle out of your new setup and have a model that raises your skills.

Sub-trim and reverse on all major outputs
Ever spent hours, mechanically matching servos and never being able to get them just right or had to use a separate channel on your receiver, just to reverse a servo. With our intuitive and simple setup you can easily sub-trim at the centre and end-points of all your major outputs. Using Smart Bus you can individually reverse your servos at a touch of a button.

12 inputs and 26 outputs.
Looking at that next big project and wondering how you're going to power all those servos, if you have enough channels on a receiver to power servos, retracts, flaps, brakes, ailerons, dual rudders, dual turbines or engines. With 26 outputs and up to 12 inputs, your system will always have more than enough outputs.

Vibrant colour touch screen display.
Gone are the days of fiddly buttons and frustrations, no more bind plugs and small screw drivers needed. The vibrant Smart Display gives you feedback and simple programming all in one touch screen display. With intuitive buttons and a single setup design. Your model will be in the air before you know it.

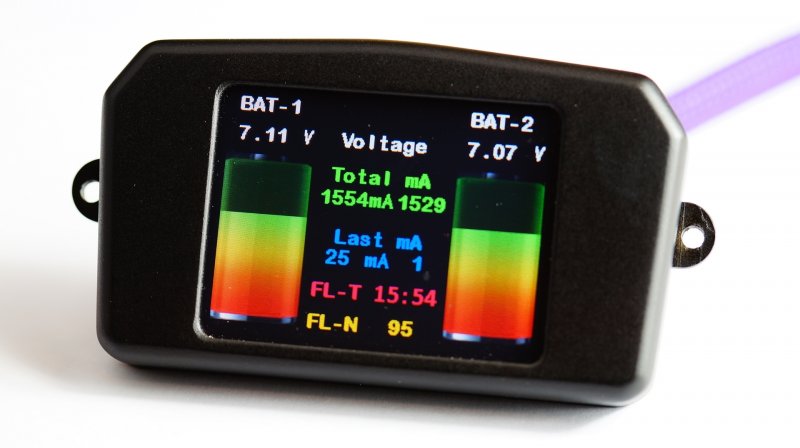

Dual battery redundancy, power management you can trust.
Ever wondered how many flights you have left before a charge, what about the health of your packs. Ensure that your model is safe and ready to fly with our dual battery redundancy technology. Using perfect diode technology, we link the batteries together, giving your model a powerful system capable of more flights before a recharge and with the addition of the Smart Screen you can directly monitor the voltage and milliamps used from you batteries. Models are expensive, ensure yours is in good condition to fly.

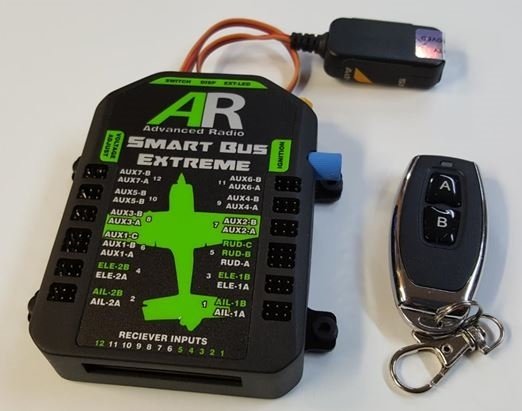

Remote Switch, power at your fingertips.
Imagine being able to power your model with the press of a button on a remote FOB. No more bending down, or removing a pin. No longer do you have to fiddle around with mechanical switches. With the optional AR remote Switch, powering your model is a breeze. By using the same technology that cars have for years. Our short range Remote Switch gives you a wireless key to power your model.

* Works with single or dual battery configuration.
* Works with all battery chemistries. LiFe. LiPo, Lion, NiMh, NiCD.
* Smart Bus is capable of handling input voltages up to 12volts.
* Full Dual Battery Redundancy - If one battery fails the other battery takes full control.
* 2 x 100 amp independent circuits.
* Screen 2.4inch diagonal touch screen with 64k colour
* Screen case dimensions 3.4 x 2.0 x 0.5 inches (86 x 50 x 12)mm
* Smart Bus dimensions 4.2 x 3.0 x 0.9 inches (107 x 78 x 23)mm
*Vibrant Colour touch Screen
*Triple regulator design with dual power regulator 100A FETS or 260A FETS (Extreme 3S version).
*Active regulator cooling for the most demanding applications.
*Multi-match technology

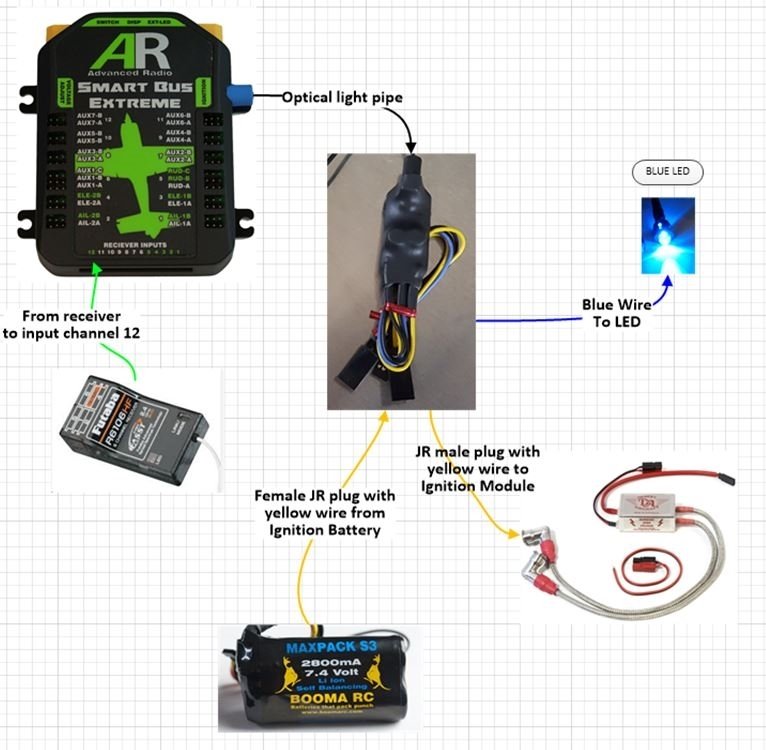

*Optional optical ignition
