Ibcinyou r/c > Engines Gasoline/Nitro > DLE Gas Engines > DLE 55 gasoline aircraft engine

$379.95

DLE 55 gasoline aircraft engine

Brand Spanking New in the box DLE55


Horsepower: 5.5HP/7500rpm
Idle speed: 1350 rpm
Static Thrust
at 100meters:
at 1800meters
31.3lb Pulling Force
27.6lb Pulling Force
Benchmark Prop:
Acceptable Props: 22x8, 22x10, 23x8, 23x10
Displacement: 55.6cc
Bore and Stroke: 43mmx35mm
Compression Ratio: 7.6:1
Weight: Engine - 46.2oz Exhaust - 3.5oz Ignition - 4.2oz
Fuel: 2C Regular Gas mixed 30:1
Ignition Battery: 4.8 to 6.0 Volts >=1200Mah
Replacement Sparkplug: NGK CM6 or equivalent | Gap: 0.018" to 0.020"
Installation Torque: 7 to 8 ft-lbs.

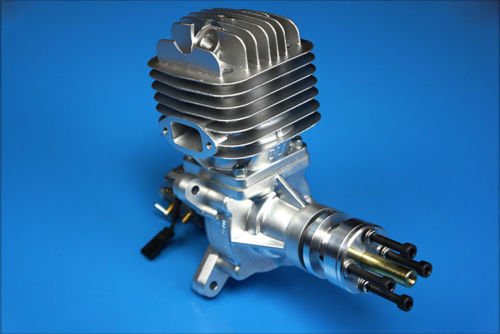

Image 0 of DLE 55 gasoline aircraft engine

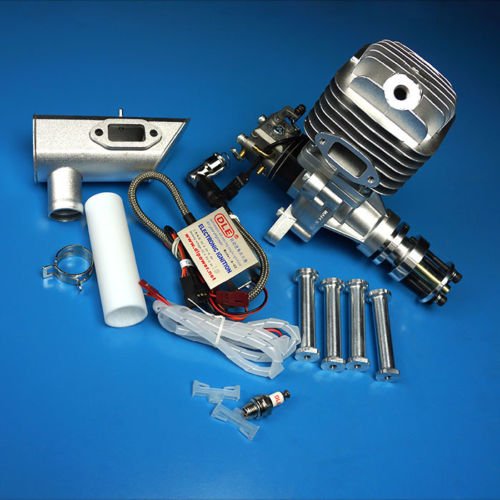

Image 1 of DLE 55 gasoline aircraft engine

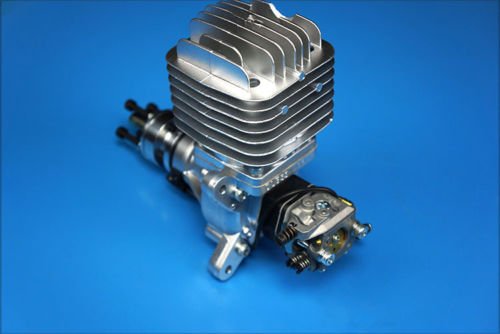

Image 2 of DLE 55 gasoline aircraft engine
