Ibcinyou r/c > Servos: Futaba, JR/DFA, Savox, MKS, Hitec, SWB Products > Hitec Servos > D-840WP 32-Bit, Multi Purpose, Waterproof, Steel Gear Servo

$99.99

D-840WP 32-Bit, Multi Purpose, Waterproof, Steel Gear Servo

Product Description
The steel D-840WP is part of our D-Series servo line. All Hitec D-Series servos have been designed using our brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec's 15 tooth HD output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.

Accessories
Steel Gear Set | Must be serviced by Hitec Service Dept |
Metal / Plastic 1st Gear Set | Must be serviced by Hitec Service Dept |
Plastic / Aluminum Case Set | Must be serviced by Hitec Service Dept |
Applicable Horns

D840WP Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V ~ 7.4V
Speed (Second @ 60) 0.17 ~ 0.14 ~ 0.11
Maximum Torque Range oz. / in. 265 ~ 335 ~ 419
Maximum Torque Range kg. / cm. 19.0 ~ 24.0 ~ 30.0
Current Draw at Idle 30 mA
No Load Operating Current Draw 1,600 mA
Stall Current Draw 9,000 mA
Dead Band Width 2 us
Physical Specifications
Dimensions (Inches) 2.59 x 1.26 x 2.44
Dimensions (Metric) 66 x 32 x 62
Weight (Ounces) 8.0
Weight (Gram) 227.0
Circuit Type Digital Amplifier with Mosfet Drive
Motor Type 5 Poles Cored Metal Brush
Gear Material Steel
Bearing Type Dual Ball Bearing
Output Shaft (type / Omm) Mega 15
Case Material Plastic / Aluminum
Dust / Water Resistance IP 67
Connector Gauge (AWG) / Strand Count 20 / 80

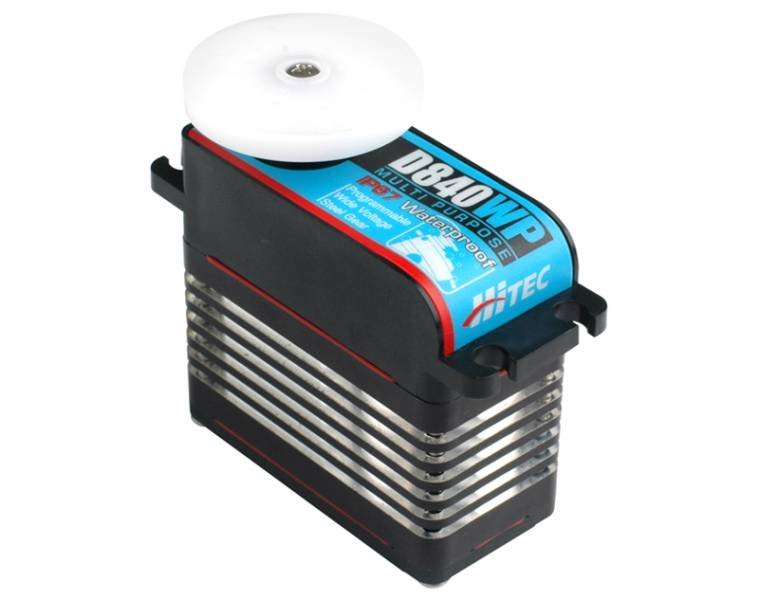

Image 0 of D-840WP 32-Bit, Multi Purpose, Waterproof, Steel Gear Servo
