Ibcinyou r/c > Servos: Futaba, JR/DFA, Savox, MKS, Hitec, SWB Products > MKS Servos > MKS HBL669 (0.04 sec/60 - 70.82 oz/in @7.2V)

$115.00

MKS HBL669 (0.04 sec/60 - 70.82 oz/in @7.2V)

MKS HBL669 (0.04 sec/60 - 70.82 oz/in @7.2V)

HBL669

Details
SKU MKS-HBL669
Dead Band 0.0005ms (Default)
Control System +Pulse Width Control
Working Frequence 760μs / 560hz
Operating Voltage 4.0 ~ 8.4 V DC Volts
Operating Temperature Range -10 to + 60 Degree C
Operating Speed (6V) 0.05 sec/60 degrees at no load
Operating Speed (7.4V) 0.04 sec/60 degrees at no load
Stall Torque (6V) 58.33 oz/in (4.2 kg-cm)
Stall Torque (7.4V) 70.82 oz/in (5.1 kg-cm)
Motor Type Brushless Motor
Potentiometer Drive Indirect Drive
Bearing Type Dual Ball Bearings
Gear Type Chrome-Titanium alloy gear
Connector Wire Length 24.0 cm (9.4 in)
Dimensions 40 x 20 x 40 mm ( 1.57x0.79x1.50 in)
Weight 63 g (2.22 oz)

Entire line of MKS servos are available, please call for more info or details

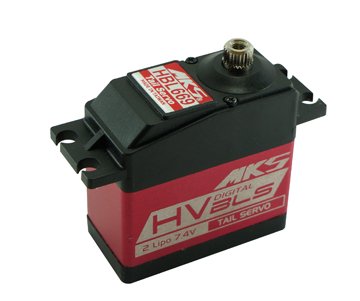

Image 0 of MKS HBL669 (0.04 sec/60 - 70.82 oz/in @7.2V)


Image 1 of MKS HBL669 (0.04 sec/60 - 70.82 oz/in @7.2V)
