Ibcinyou r/c > Servos: Futaba, JR/DFA, Savox, MKS, Hitec, SWB Products > MKS Servos > MKS HBL599 (0.08 sec/60 - 583.27 oz/in @8.2V)

$189.99

MKS HBL599 (0.08 sec/60 - 583.27 oz/in @8.2V)

MKS HBL599 (0.08 sec/60 - 583.27 oz/in @8.2V)

HBL599

Details
SKU MKS-HBL599
Dead Band 0.0008ms (Default)
Control System +Pulse Width Control
Working Frequence 1520μs / 333hz
Operating Voltage 3.5 ~ 8.4 Volts
Operating Temperature Range -10 to + 60 Degree C
Operating Speed (6V) 0.11 sec/60 degrees at no load
Operating Speed (7.4V) 0.09 sec/60 degrees at no load
Operating Speed (8.4V) 0.08 sec/60 degrees at no load
Stall Torque (6V) 416.62 oz/in (30 kg/cm)
Stall Torque (7.4V) 527.72 oz/in (38 kg/cm)
Stall Torque (8.4V) 583.27 oz/in (42 kg/cm)
Motor Type Brushless Motor
Potentiometer Drive Indirect Drive
Bearing Type 12x8 mm Double bearings
Gear Type Chrome-Titanium alloy gear
Connector Wire Length 24.0 cm (9.4 in)
Dimensions 40 x 20 x 38.5 mm
Weight 73.12 g


Entire line of MKS servos are available, please call for more info or details

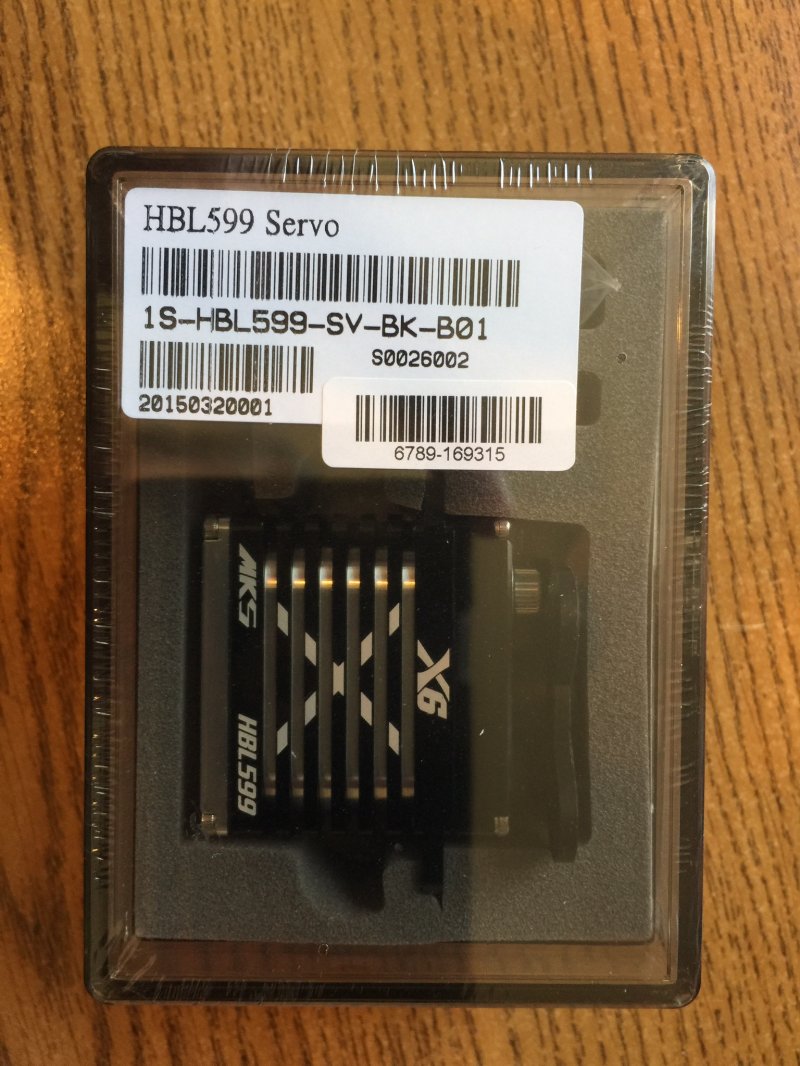

Image 0 of MKS HBL599 (0.08 sec/60 - 583.27 oz/in @8.2V)

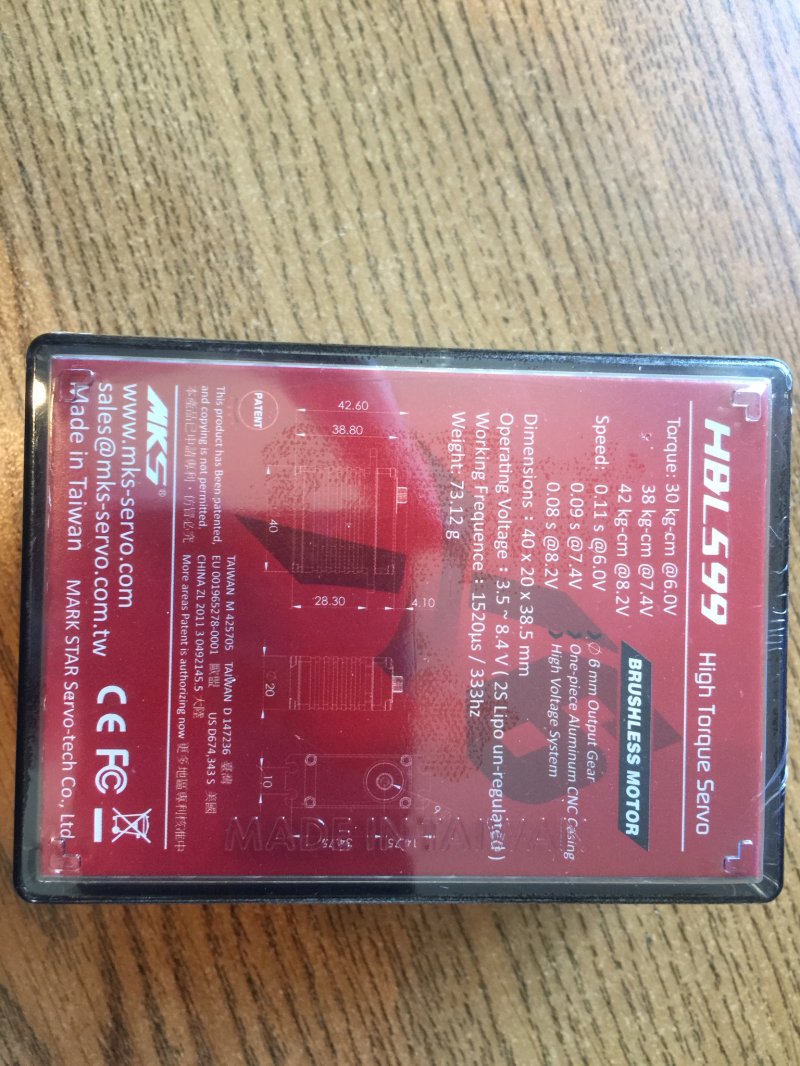

Image 1 of MKS HBL599 (0.08 sec/60 - 583.27 oz/in @8.2V)
