Ibcinyou r/c > Servos: Futaba, JR/DFA, Savox, MKS, Hitec, SWB Products > Savox Servos > Savox 2282SG HIGH VOLTAGE BRUSHLESS DIGITAL SERVO 0.075/319.4 @7.4V

$129.99

Savox 2282SG HIGH VOLTAGE BRUSHLESS DIGITAL SERVO 0.075/319.4 @7.4V

SAVSB2282SG

HIGH VOLTAGE BRUSHLESS DIGITAL SERVO 0.075/319.4 @7.4V

The SB2282SG is a high speed servo running at .075sec transit @ 7.4V with a healthy torque rating of 319.4oz in. This servo is a great choice for your large class heli cyclic.

Features:

Combines leading edge technology with super high 12 bit (4096) resolution and titanium gears.
Super light-weight.
Brushless motor provides longer life and cooler operating temps.
The aluminum case design not only looks good but also allows for cooler and smoother operating temps.
Unique steel gears for increased strength
Our servos are totally green - from materials to production, these servos are environmentally friendly.
This servo is intended for use in large class helis, aircraft and some surface applications.

Dimensions(mm) 40.3 x 20.2 x 38.7
Weight(g): 79.0
Speed @6.0V: .09sec
Torque@6.0V: 236.1 oz-in
Speed @ 7.4V: .075sec
Torque @ 7.4V: 319.4oz-in.
Gear Type: Steel
Bearings: 2 BB
Frequency: 250-333Hz
Pulse Width Frequency: 1520>

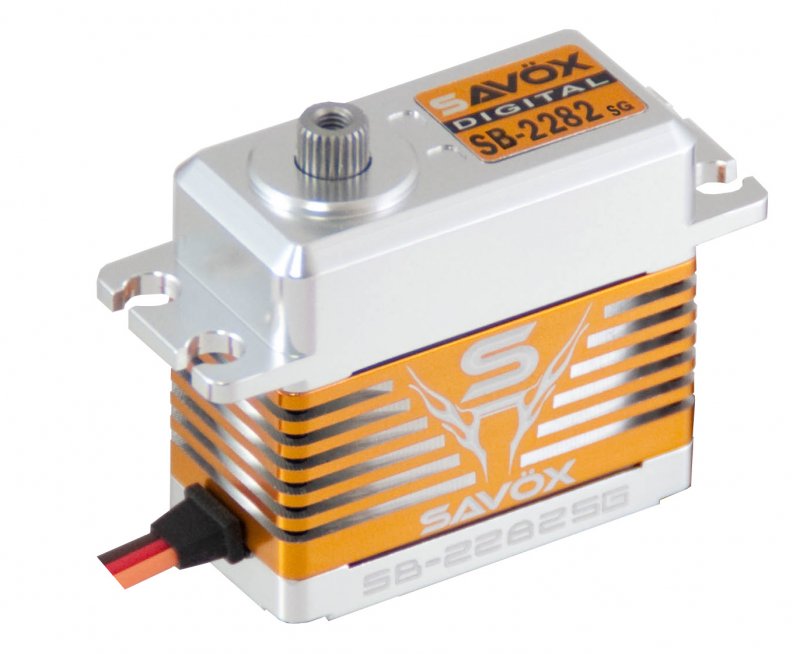

Image 0 of Savox 2282SG HIGH VOLTAGE BRUSHLESS DIGITAL SERVO 0.075/319.4 @7.4V
