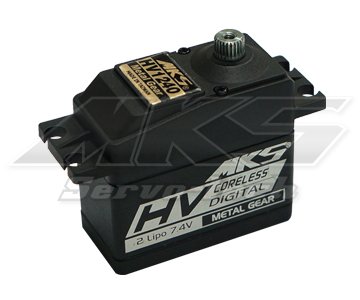

MKS HV1240 (0.069 sec/60 - 14.0 kg-cm (194 oz/in) @8.2V)

MKS HV1240 (0.069 sec/60 - 14.0 kg-cm (194 oz/in) @8.2V)

Details
SKU MKS-HV1240
Dead Band 0.0008ms (Default)
Control System +Pulse Width Control
Working Frequence 1520μs / 333hz
(RX) Required Pulse 3.0~8.4 Volt Peak to Peak Square Wave
Operating Voltage 4.8~8.4 V DC Volts
Operating Temperature Range -10 to + 60 Degree C
Operating Speed (7.4V) 0.077 sec/60 degrees at no load
Operating Speed (8.4V) 0.069 sec/60 dagrees at no load
Stall Torque (7.4V) 13.2 kg-cm (183 oz/in)
Stall Torque (8.4V) 14 kg-cm (194 oz/in)
Motor Type Coreless Motor
Potentiometer Drive Direct Drive
Driver Type FET
Bearing Type Dual Ball Bearings
Gear Type Titanium Gears
Programmable NO
Connector Wire Length 15.0 cm (5.9 in)
Dimensions 40X20X37 mm
Weight 57.70 g ( 2.03oz)

Entire line of MKS servos are available, please call for more info or details
