Ibcinyou r/c > Engines Gasoline/Nitro > Radials, Twins & Single Cylinder 4 Stroke Gasoline Engines > Authentic Scale 1/5 Scale - P&W R-9/2800-200cc Radial

$4,999.00

Temporarily out of stock

Authentic Scale 1/5 Scale - P&W R-9/2800-200cc Radial

Authentic Scale 9 Cylinder GASOLINE Radial 2 year warranty




The iconic Pratt & Whitney (P&W) Company's Radial Engine line is the choice of Authentic Scale for their new line of gasoline radial engines.
Francis Pratt and Amos Whitney found P&W in 1860, to manufacture machine tools and gun making machinery for the Union Army during the American Civil War.

In 1925, Frederick B. Rentschler proposed to P&W the production of his new aircraft engine. This was the beginning of the P&W Aircraft Company, and the first engine was the Wasp, completed in December 1925. It was the beginning of a revolution in American aviation.

Authentic Scale is bringing to market, two scales: 1/5 , and 1/4; of the entire line of P&W radial engines from 3 cylinders (single row) to 28 cylinders (4-rows) with engine displacements from 67 cc up to 900 cc.
With accurate external scale features like the exact fin count, magnet, distributors, oil pump, ignition harness and parts CNC machined from Solid Bar for lightest possible weight, extra long durability and strength. Using materials like steel S4140, Titanium/Nickel/Chromium alloys, aluminum AL7075, Stainless Steel 0.5 mm wall tubing amongst many other features. Unique 2 micro-bearings on EACH rocker arm same as P&W did on their full scale engines.

All radial engines on both scales are designed using the "one part fits all" design concept.

Scale: 1/5
Fuel: Gasoline
CDI Ignition contains, Tach. out, optical kill switch, MSD
Configuration: Radial
Cooling: Air
Cylinders: 9
Displacement: 200 cc (12.2 cu in)
Bore X Stroke: 29 X 32 mm
Compression Ratio: 9.5:1
15 h.p.
Propeller Shaft: 17 mm, splined

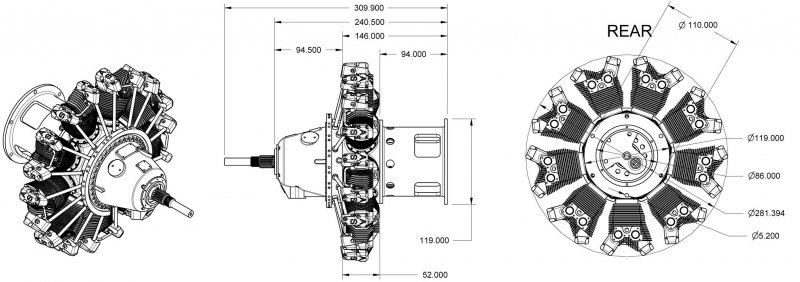

Engine Outside Diameter: 281 mm (11.06")
Weight (w/o blades or hubs): 13 pounds
Carburetor: 1 Zama
Stainless Steel exhaust collector ring with oil injection nipple.
(Optional) Ground adjustable, Hydromatic Prop. Hub, diameter: 750mm

**** Standard Items ****

Warranty: 2 years Parts & Labor
Electronic Ignition with auto-advance, cables and boots
Electric Fuel Pump - 7.2 V

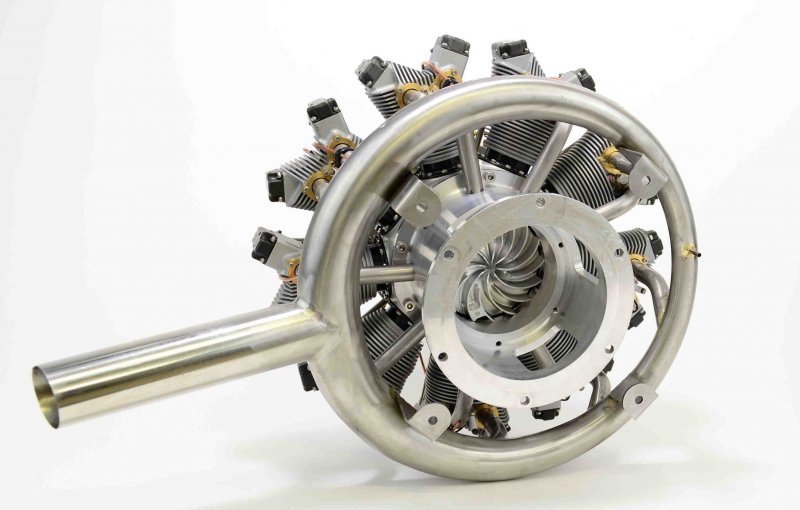

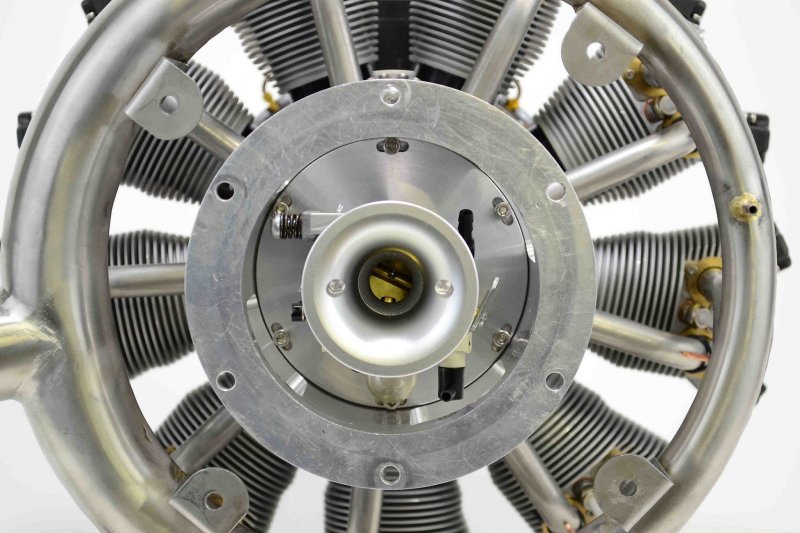

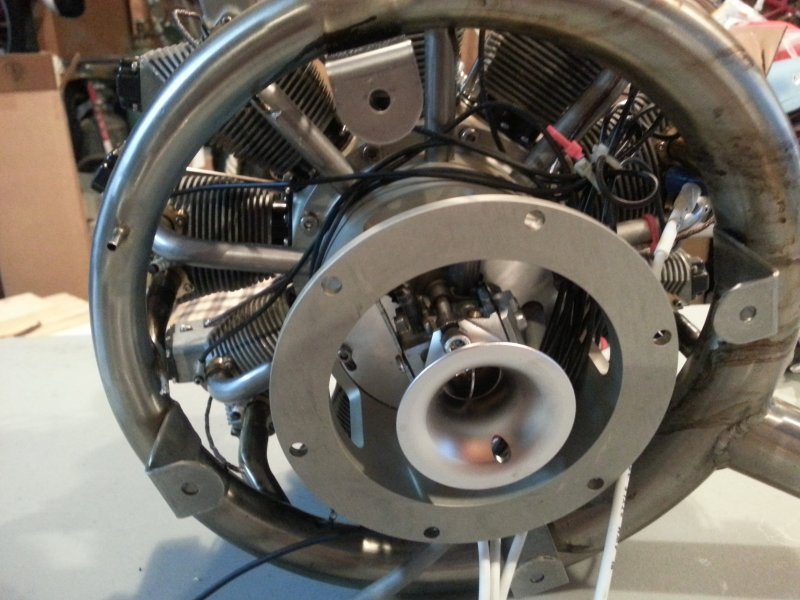

Collector Exhaust Ring: 0.5 mm wall Stainless Steel tubing
Anodizing: Cylinders

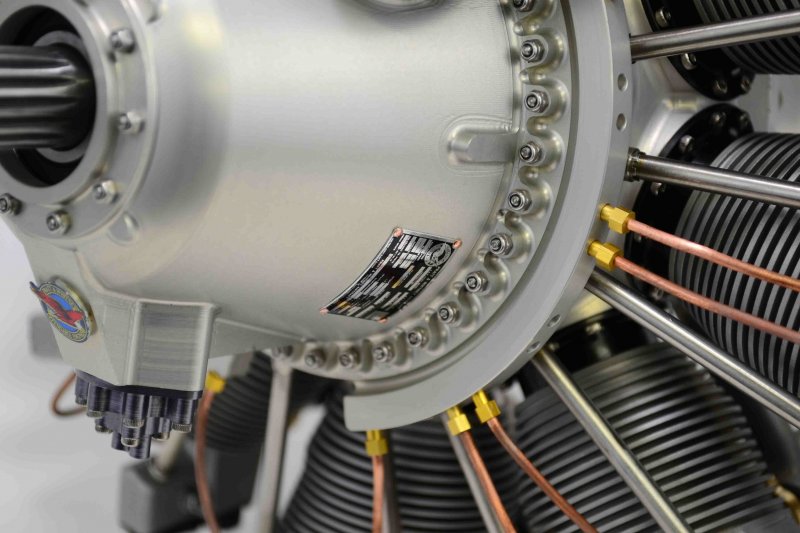

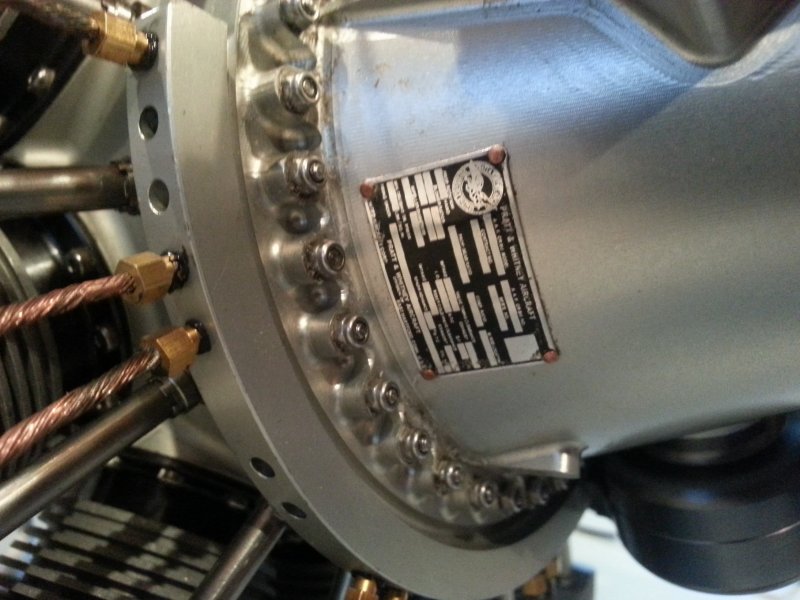

Engine Plate w/complete model engine information

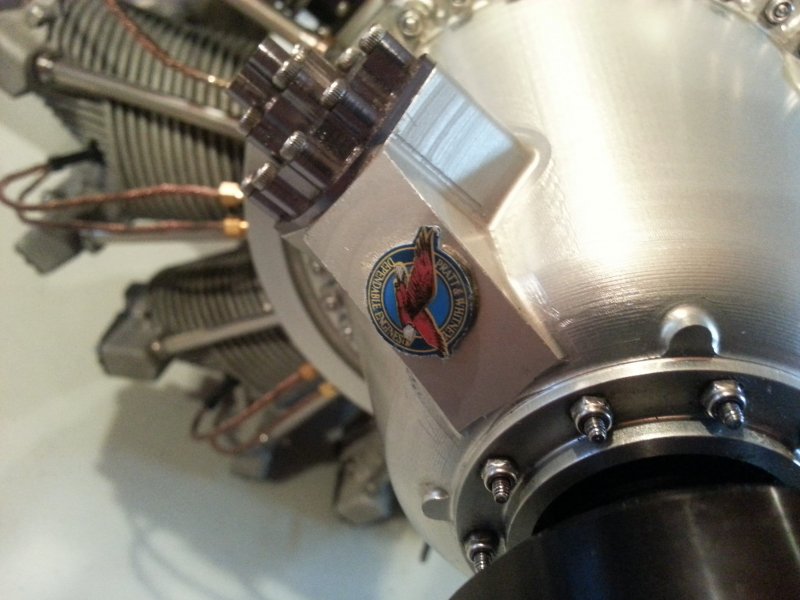

Engine P&W color logo on the nose cone

Exterior dummy features available on
P&W R-9/2800-200 only::
(1) Magnet
(2) Distributors
(1) Oil pump

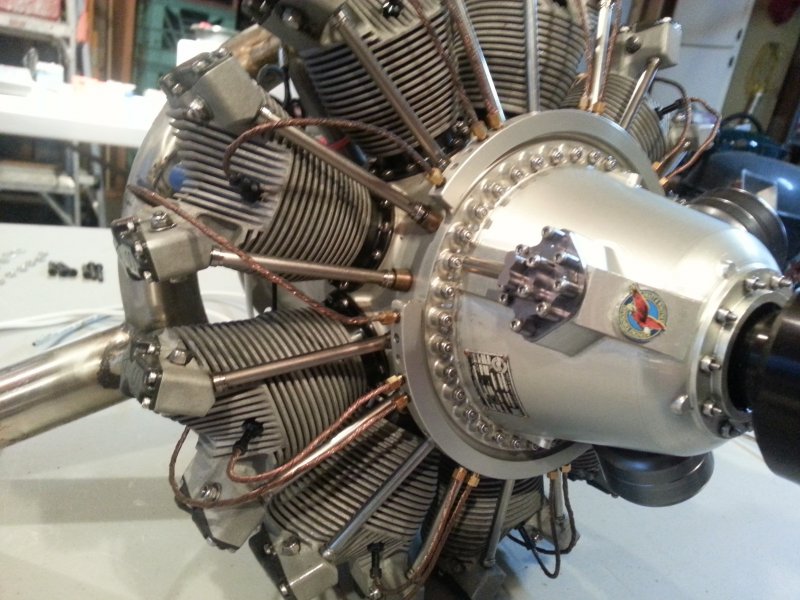

P&W front electrical harness

**** Optional Items ****
Propeller Spinner: 3 or 4 blades, 1/5 and 1/4 scales, ground adjustable

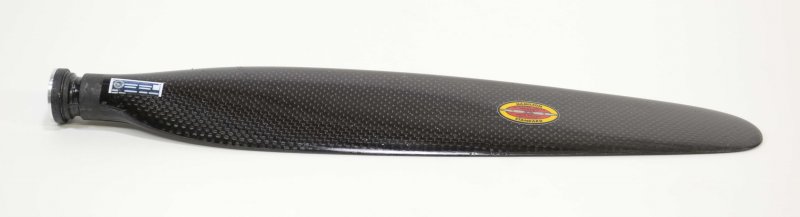

1/5 Scale Paddle type Blade: 750 mm x 64 mm

Price as shown $5500
Add $83.25 for Xoar 32x16 laminated prop
Add $123.50 for Xoar 32x18 laminated prop

$4999 price without dummy Exterior Features

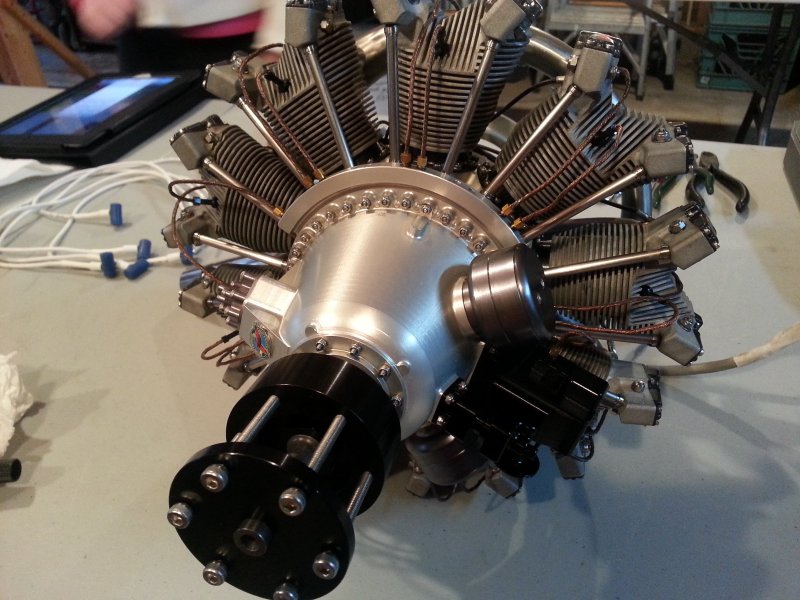

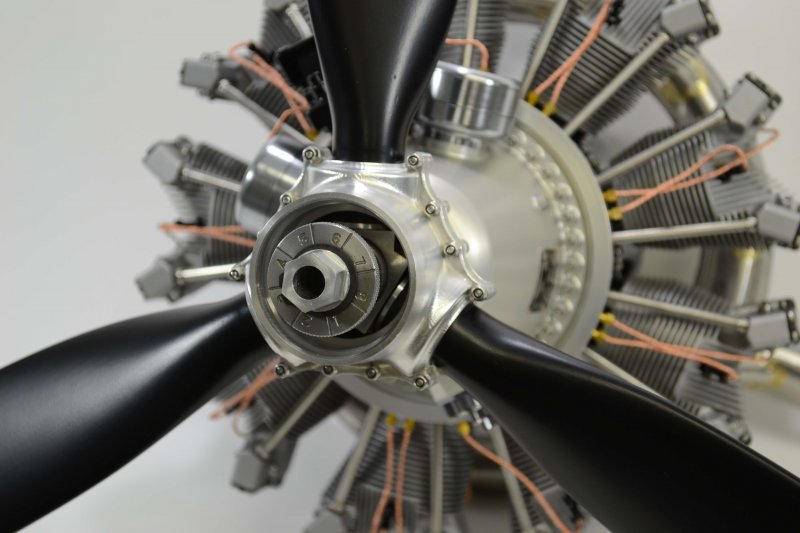

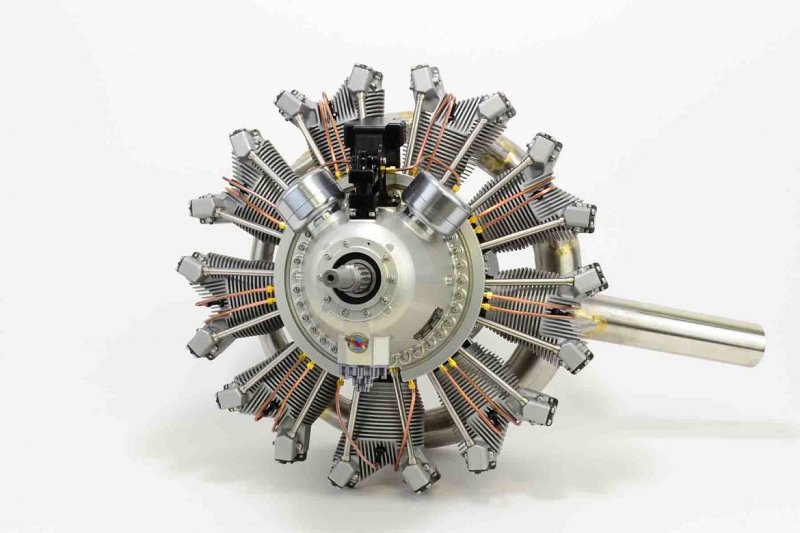

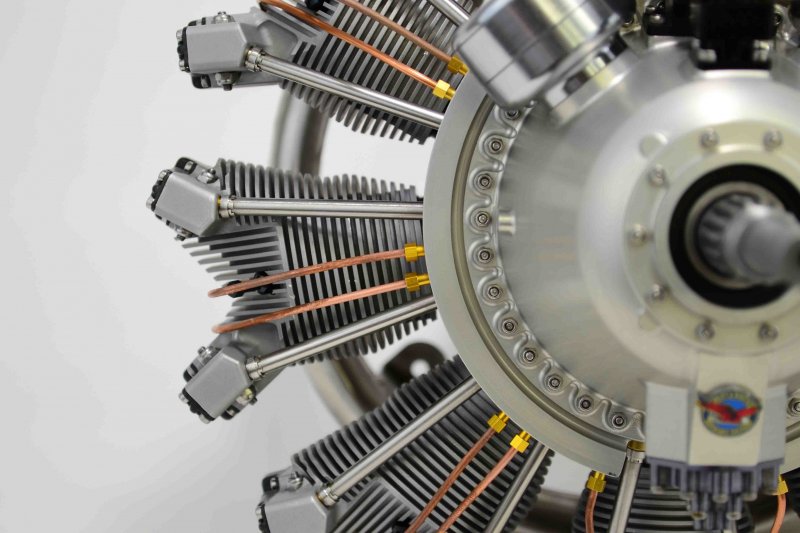

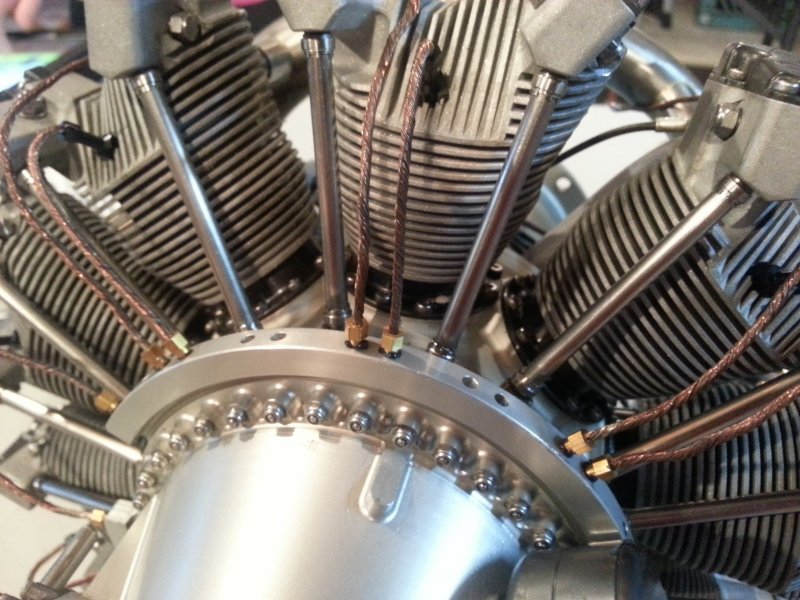

Image 0 of Authentic Scale 1/5 Scale - P&W R-9/2800-200cc  Radial


Image 1 of Authentic Scale 1/5 Scale - P&W R-9/2800-200cc  Radial


Image 2 of Authentic Scale 1/5 Scale - P&W R-9/2800-200cc  Radial


Image 3 of Authentic Scale 1/5 Scale - P&W R-9/2800-200cc  Radial


Image 4 of Authentic Scale 1/5 Scale - P&W R-9/2800-200cc  Radial


Image 5 of Authentic Scale 1/5 Scale - P&W R-9/2800-200cc  Radial


Image 6 of Authentic Scale 1/5 Scale - P&W R-9/2800-200cc  Radial


Image 7 of Authentic Scale 1/5 Scale - P&W R-9/2800-200cc  Radial


Image 8 of Authentic Scale 1/5 Scale - P&W R-9/2800-200cc  Radial


Image 9 of Authentic Scale 1/5 Scale - P&W R-9/2800-200cc  Radial


Image 10 of Authentic Scale 1/5 Scale - P&W R-9/2800-200cc  Radial


Image 11 of Authentic Scale 1/5 Scale - P&W R-9/2800-200cc  Radial


Image 12 of Authentic Scale 1/5 Scale - P&W R-9/2800-200cc  Radial


Image 13 of Authentic Scale 1/5 Scale - P&W R-9/2800-200cc  Radial
