JR Infinity XBus Dedicated DMSS Receiver

Overview

JR - JRPR03429 - Infinity XBus Dedicated DMSS Receiver

Introducing the world's first clean sheet of paper receiver designed exclusively for serial applications, RG031BX Infinity. This receiver is named so because the number of channels it can support is limited only to the number of channels you can control with your transmitter. At a diminutive seven grams, this receiver is barely larger than its remote antennas, but has infinite possibilities.

The Infinity receiver is designed exclusively for use with XBus systems, so the only two ports on the face of it support the XBus link and telemetry sensor input. Power demands are handled through the XBus-dedicated hubs and are customizable based on your needs with your chosen XBus dedicated hub. Path diversity is ensured by the use of three RA01TL remote antennas, so you’re sure to have a completely solid link, no matter what type of aircraft you fly and thanks to the robust DMSS RF link, you are guarded against interference from other radios turned on within range of your aircraft.

Compact, elegant, and powerful. The Infinity receiver is sure to change the way you view aircraft setup forever.



Features

The world's first serial bus-specific receiver
No set number of channels, available channels are limited
only to your those your transmitter has
Tiny (7g) design
Includes 1 RA01TL and 2 RA01L remote antennas
Simultaneous output of signals across all channels
Cross-modulation restricted; robust DMSS link is highly resistant to noise from FHSS or DSSS modulation
transmitters and other RF noise
Failsafe support on all channels
Status condition LEDs
Supports real-time telemetry data

Specs

Type: Full-range receiver
Channels Count: Unlimited
Modulation: DMSS (Dual Modulation Spread Spectrum)
Band: 2.4GHz
Case Type: Hard plastic
Length: 1.32 in (33.5mm)
Width: 1.18 in (30.0mm)
Height: 0.37 in (9.5mm)
Weight: 0.25 oz (7 g)
Voltage Range: 4.0-8.5V

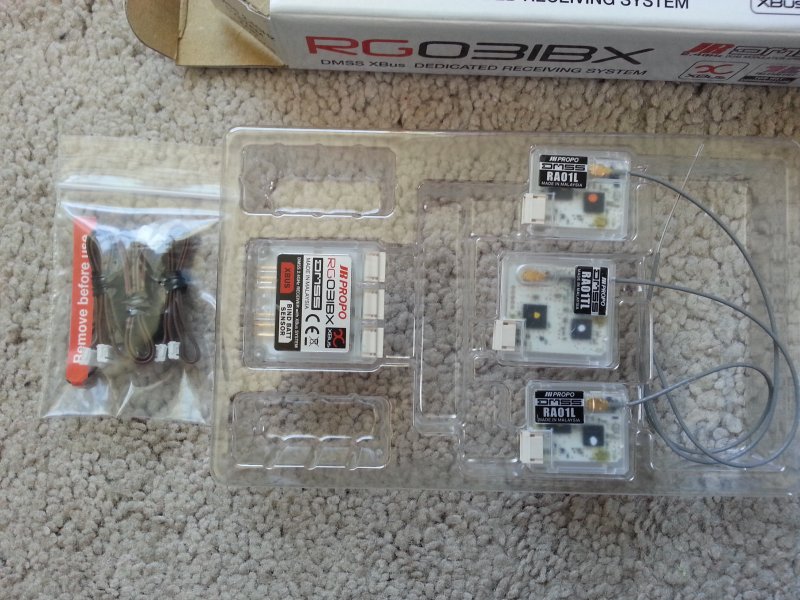

Includes
Infinity receiver main unit (1)
RA01T remote/telemetry antenna (1)
RA01TL remote/telemetry antenna (2)
RG cable, 150mm (1)
Bind plug (1)
Operating guide
