Ibcinyou r/c > Servos: Futaba, JR/DFA, Savox, MKS, Hitec, SWB Products > MKS Servos > MKS DS1210 (0.12 sec/60 - 10 kg-cm (138.87 oz/in) @6V)

$35.95

MKS DS1210 (0.12 sec/60 - 10 kg-cm (138.87 oz/in) @6V)

MKS DS1210 138 oz 6v

MKS DS1210 (0.12 sec/60 - 10 kg-cm (138.87 oz/in) @6V)



SKU RC-MKS-DS1210
Dead Band 0.002ms (Default)
Control System +Pulse Width Control
Working Frequence 120Hz
(RX) Required Pulse 3.0-5.0 Volt Peak to Peak Square Wave
Operating Voltage 4.8-6.0 V DC Volts
Operating Temperature Range -10 to + 60 Degree C
Operating Speed (4.8V) 0.15 sec/60 degrees at no load
Operating Speed (6V) 0.12 sec/60 dagrees at no load
Stall Torque (4.8V) 8.05 kg-cm (111.79 oz/in)
Stall Torque (6V) 10 kg-cm (138.87 oz/in)
360 Modifiable NO
Motor Type DC Motor
Potentiometer Drive Direct Drive
Driver Type FET
Bearing Type Dual Ball Bearings
Gear Type metal gear
Programmable NO
Connector Wire Length 15.0 cm (5.9 in)
Dimensions 40X20X40.30 mm (1.5748X0.7874X1.58 in)
Weight 56 g (1.97 oz)


Entire line of MKS servos are available, please call for more info or details

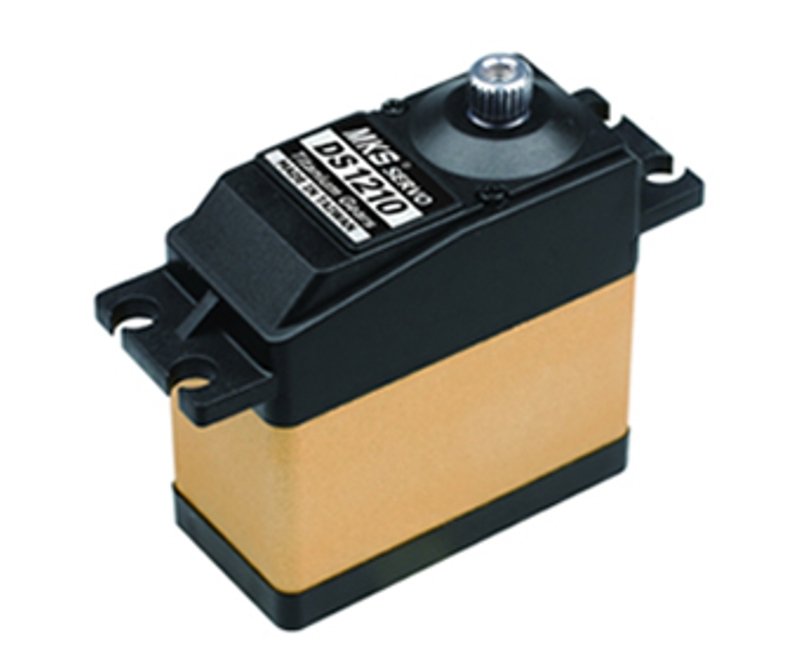

Image 0 of MKS DS1210 (0.12 sec/60 - 10 kg-cm (138.87 oz/in) @6V)
