Ibcinyou r/c > Engines Gasoline/Nitro > NGH GT Series Gas Engines > NGH GT25cc gas engine


Temporarily out of stock

NGH GT25cc gas engine

FREE US shipping

NGH GT 25B Engine. An easy to mount beam design. The exhaust discharge can be rotated 360 degrees to accommodate any model.

Engine Type - Gasoline Two-stroke, Air Cooled, Rotary Valve
Cylinder Type - Precision Steel Sleeve
Cylinders - Single
Crank Type - Forged Dual Ball Bearing Support
Mounting Type - Beam or Rail Mount
Carburetor Type - Walbro WT Series
Carburetor Mounting - Front
Mounting Dimensions - Owners Manual or Website
Ignition: RCEXL 1/4-32 90 Degree Single Cylinder
Spark Plug Type - 1/4" X 32 TPI
Displacement - 25cc
Bore - 33.2 mm
Stroke - 29 mm
Crankshaft Threads - 5/16" X 24 TPI
Engine+ Muffler+ Ignition (Total Weight) = 2 lb. 2 oz. (960g)
Prop Range - 15X10, 16X8, 16X10
RPM Range - 1,600 - 11,000 RPM
Fuel - Unleaded Gasoline With High-Quality Two-Cycle Oil, Pre- Mixed
Pre-Mix Oil Ratio and Type - Full Synthetic; Break-in with 20:1, General 25:1 For Air Cooled Engines
Maximum Power: 2.7 Hp @ 11KRPM

The engine comes complete with everything shown in the picture; engine, muffler, RCEXL CDI ignition, spark plug, and a one year USA warranty. Our engines have individualized serial numbers from the factory.

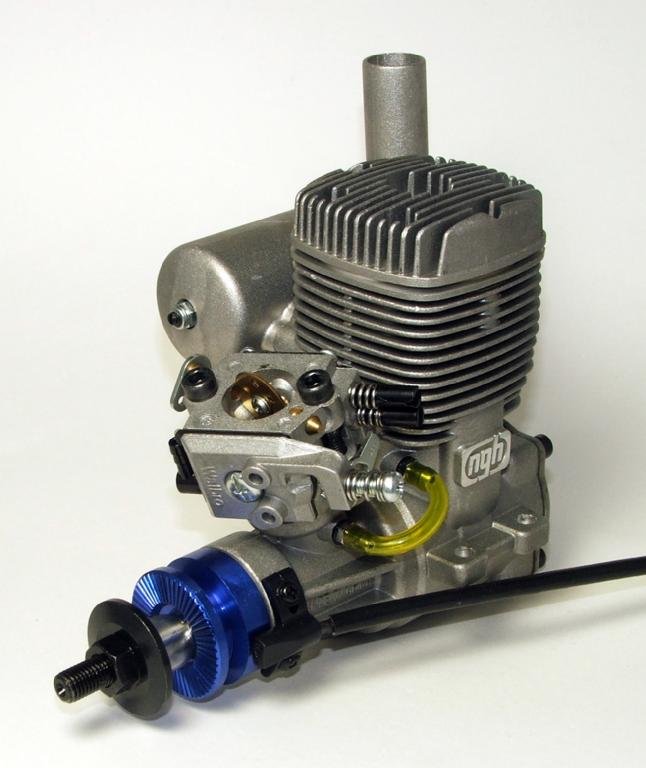

Image 0 of NGH GT25cc gas engine

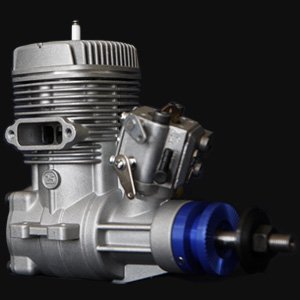

Image 1 of NGH GT25cc gas engine

Image 2 of NGH GT25cc gas engine

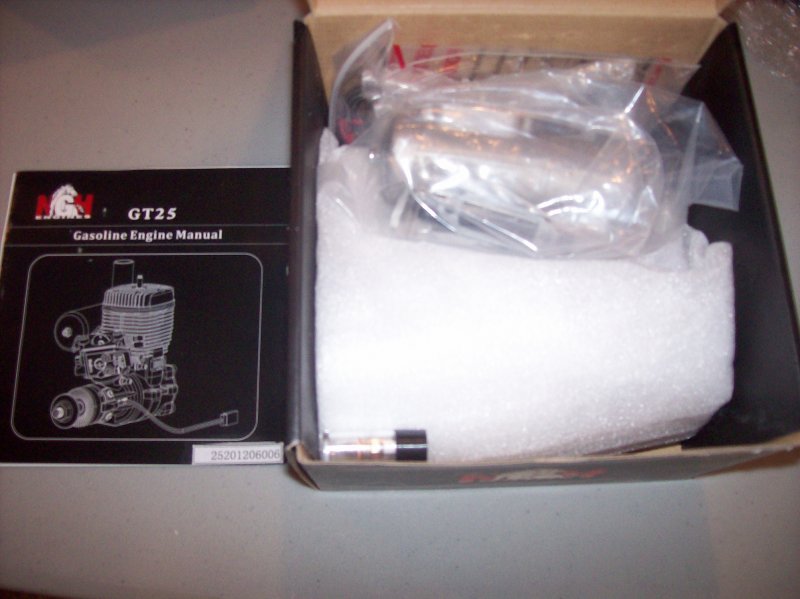

Image 3 of NGH GT25cc gas engine
