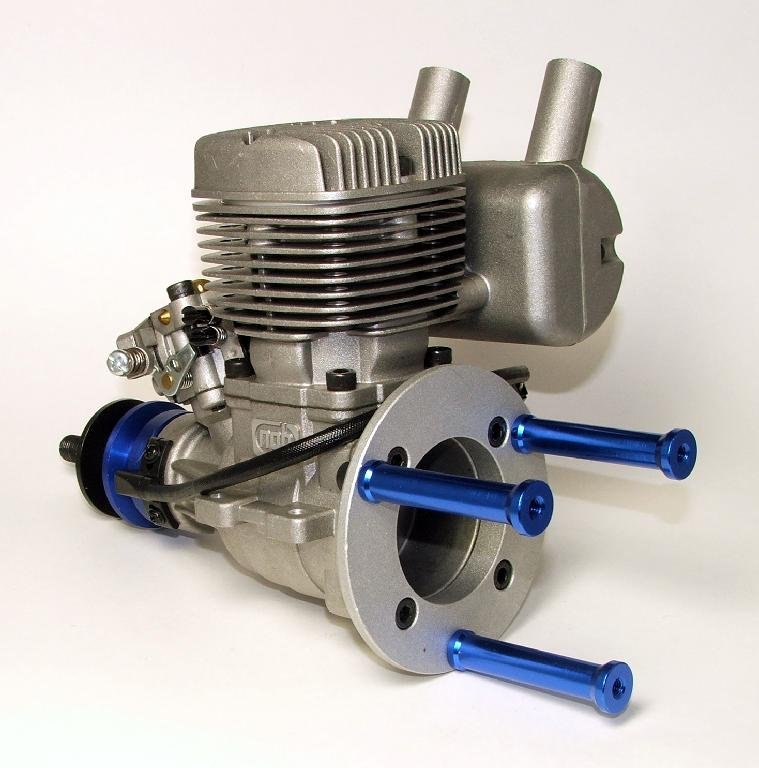

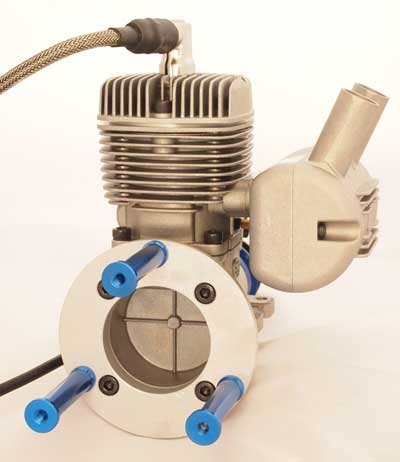

The new NGH GT 35 Engine is a unique engine for two reasons; it is convertible from side to rear exhaust and can be beam mounted or radial mounted using standoffs.

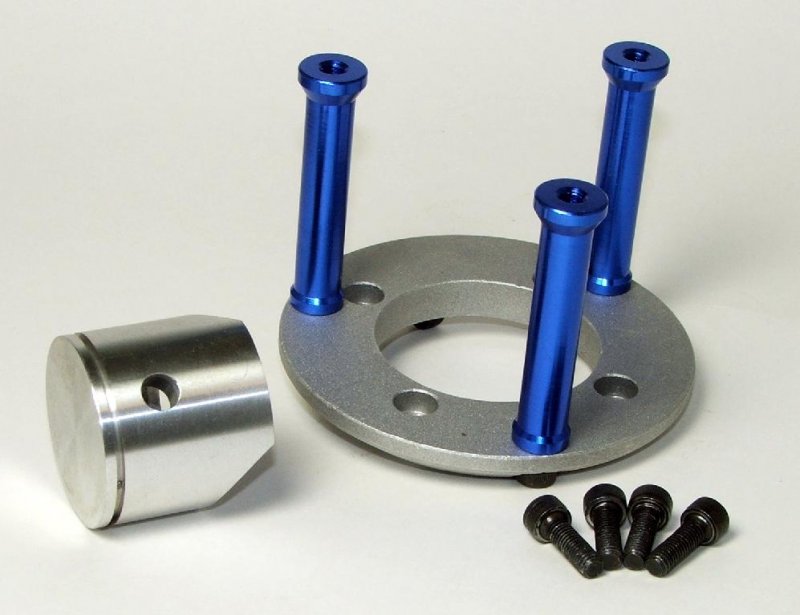

The radial mount and standoffs allow mounting on a 75 mm bolt circle (about 2", 15/16"). 75mm mounting template included.
Specifications:
Engine Type - Gasoline Two-stroke, Air Cooled, Rotary Valve
Cylinder Type - Precision Steel Sleeve
Cylinders - Single
Crank Type - Forged Dual Ball Bearing Support
Mounting Type - Beam or Rail Mount, Radial Mount with Standoffs
Carburetor Type - Walbro WT Series
Carburetor Mounting - Front

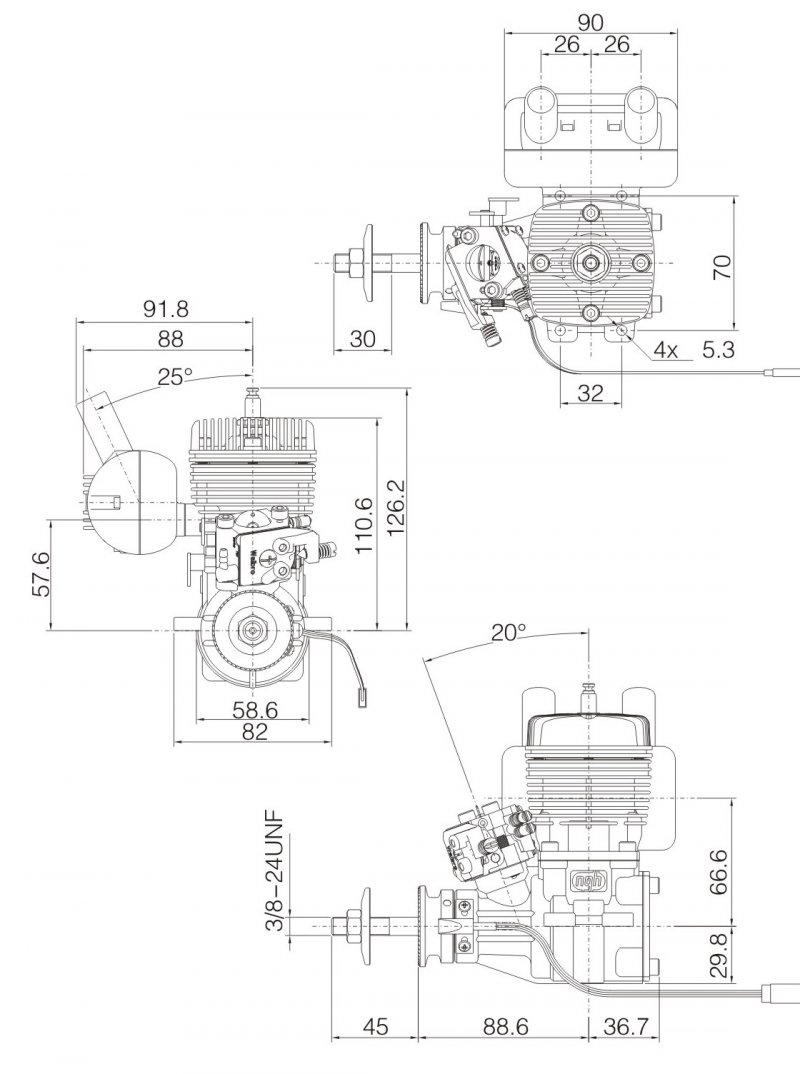

Mounting Dimensions - Owners Manual or Website
Spark Plug Type - CM-6
Displacement - 35cc
Bore - 37.3 mm
Stroke - 32 mm
Crankshaft Threads - 3/8" X 24 TPI
Engine+ Muffler+ Ignition (Total Weight) = 3 lb, 1 oz.
Prop Range - 18X8, 18X10, 20X8
RPM Range - 2000-9000 RPM
Fuel - Unleaded Gasoline With High-Quality Two-Cycle Oil, Pre- Mixed
Pre-Mix Oil Ratio and Type - Synthetic; Break-in with 20:1, General 25:1 Premix For Air Cooled Engines

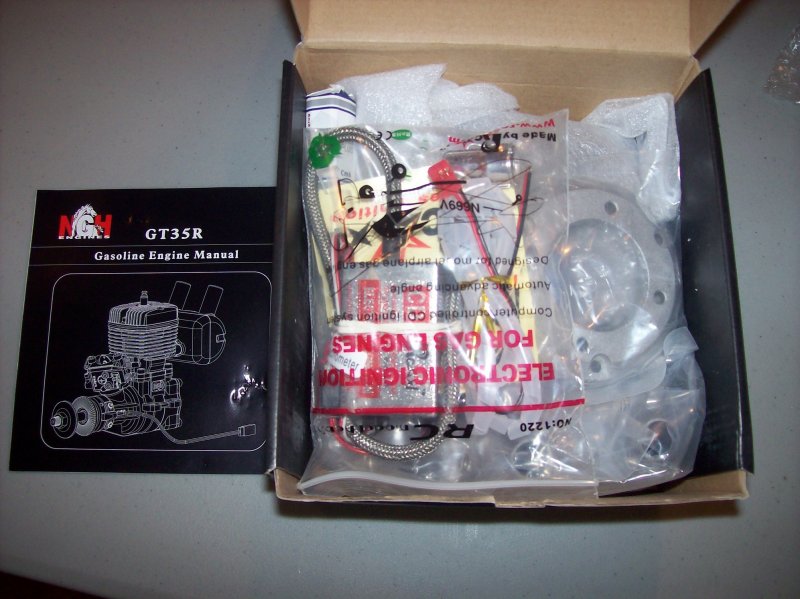

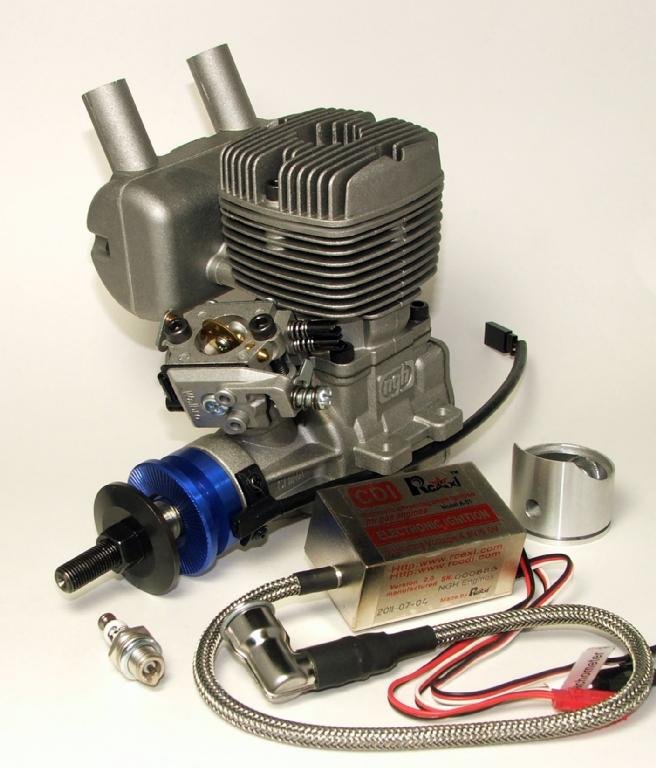

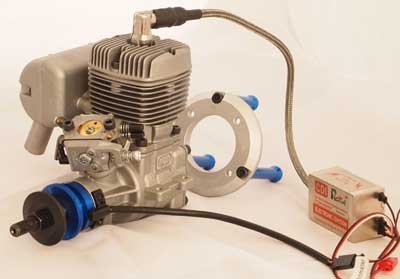

The engine comes complete with everything shown in the pictures; engine, muffler, CDI ignition, spark plug, radial mount, standoffs, and a one year USA warranty. Our engines have individualized serial numbers from the factory.
|
