RDS8000 8 CH 2.4G RADIO MODE2 W/ 1-TX / 1-RX ONLY

Airtronics RDS8000 8-Channel 2.4GHz FHSS-1 Aircraft Radio

The RDS8000 is a full-featured 8-Channel 2.4HGz FHSS-1 Digital Proportional radio control system, packed with capabilities for all types of aircraft and helictopers. A top-quality digital radio, the RDS8000 is noted for its ease-of-operation and programming. Fixed wing, sailplane and helicopter pilots will all benefit when using the programming features the RDS8000 offers.

Whether flying a basic model or one that requires advanced features, the RDS8000 can do it all! One of the key features of the RDS8000 is the ability to use both basic or advanced program menu. The RDS8000 makes programming easier by allowing you to turn off any programming screen not required, and because it uses Airtronics' 2.4GHz FHSS-1 frequency modulation, you never have to worry about an 'open frequency'. Fly without frequency control any time with confidence.

The RDS8000 features a Trainer System that is compatible with Airtronics RD, RDS and VG series transmitters.

General System Features:

8-Channel 2.4GHz FHSS-1 Digital Proportional Computer Radio Control System for Aircraft and Helicopters

Includes 92824 8-Channel 2.4GHz FHSS-1 Receiver

Model Type Selection

10 Model Memory

Model Naming (3 Characters)

Data Reset and Data Copy

Stop Watch

Digital Trims

Servo Reversing

End Point Adjustment

Servo Sub-Trim

2 Compensation Mixers

LCD with Voltage Indicator and Low Voltage Alarm

Integral System Timer

Click Audio Tones

Dual Rate Alarm

Adjustable Stick Tension and Length

Switch Reversing

8 Cell Ni-Cd Transmitter Battery

Trainer System

Aircraft-Specific Programming Features:

Exponential

Dual Rate (Elevator and Aileron)

Digital Trim Memory

Trim Authority (STEP) for Digital Trim

Flaperon and Spoileron Mixing

Elevon (Delta) Mixing

V-Tail Mixing

Throttle Cut

Dual Elevator Mixing

Aileron Mixing

Landing Differential

Crow Mixing

Flap to Elevator Mixing, Throttle to Elevator Mixing and Rudder to Aileron Mixing

Aileron to Rudder Mixing, Rudder to Elevator Mixing and Elevator to Flap Mixing

Helicopter-Specific Programming Features:

Exponential

Dual Rate (Elevator, Aileron and Rudder)

Four Flight Modes

5-Point Throttle Curve (All Flight Modes)

5-Point Pitch Curve (All Flight Modes)

3-Point Revo Mixing (All Flight Modes)

Remote Gyro Control

Throttle Cut

Swash Plate Type Selection

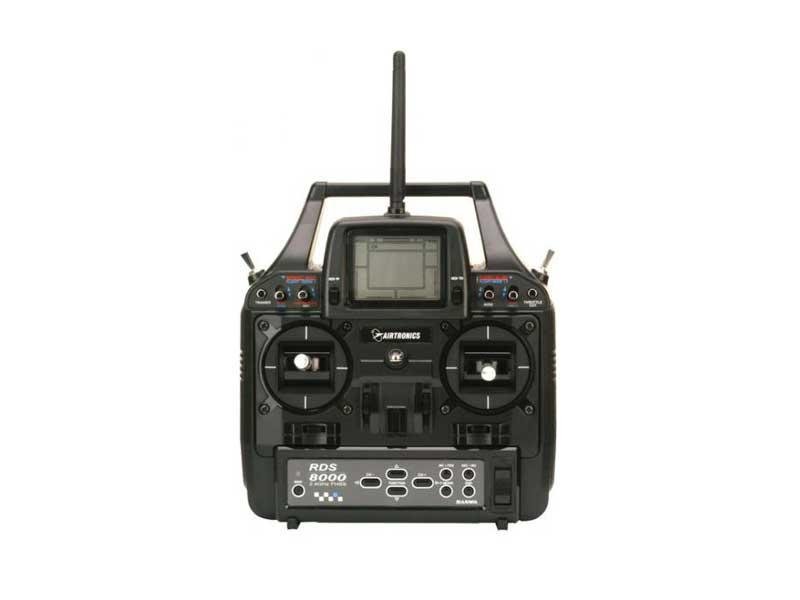

Transmitter Specifications:

Output Power: 90mW

Current Drain: 180mA

Temperature Range: 0 - 160 F

Pulse Width: 1.5msec

Weight with Batteries: 27.0oz (765gr)

Frequency/Modulation Type: 2.4GHz/FHSS-1

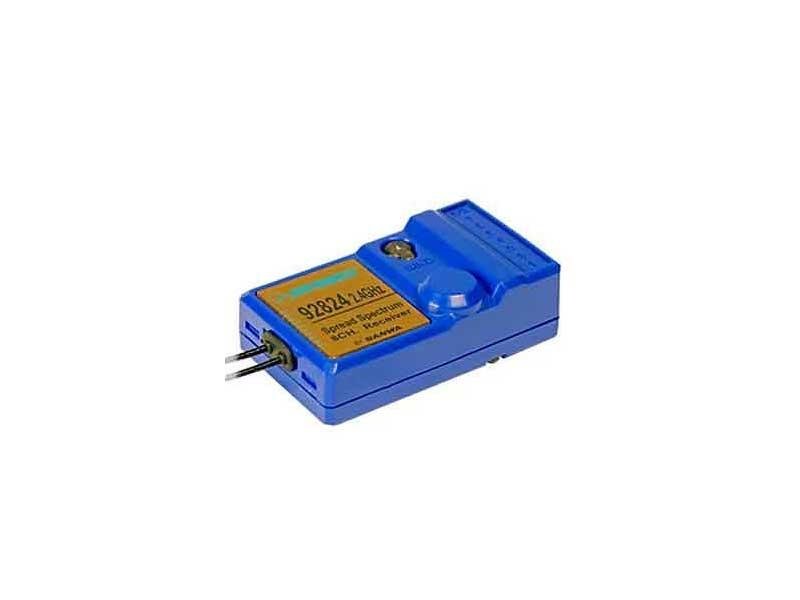

92824 Receiver Specifications:

Frequency/Modulation Type: 2.4GHz/FHSS-1

Nominal Input Voltage: 4.8v ~ 6.6v

Weight: 0.33oz (9.0gr) with Case

Dimensions: 1.85 x 1.08 x 0.60in (47 x 27.5 x 15.2mm)

Fail Safe Support: Yes (CH 1 ~ CH 4)

Connector Type: Universal 'Z'

What's In The Box:

RDS8000 8-Channel 2.4GHz FHSS-1 Transmitter

92824 8-Channel 2.4GHz FHSS-1 Receiver

8 Cell Transmitter Battery Pack

AC Dual Output Overnight Charger

On/Off Switch

User's Guide

Items Required, But Not Included:

Receiver Battery: The receiver's Nominal Input Voltage is 4.8v ~ 6.6v, therefore, the receiver can be powered using a 4 Cell or 5 Cell Ni-Cd or Ni-MH battery pack or a 2S Li-Fe/A123 Battery Pack. DO NOT USE A 2S Li-Po!

Servos: No servos are included. Analog or Digital servos can be used. We recommend using Airtronics servos that are within the specification range required for your model.
