Ibcinyou r/c > Hacker-Motors / Castle ESC / Himax Motors /Graupner Chargers > Fromeco Scale Avionics > Iron Corps Extreme 4600 with On Board Balancer installed

$110.00

Temporarily out of stock

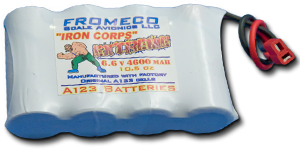

Iron Corps Extreme 4600 with On Board Balancer installed

Iron Corps Extreme 4600 with On Board Balancer installed

Application

Recommended Use

Anything that needs a Ton of Amperage

Charging Specs

Chemistry Type LiFePO4

Max Charge Rate 10 amps

Number of Cells 4

Connector Specs

Connector Type Deans

Electrical Specs

Capacity 4600mA

Max Amperage Tested by Fromeco 120 amps

Max Voltage 7.2VDC

Operating Voltage 6.6VDC

Usable Capacity 4300mA

On Board Balancer

Has Balancer Installed Internally to Pack

YES (only configuration sold by Fromeco)

Size/Mass

Height inches 1 1/16th

Length inches 4.25

Mass ounces 11.0

Width inches 2 5/8th

Sourcing

Manufacturer

A123 Assembled by Fromeco

The Iron Corps Extreme A123Racing is assembled by Fromeco using the Legendary A123Racing M1 high out put 26650 cell. Capable if ridiculous amounts of current from one single pack, the Iron Corps Extreme is an excellent choice for 40% and above size Aircraft. Iron Corps extreme packs are also a great choice 35% aircraft as well.

Fromeco uses 1/2" .5 solid Nickel weld tabs that are welded by Fromeco, to ensure maximum current flow and balance in a 2S pack.
