Ibcinyou r/c > Servos: Futaba, JR/DFA, Savox, MKS, Hitec, SWB Products > Hitec Servos > HS-7955TG High Torque Titanium Gear Coreless Servo

$139.99

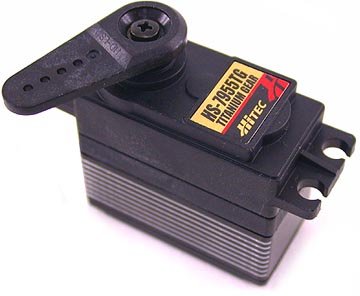

HS-7955TG High Torque Titanium Gear Coreless Servo

Servos are supplied with UNIVERSAL connectors which are compatible with all name-brand systems.

Product Description

Hitec's best servo just got better. Based on the powerhouse HS-5955TG servo the HS-7955TG has the added benefit of our G2 second generation programmable digital circuit. This new circuit has twice the resolution of our original circuit while adding programmable overload protection. The HS-7955TG has been designed for the most demanding hobby applications including the largest aircraft and monster trucks. Featuring a titanic 333 oz./in. of torque at 6.0 volts, all this power is harnessed by incorporating the industries first Titanium gears for incredible wear resistance and two strong hardened steel gear pins and axial brass bushing in the servo case.

Features

G2 Digital Circuit
Coreless Motor
Dual Ball Bearing Supported Output Shaft
Titanium Gear Train (MK first gear)

Programmable Functions

End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Overload Protection
Resolution
Data Save / Load
Program Reset

HS-7955TG Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.19 ~ 0.15
Maximum Torque Range oz. / in. 250 ~ 333
Maximum Torque Range kg. / cm. 18.0 ~ 24.0
Current Draw at Idle 9 mA
No Load Operating Current Draw 300 mA
Stall Current Draw 4,200 mA
Dead Band Width 1 µs
Physical Specifications
Dimensions (Inches) 1.57 x 0.78 x 1.45
Dimensions (Metric) 40.0 x 20.0 x 37.0
Weight (Ounces) 2.29
Weight (Gram) 65.0
Circuit Type G2 Programable Digital
Motor Type Coreless Metal Brush
Gear Material Titanium
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic / Aluminum
Dust / Water Resistance Splash Proof
Connector Gauge (AWG) / Strand Count 22 / 60
Radio Control Applications
Parkflyer N / A
Sport Plane 30 - 40%
Sailplane 2 meters and up
3D Performance 30 - 40%
Scale 30 - 40%
Electric Helicopter 700mm and up
Gas Helicopter 90+ Class
On Road 1/8th
Monster Truck 1/8th
Buggies 1/8th
Truggies 1/8th
Short Course / Truck 1/8th
Crawlers N / A
Sail Boat = >1M & Scale
Power Boat 1/10th

Image 0 of HS-7955TG High Torque Titanium Gear Coreless Servo


Image 1 of HS-7955TG High Torque Titanium Gear Coreless Servo


Image 2 of HS-7955TG High Torque Titanium Gear Coreless Servo


Image 3 of HS-7955TG High Torque Titanium Gear Coreless Servo


Image 4 of HS-7955TG High Torque Titanium Gear Coreless Servo


Image 5 of HS-7955TG High Torque Titanium Gear Coreless Servo
