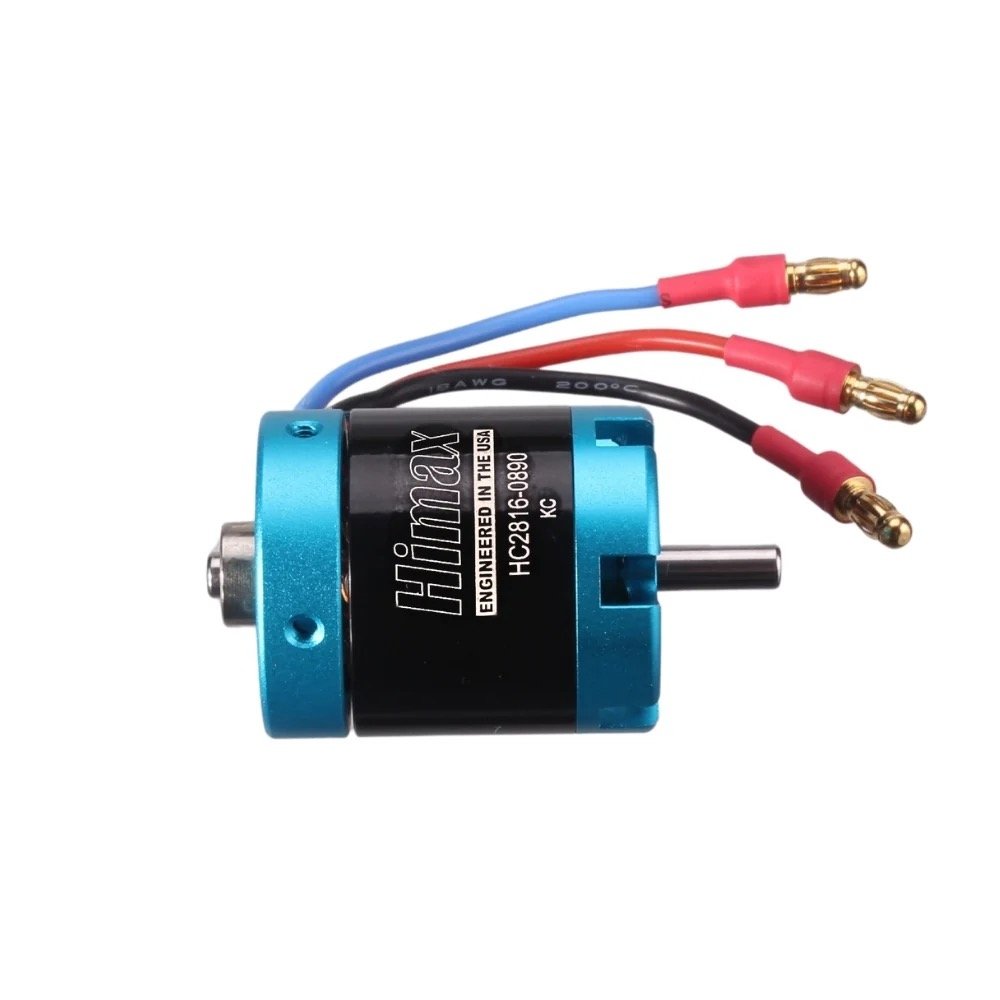

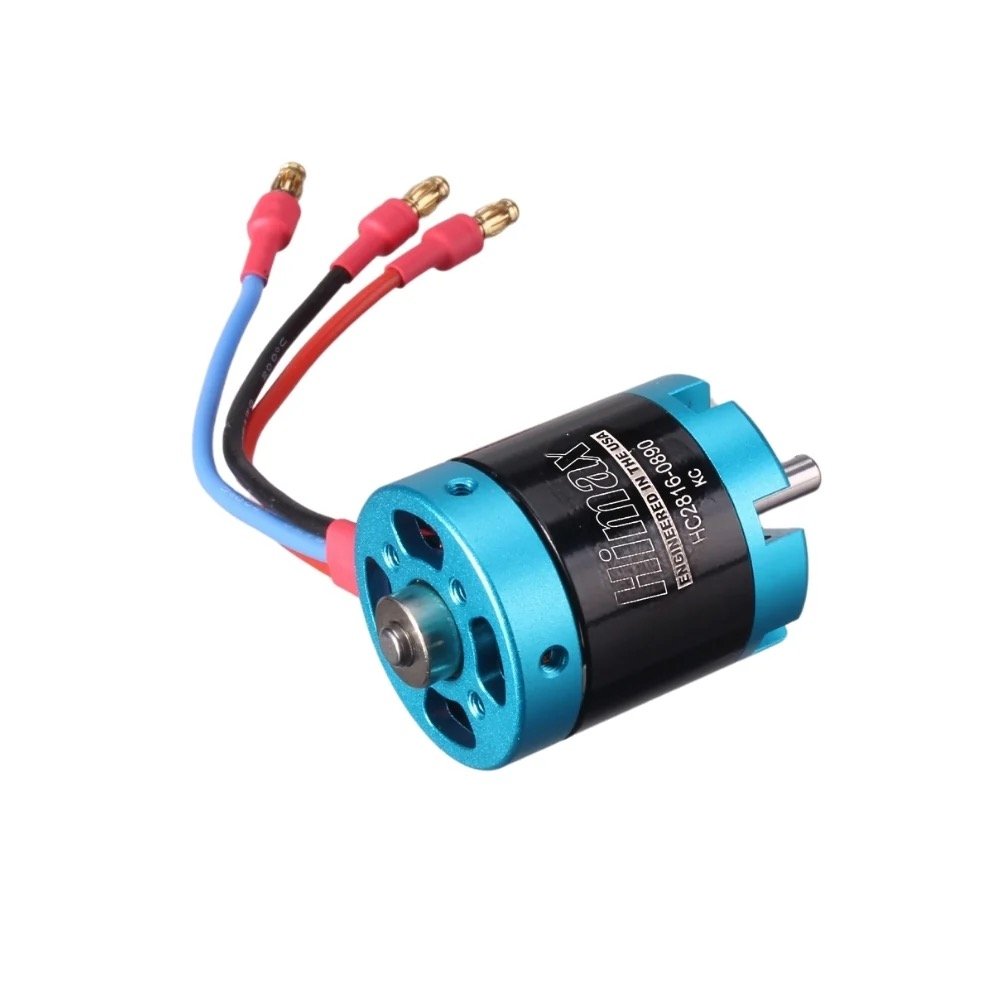

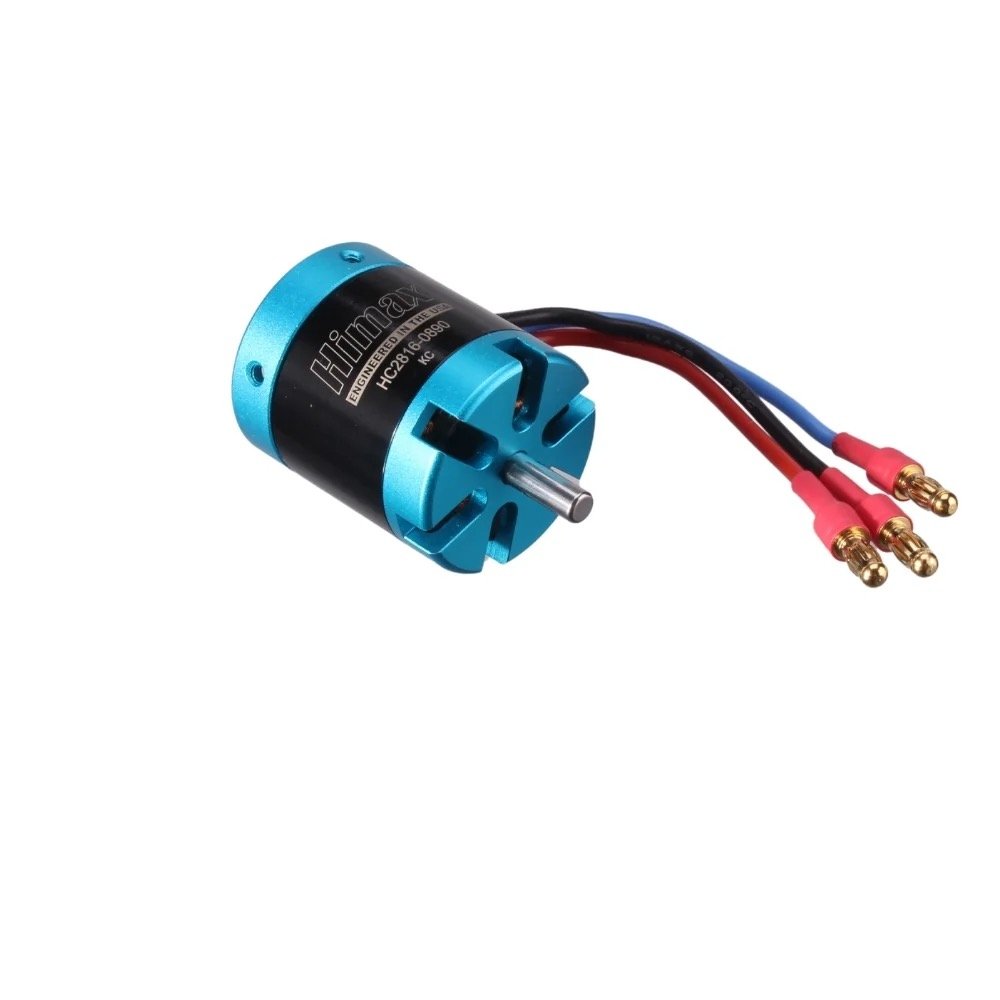

Himax HC2816 Outrunner Brushless Motor

70-200 Watts



• Wide selections - 8 motors in 3 frame sizes,

• Replaces Axi-22 series motors,
• Dual ball bearings designed for durable and efficient operation,
• Three mounting options stick mount, nose mount, or firewall mount,

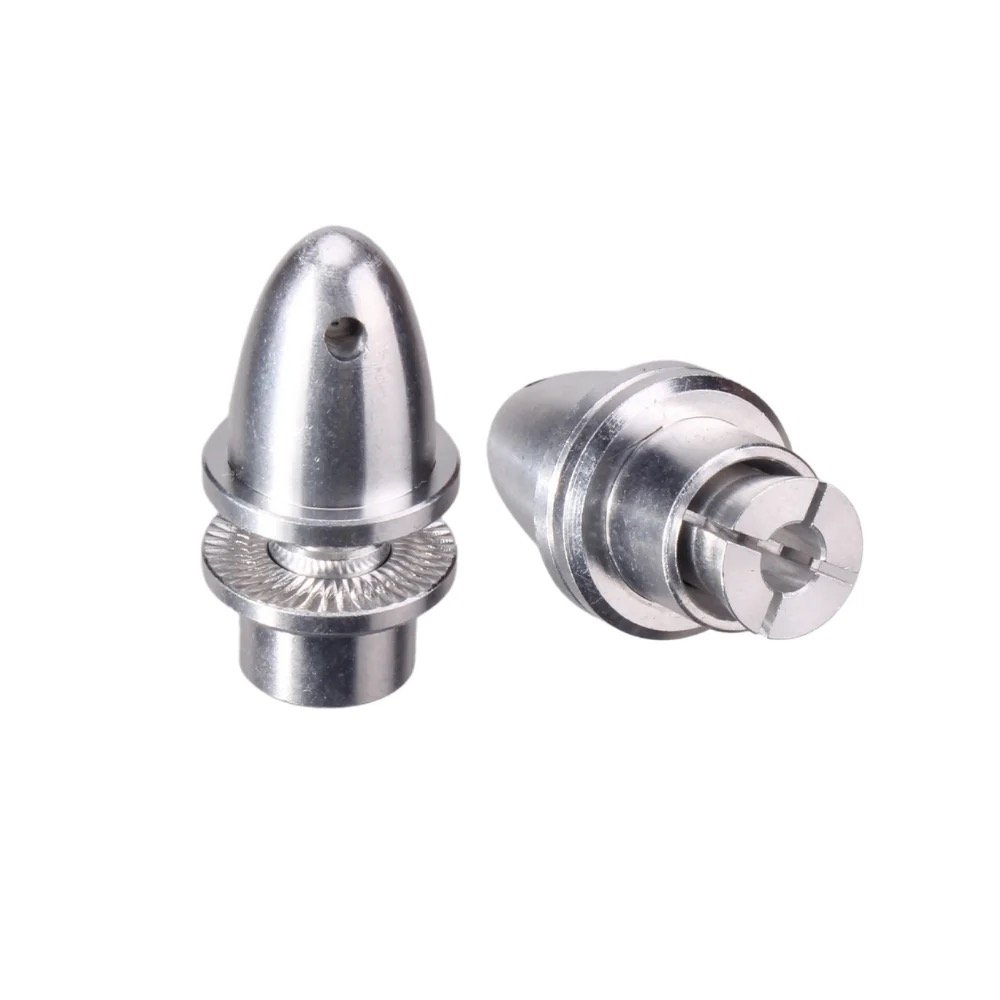

• Includes a prop adapter & two mounting brackets for stick mount & radial mount,
• The unique stick mount fits most GWS & E-Flight’s planes.


HC2816 - These 200 watt motors are for small models weighing 18-24 oz for 3-D flight, up to 32 oz for aerobatic flight and up to 40 oz for leisure flight.

• Gas equivalent - .15

Part No. Dia mm Length mm Weight g Shaft Dia Prop Size* ESC Rating Kv Rm Io
HC2816-0890
28 33 79 4mm 9x4.7-12x6 18 890 .119 .8

*Caution - Prop size is highly dependent on battery choice. Check the manual for full information. Always monitor current when choosing prop.
