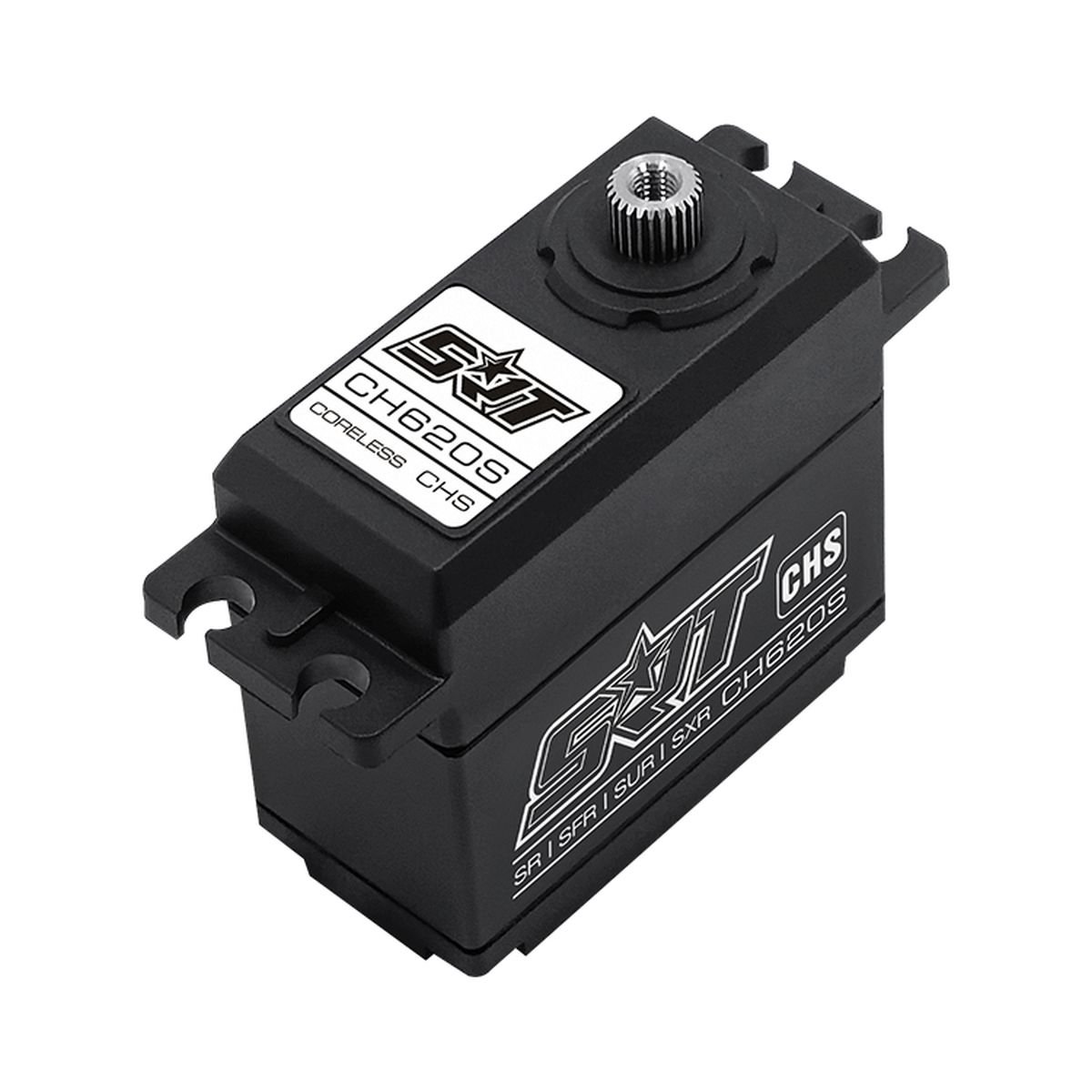

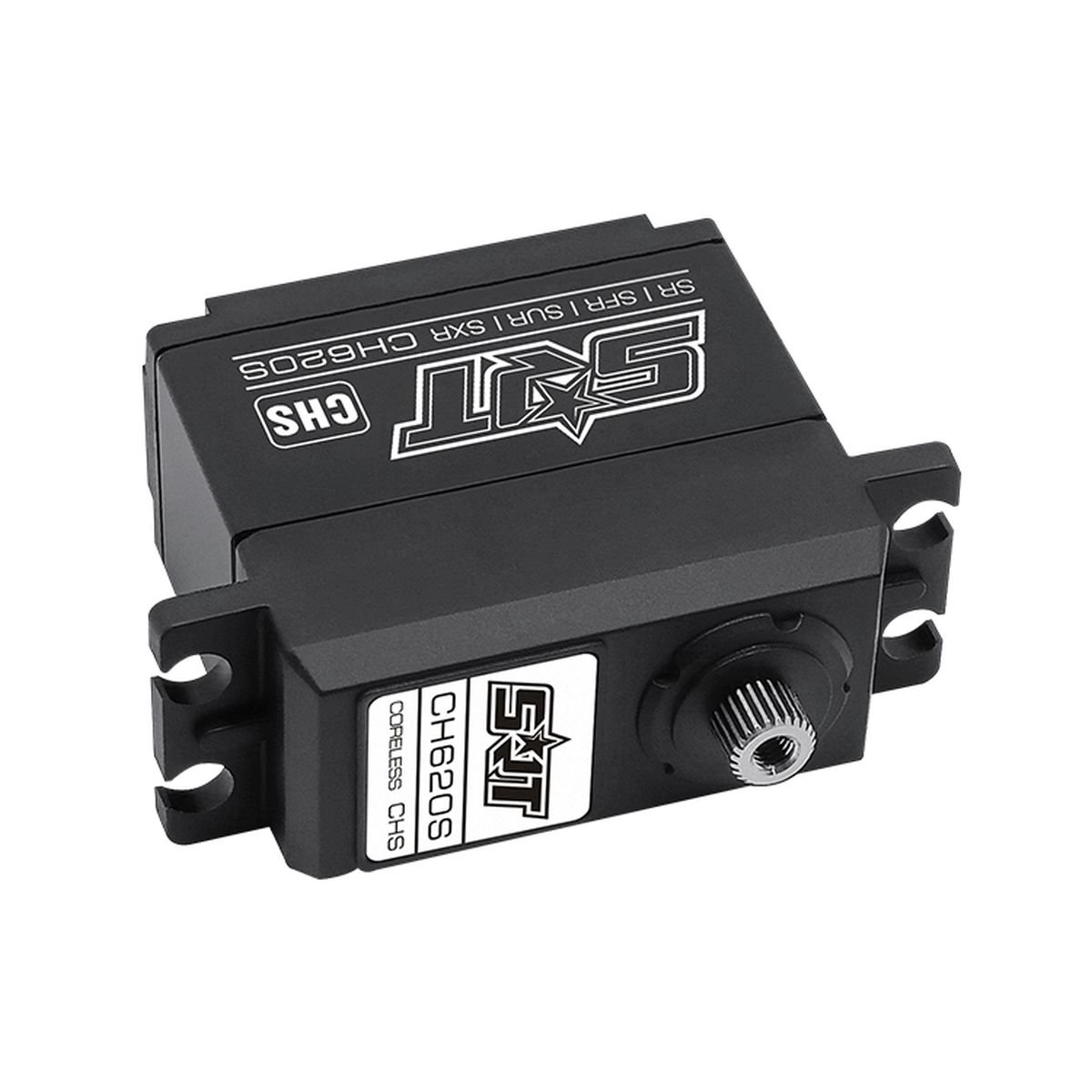

SRT SRTCH620S Standard HV Coreless Digital Servo, .09sec / 277.7oz @ 8.4V

SRTCH620S

Standard HV Coreless Digital Servo, .09sec / 277.7oz @ 8.4V
The latest generation of SRT servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. They are standard size servos for High-Voltage applications up to 8.4V. Featuring SRT innovations like all metal servo mounting tabs to keep them in place through the most extreme conditions, SRT servos will fit most any application.

Features:
Ideal for 1/10 on road applications
Incredible efficiency and low power consumption

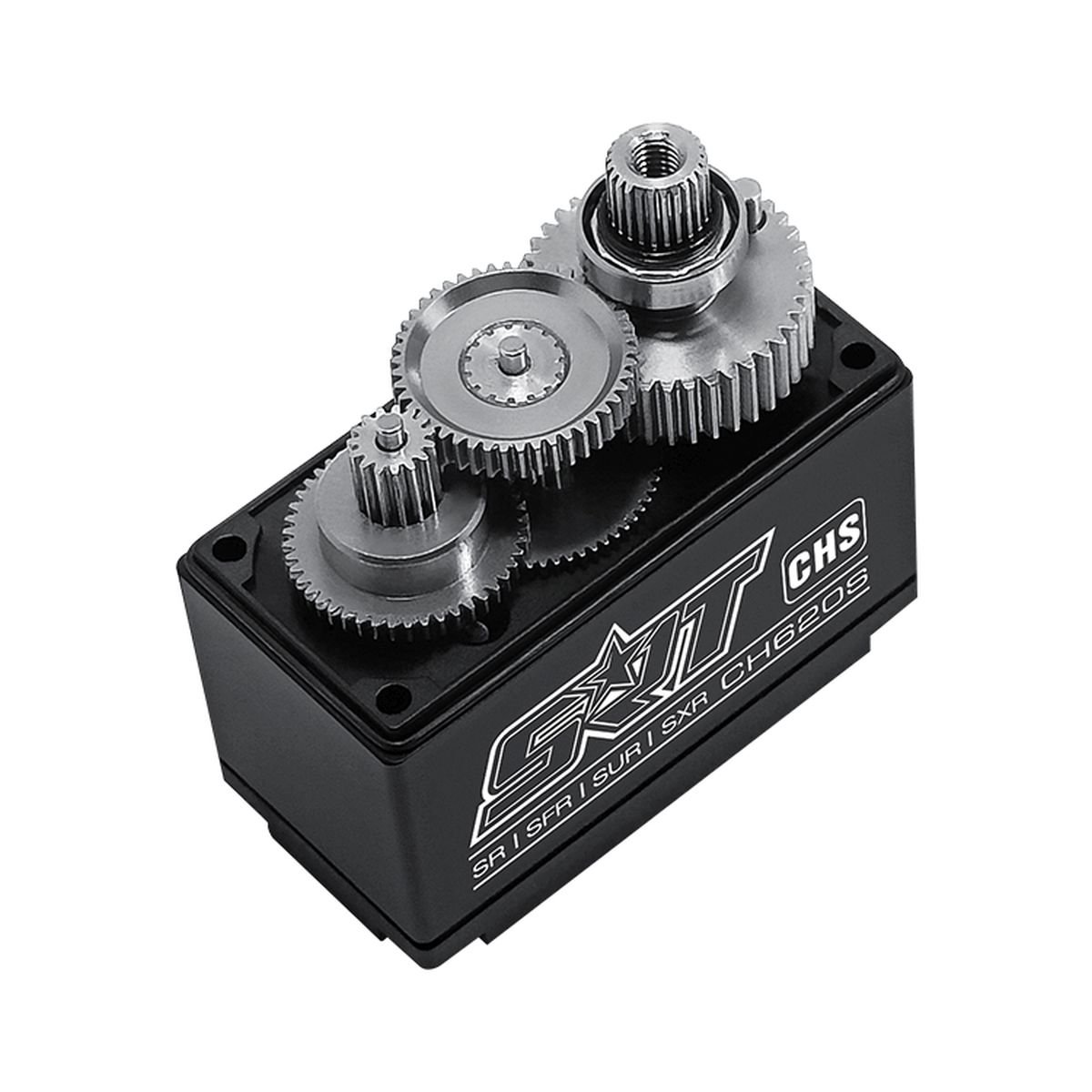

Titanium & Aluminum gears for precision and durability
Standard dimension make it perfect for vehicles that can benefit from a high quality servo
Supporting SR, SFR, SUR, SXR multiple ultra high speed modes
2 usec Dead Band
Superior Holding Torque
1-Year Limited Warranty
Specifications:
Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Aluminum
Control System: Pulse Width Control
Working Frequency: 1520Is / 330hz
Operating Voltage: dc6.0-8.4v
Operating Temperature Range: -10 to + 60 degree
Operating Speed (6.0v): 0.12 sec/60 degrees at no load
Operating Speed (7.4v): 0.10 sec/60 degrees at no load
Operating Speed (8.4v): 0.09 sec/60 degrees at no load
Stall Torque (6.0v): 14.0kg.cm (194.4 oz/in)
Stall Torque (7.4v): 18.0kg.cm (250.0 oz/in)
Stall Torque (8.4v): 20.0kg.cm (277.7 oz/in)
Potentiometer Drive: Direct Drive

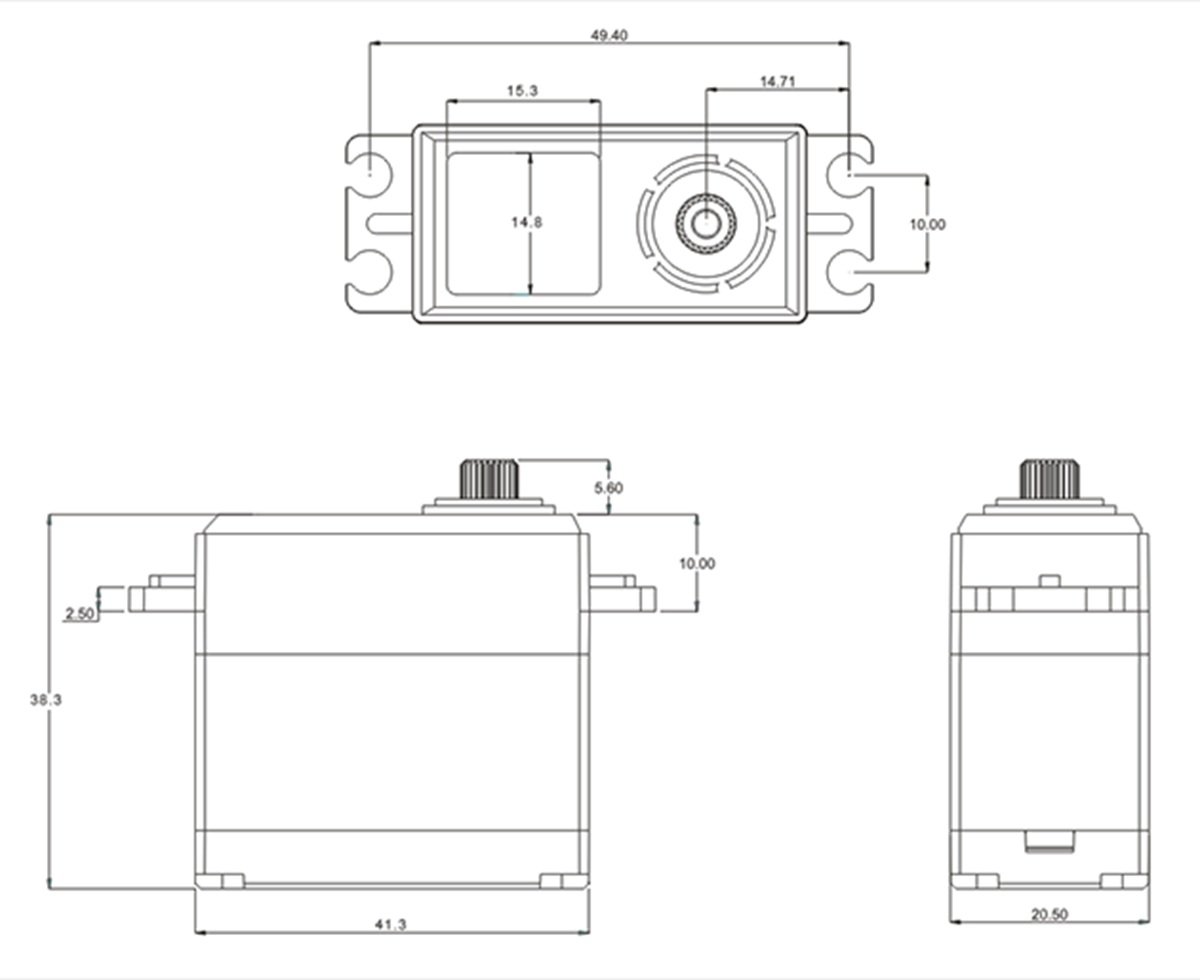

Dimensions: 41.3x20.5x38.3 mm /1.63x0.81x1.51 in
Weight: 69.0g (2.43 oz)
Connector Wire Length: jr 300 mm
