SRT SRTW25 Standard HV DC Digital Waterproof Servo .14sec / 247.2oz @ 7.4V

SRTW25

Standard HV DC Digital Waterproof Servo .14sec / 247.2oz @ 7.4V
The latest generation of SRT servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. They are standard size servos for High-Voltage applications up to 8.4V. Featuring SRT innovations like all metal servo mounting tabs to keep them in place through the most extreme conditions, SRT servos will fit most any application.

Features:
Standard dimension make it perfect for vehicles that can benefit from a high quality servo
CNC Machined aluminum case for exceptional cooling
NMB dual main bearings
25T output shaft HD
4096 Resolution
2 usec Dead Band
1-Year Limited Warrant
Specifications:
Type: Digital
Bearing: Dual
Motor Type: DC
Gear Type: Metal
Gear Material: Copper & Aluminum
Control System: Pulse Width Control
Working Frequency: 1520Is / 330hz
Operating Voltage: dc6.0-7.4v
Operating Temperature Range: -10 to + 60 degree
Operating Speed (6.0v): 0.16 sec/60 degrees at no load
Operating Speed (7.4v): 0.14 sec/60 degrees at no load
Stall Torque (6.0v): 23.0kg.cm (319.4 oz/in)
Stall Torque (7.4v): 25.0kg.cm (347.2 oz/in)
Potentiometer Drive: Direct Drive

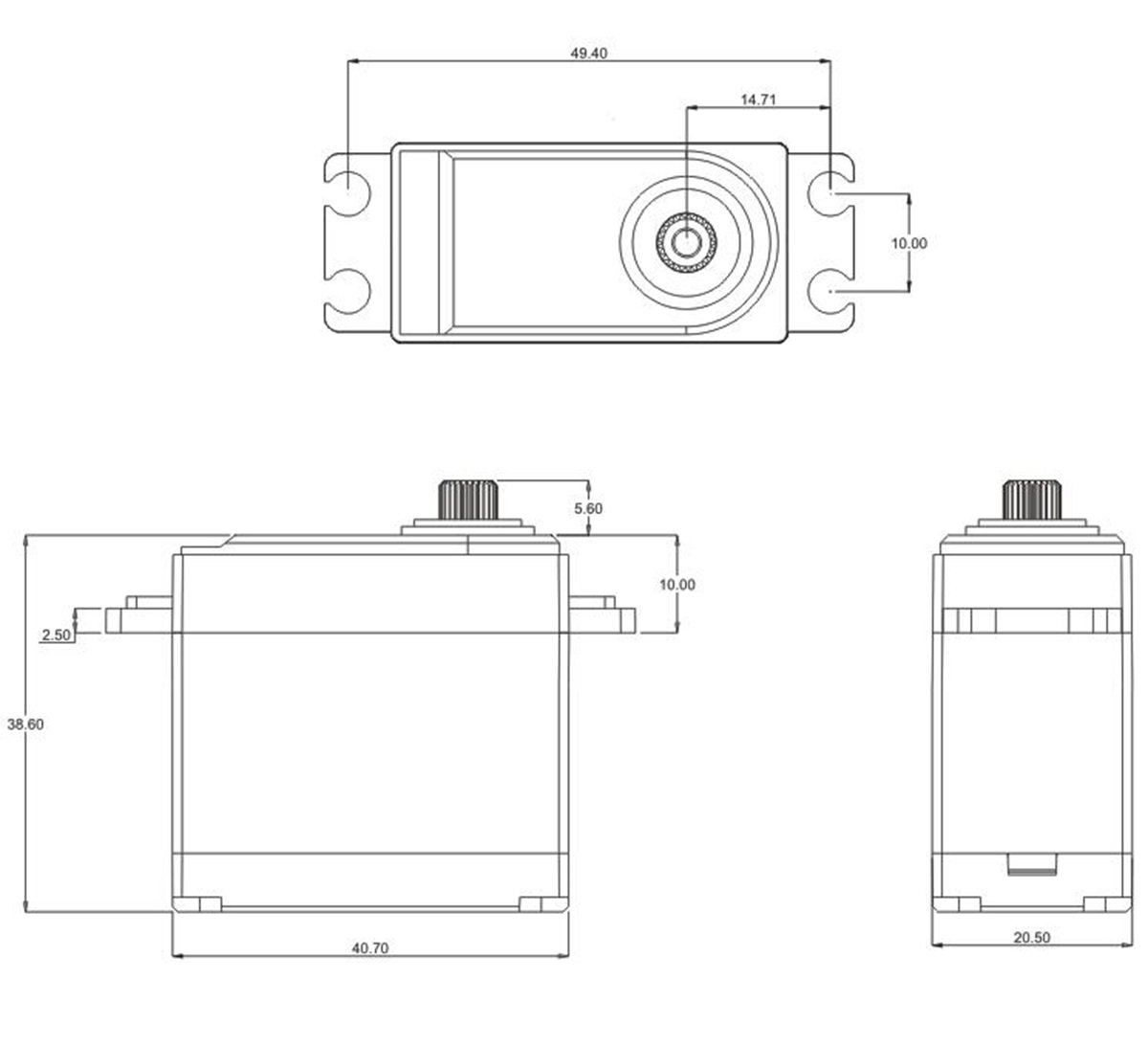

Dimensions: 40.7x20.5x38.6 mm /1.60x0.81x1.52 in
Weight: 72.0g (2.54 oz)
Connector Wire Length: jr 360 mm
