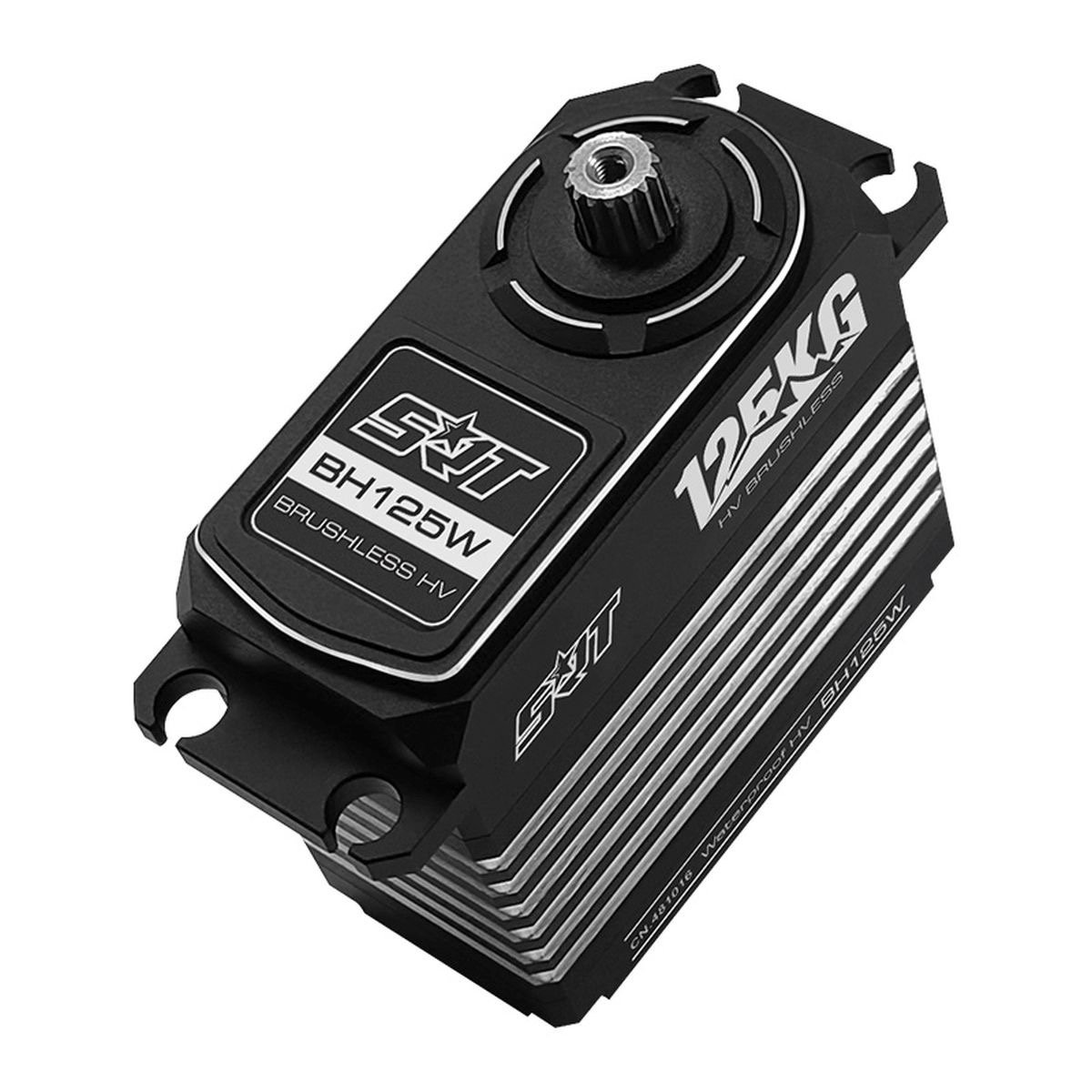

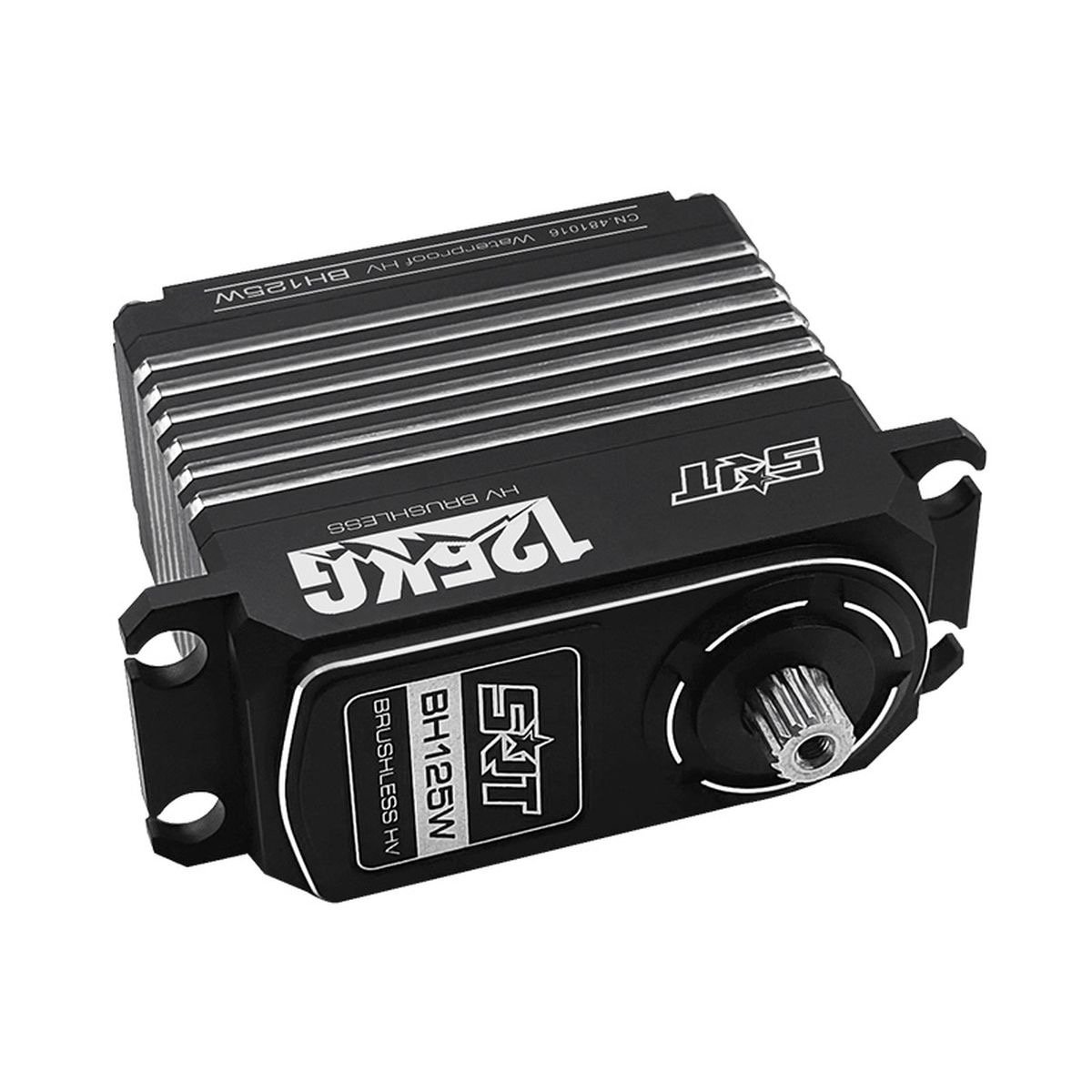

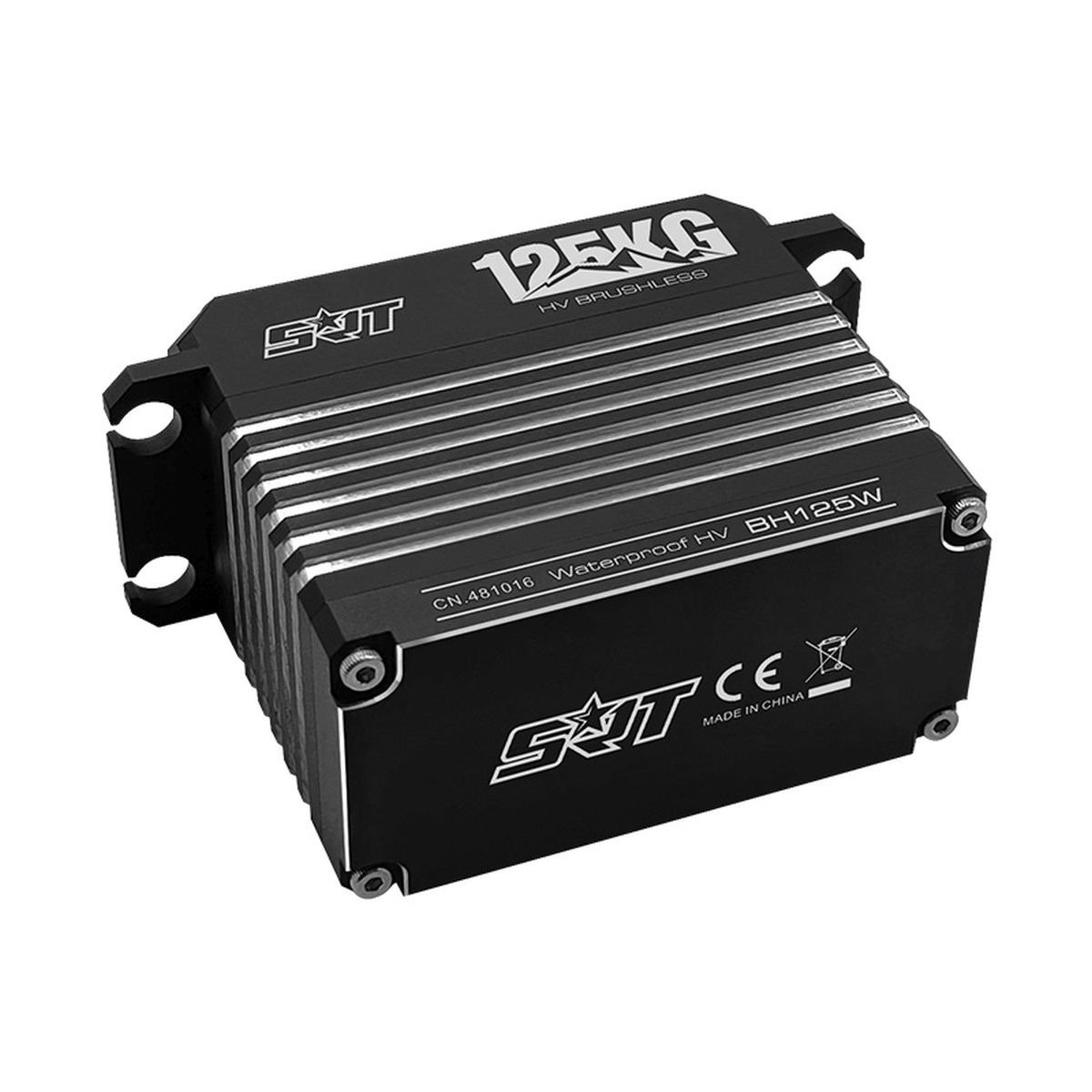

SRT SRTBH125W Large Scale HV DC Digital Servo .085sec / 1735.9oz @ 8.4V

SRTBH125W

Large Scale HV DC Digital Servo .085sec / 1735.9oz @ 8.4V
The latest generation of SRT servos provides you with the performance you need for any 1/5th to 1/6th scale vehicle application. Designed for High-Voltage applications up to 8.4V and featuring an all metal case construction the are the servo for the ultimate 1/6th scale performance. The BH125W also features SRT innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all metal servo mounting tabs to keep them in place through the most extreme conditions.

Features:
Ideal for 1/5 on road and 1/5 off road scale applications
Superior Holding Torque
Incredible efficiency and low power consumption
Standard large scale servo dimensions make it perfect for vehicles that can benefit from a high quality servo
CNC Machined aluminum case for exceptional cooling
15T output shaft
2 usec Dead Band
1-Year Limited Warranty
Specifications:
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Steel
Control System: Pulse Width Control
Working Frequency: 1520Is / 330hz
Operating Voltage: dc6.0-8.4v
Operating Temperature Range: -10 to + 60 degree
Operating Speed (6.0v): 0.12 sec/60 degrees at no load
Operating Speed (7.4v): 0.11 sec/60 degrees at no load
Operating Speed (8.4v): 0.085 sec/60 degrees at no load
Stall Torque (6.0v): 90.0kg.cm (1249.9 oz/in)
Stall Torque (7.4v): 110.0kg.cm (1527.6 oz/in)
Stall Torque (8.4v): 125.0kg.cm (1735.9 oz/in)
Potentiometer Drive: Direct Drive

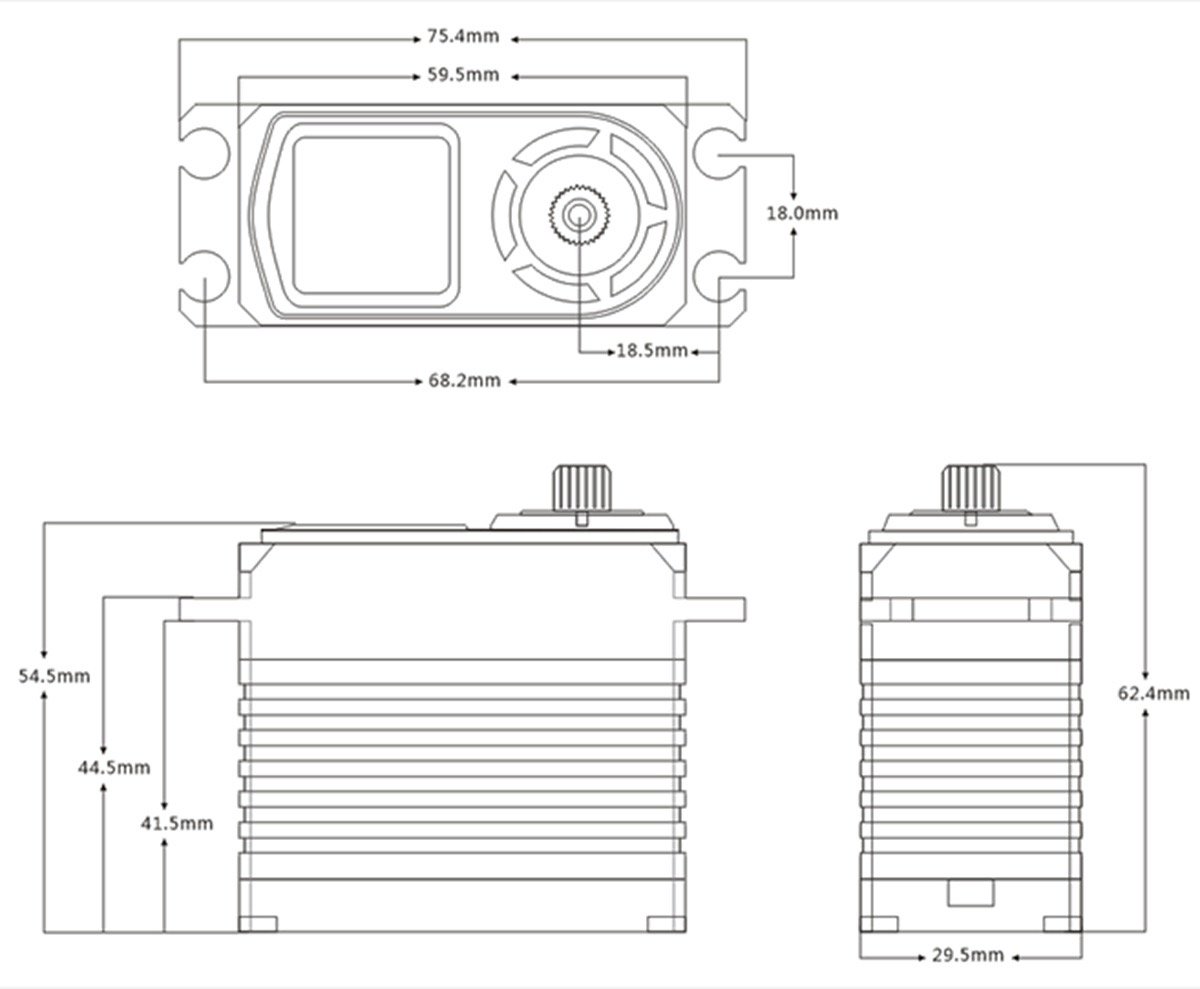

Dimensions: 59.5x29.5x54.5 mm /2.34x1.16x2.15 in
Weight: 209.0g (7.37 oz)
Connector Wire Length: jr 350 mm
Maximum locked-rotor current in different voltage: 6.0V -> 9.5A / 7.4V -> 11.5A / 8.4V -> 13A
