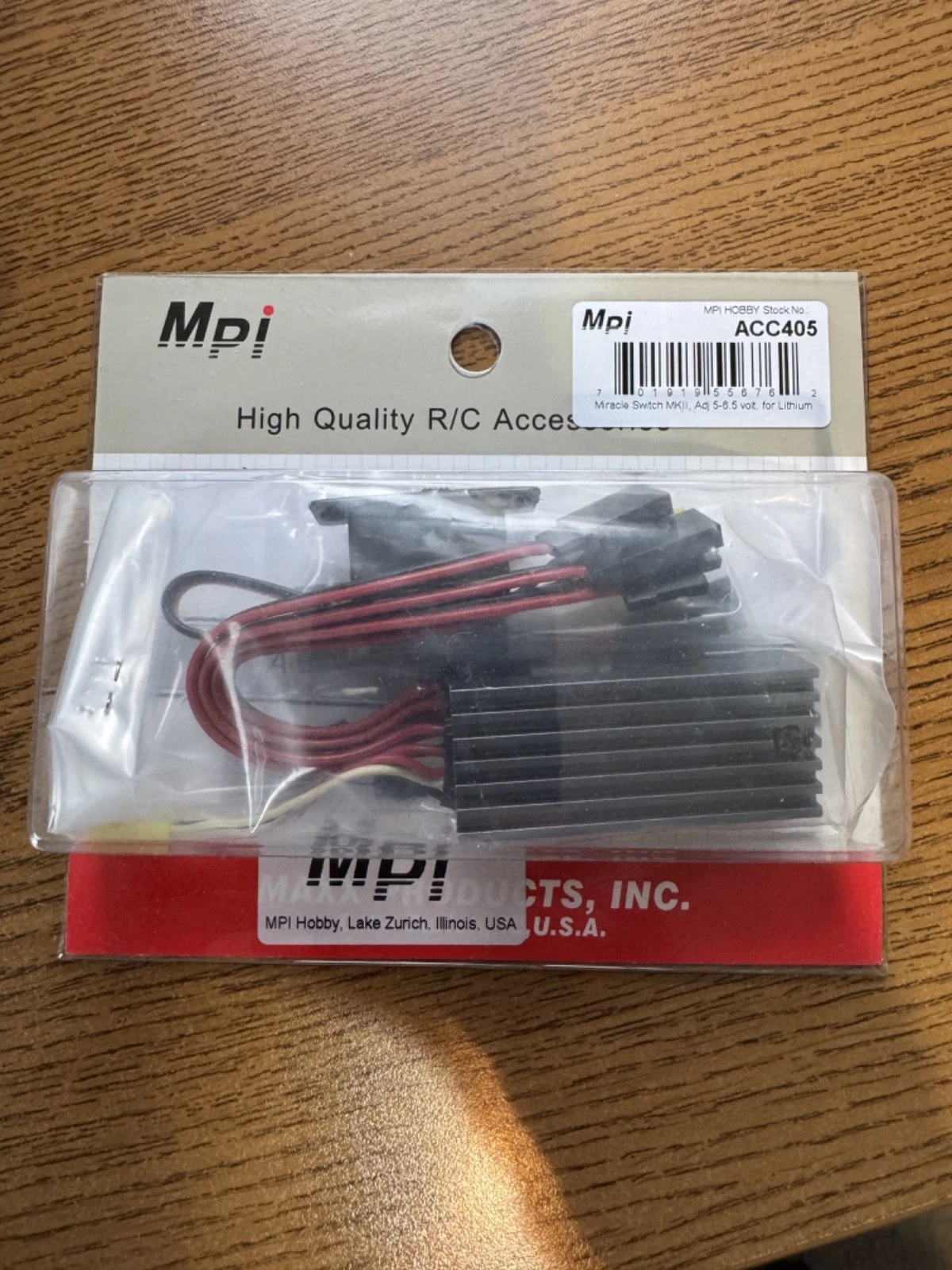

Miracle Switch MK2 with Built-in Regulator ACC405

This electronic Miracle Switch replaces the regular mechanical switch and includes a built in voltage regulator. Under normal condition, the switch functions like a regular switch. However, when the switch or its wires fail, the current continues to flow. The only way to turn it off under this condition is to disconnect the Rx battery pack.

Large heat sink for optimum performance
Soft-mount Charge Switch can be relocated with a regular extension
Dual HD AWG22 input/output connectors to double current capacity and redundancy

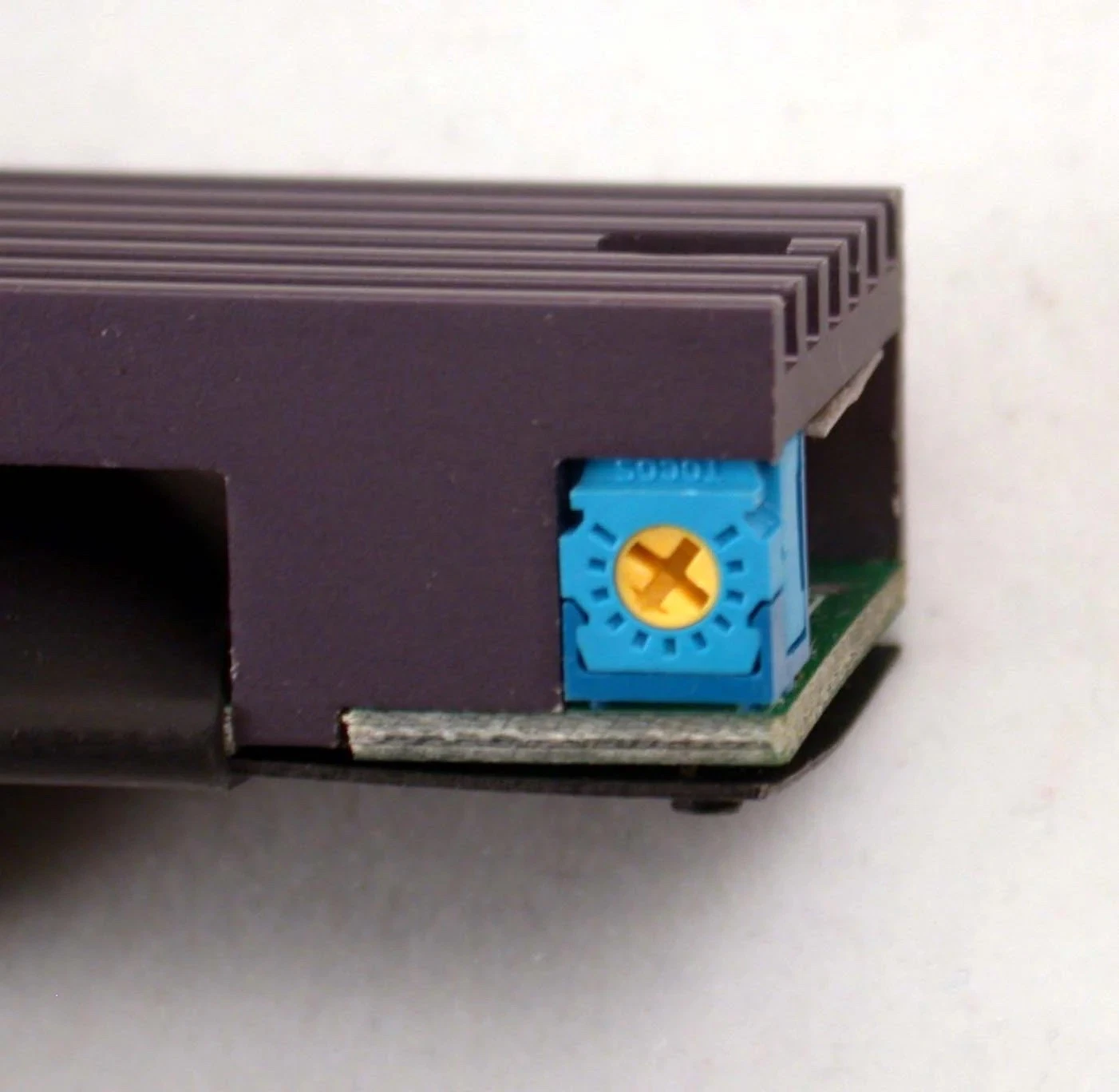

Built-in regulator is factory preset to 5.95V output, fully adjustable between 5V to 6.5V
When input is higher than 6V or any set voltage, it will regulate to 6V or any set voltage
When input drop below set voltage, regulator is bypassed, • Weight only 1.7 oz, • Idle Current: 0.03 ma max
Current: At 7.4V input, 10Amp continuous, 20Amp max for 1 minutes
Input Range: 4.8V -12V
Note: Current capacity drops as input voltage increases
