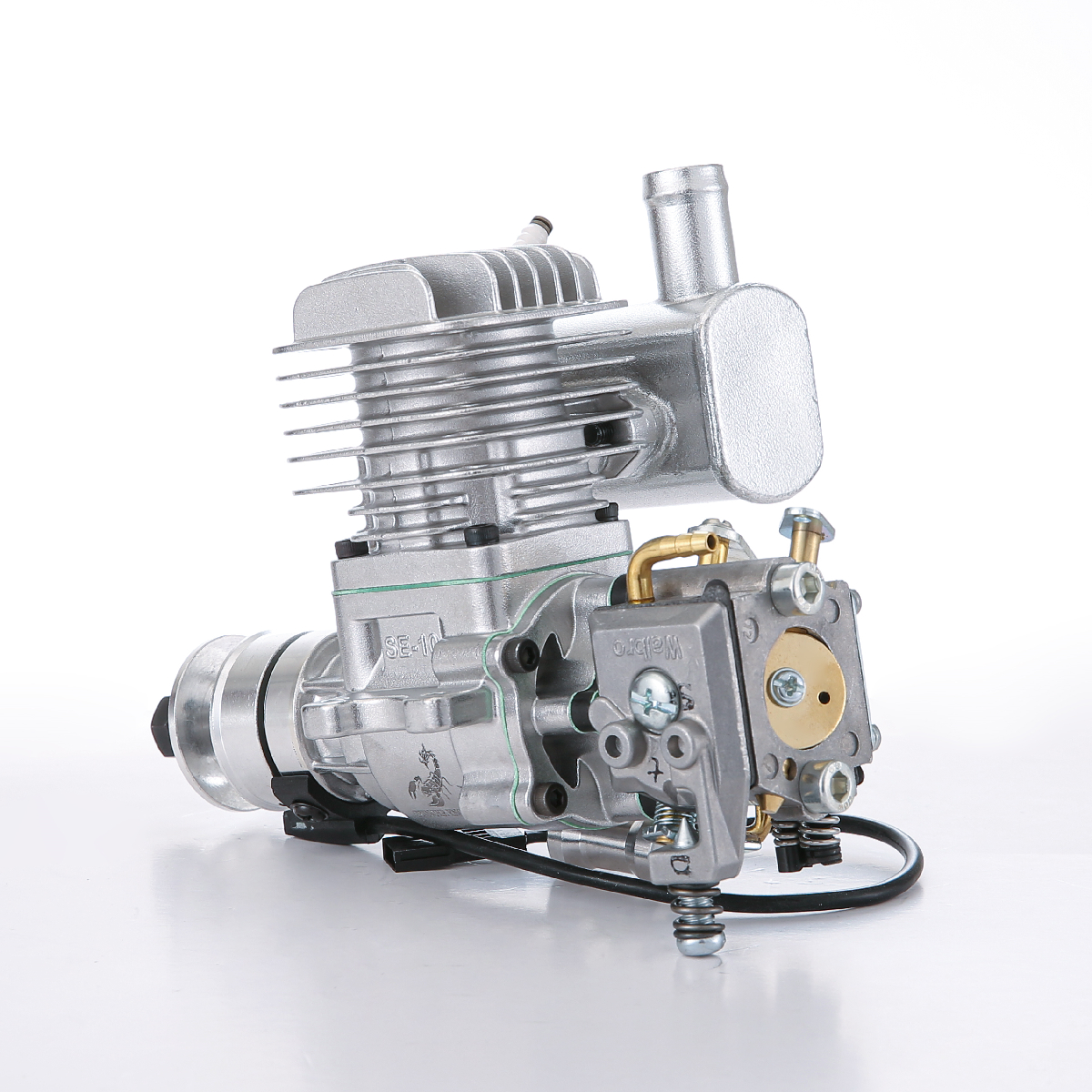

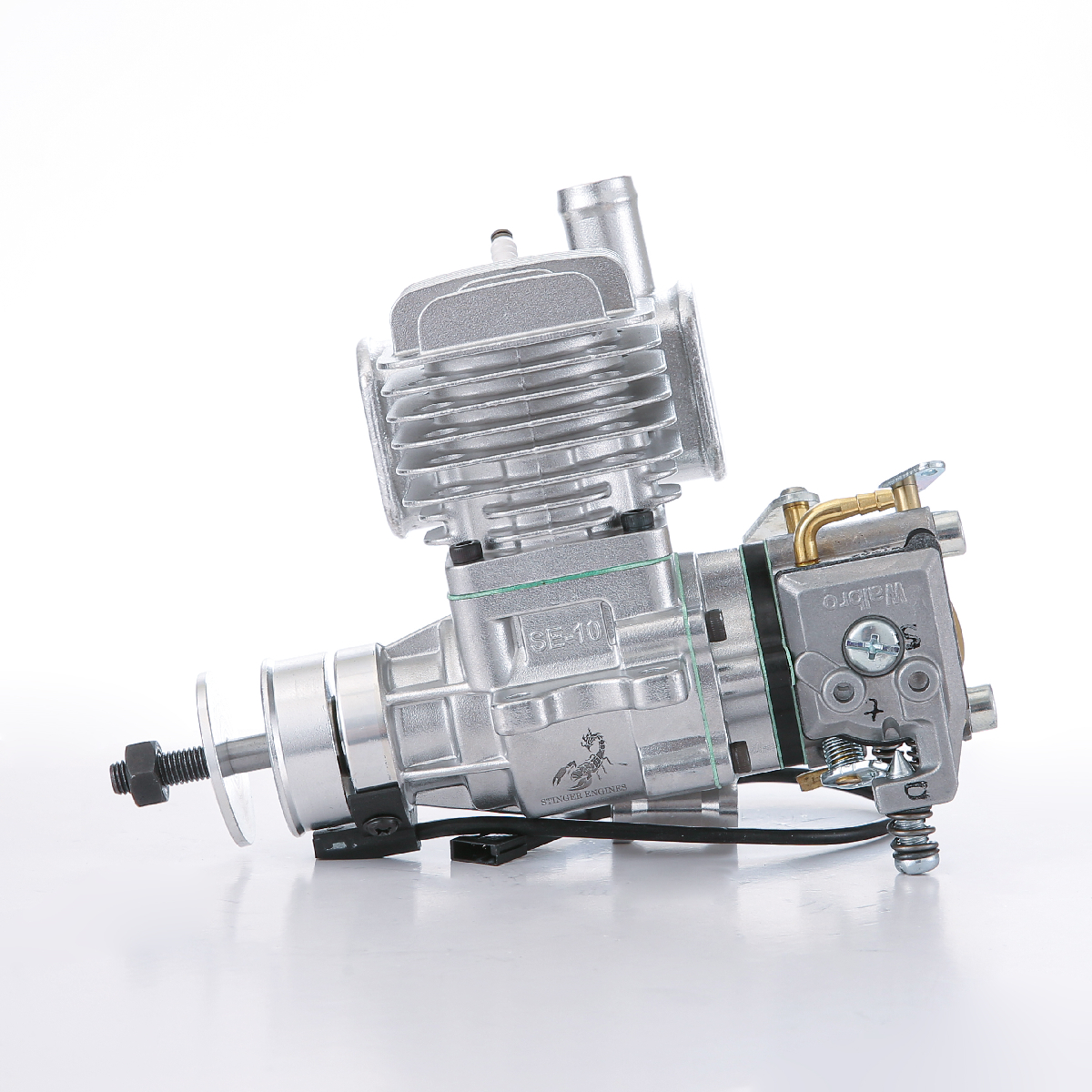

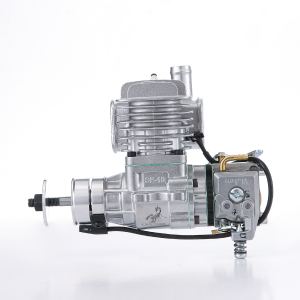

Stinger 10cc SE Side Exhaust beam mount gas engine

RCGF Stinger 10cc SE
Glow size：economy and powerful
NEW ENGINE ,NEW Design,More powerful,Stronger material , More precision , More shining
Latest Design & Strong Power ！
The NEW Stinger 10cc SE is the latest design engine.
The rear exhaust design make it fit more narrow airplanes especially the warbirds .
Strong Power give you unprecedented fly experience.

Parameter

Type 2 cycle piston valve type gasoline engine for airplane
Displacement (cc) 10cc (.61 cu in)
Bore x Stroke (mm) 1.08 in (27.6mm)*0.67 in (17mm)
Recommended props 13 x 6, 14 x6,13X8,13X7
Maximum Output 1.9 hp @ 12000rpm
Power supply 7.4V-14V
Carburetor : Walbro
Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)
SPARK PLUG: M8 1/4-32
Requires: Gasoline, 2-cycle oil, ignition battery & propeller
speed rang : 2000-12000rpm
Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 (recommended : 32:1 for real oil, or 40:1 for synthetic oil)
Lubrication Oil : High quality fully synthetic 2 cylinder oil such as Motul 800 2T 100% synthetic racing motro oil , Red line two-stroke racing motor oil , Stihl Ultra high performance 2 cycle fully synthetic engine oil etc .
Break in Propeller : 13*7 ; 14*6 (Standard Two leafs prop)
Recommended Airplane: 50 size plane,40 size plane
Cooling System : Air Cooled

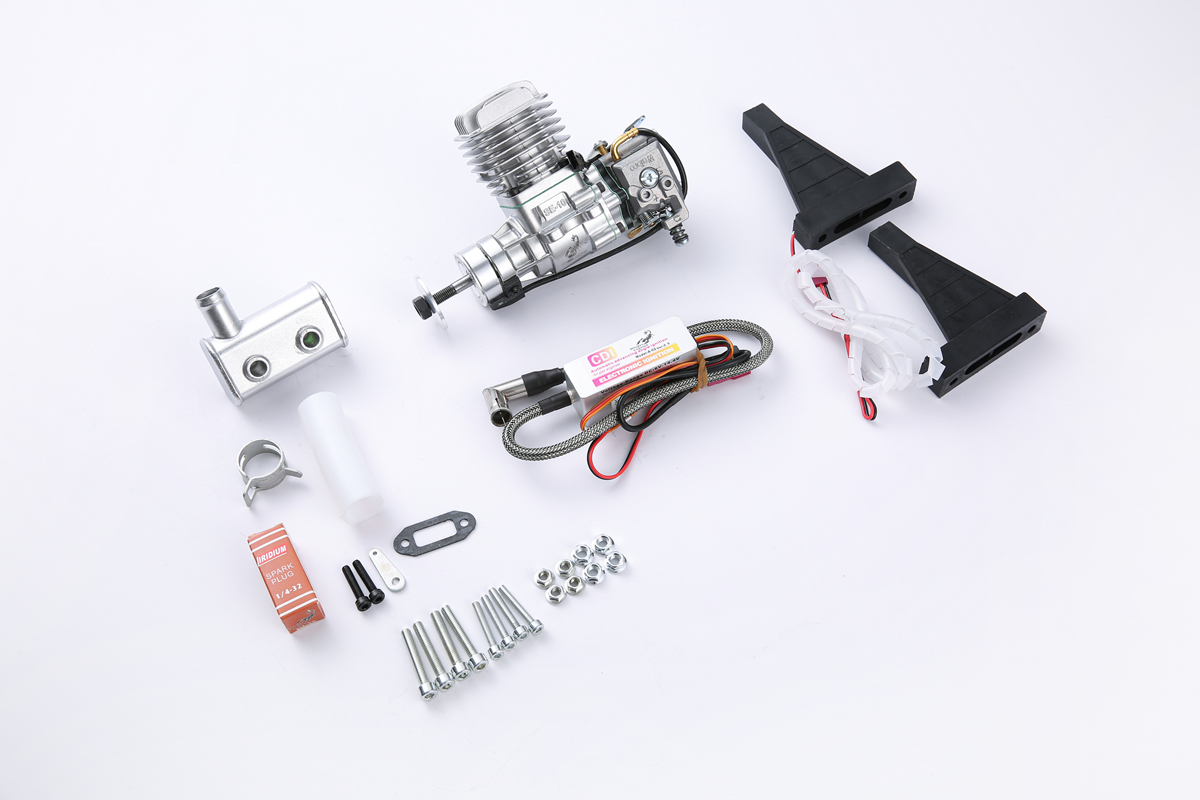

RCGF Stinger Engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.
Weight:
Engine: 1.03 lb (468 g)
Muffler: 1.4 oz (40 g)
Ignition Module: 4.1 oz (115 g)
Total: Weight: 1.37 lb (623 g)
Technical Data:
Ignition Battery: 7.4V-14VNiCd or NiMH, 7.4V LiFe or 2S LiPo pack ( DO NOT use BEC, iBEC or uBEC)
Gasoline/Oil Mix: (recommended : 32:1 for real oil, or 40:1 for synthetic oil)
Replacement Spark Plug: M8 1/4-32 or equivalent
Idle Speed: 2000 rpm/min
