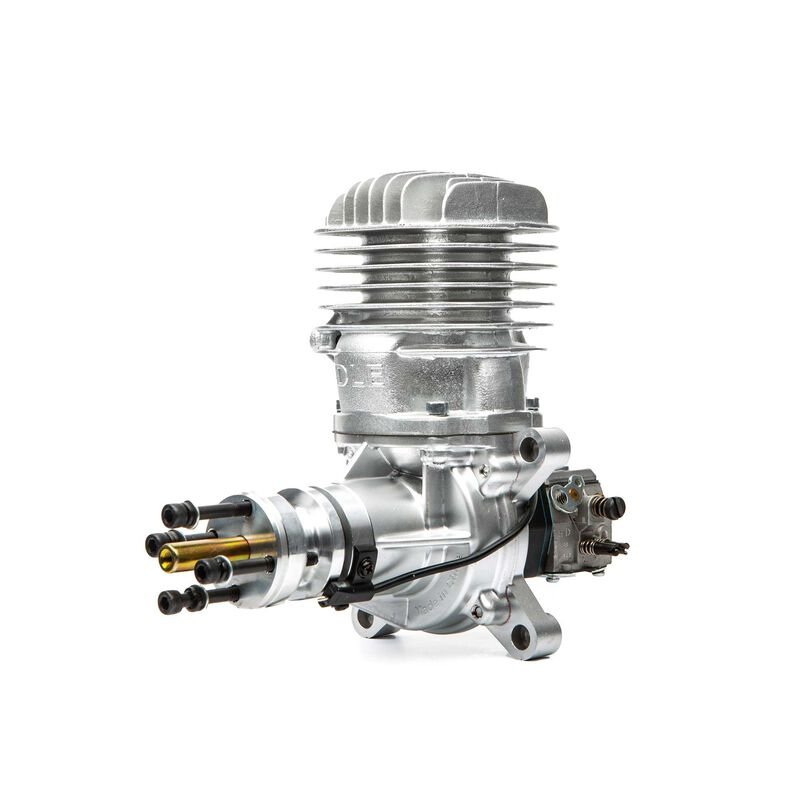

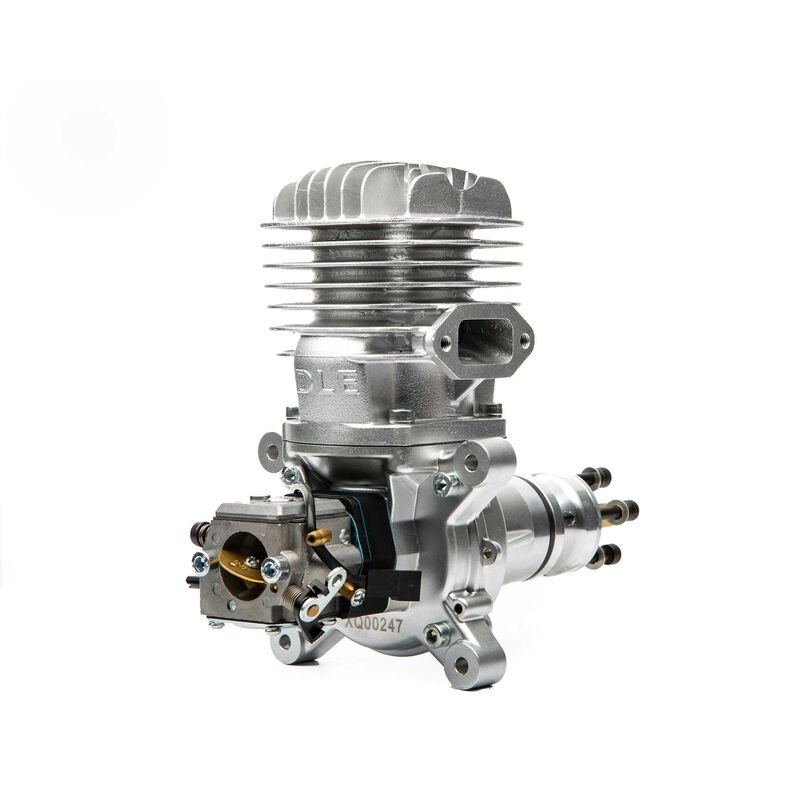

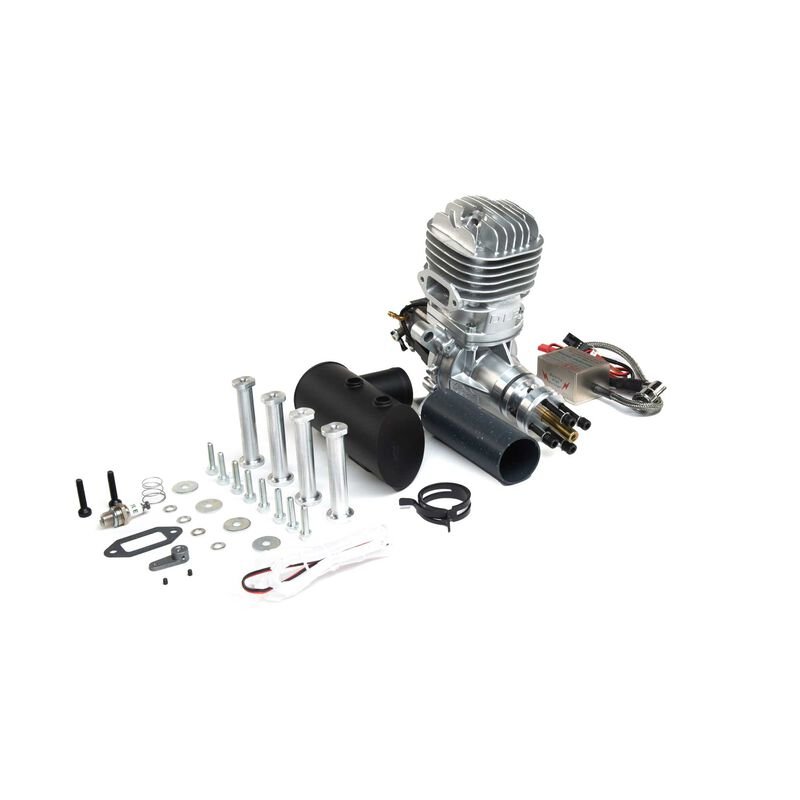

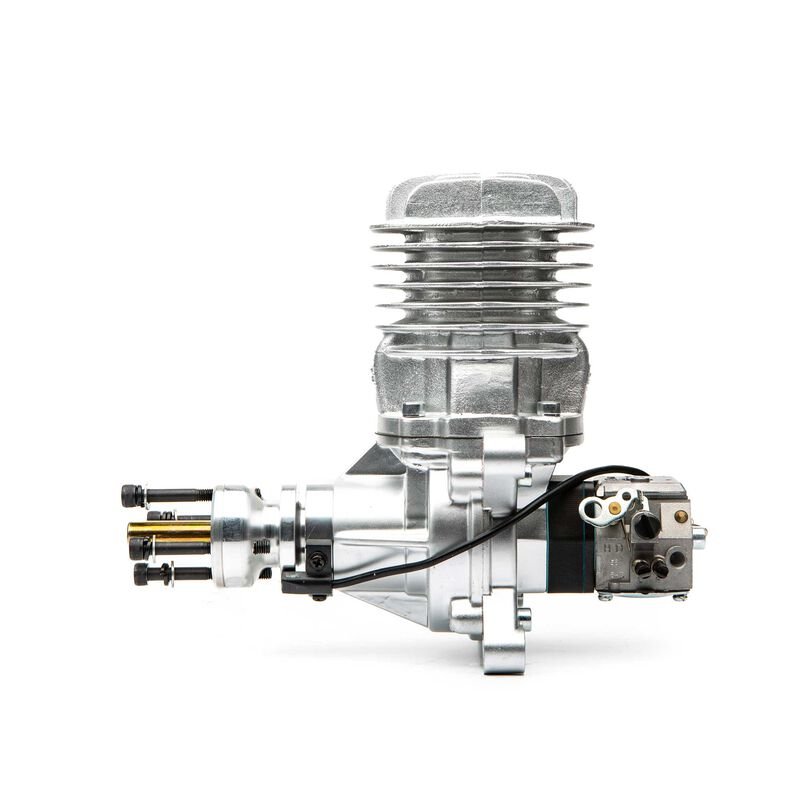

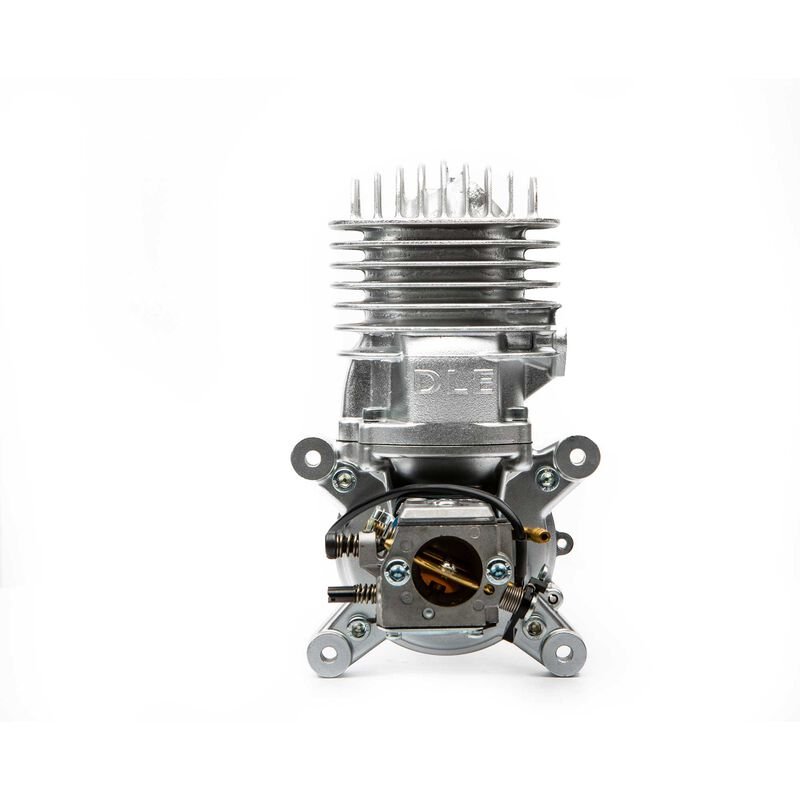

DLE-65 Gas Engine with Muffler, Standoffs & ignition DLE-65 Gas Engine with Muffler, Standoffs & ignition
DLE-65 Gas Engine with Muffler, Standoffs & ignition
Overview DLE65cc gasoline model engine, launched in March 2020, is a single cylinder two-stroke piston engine. Clean 92 # or above unleaded gasoline is used as fuel, and the proportion of engine oil is 30:1. It is forbidden to mix lubricants of different manufacturers and brands! It will cause serious blockage of carburetor. Product Specifications Bore 1.85" (47 mm) Cylinders Single Displacement 3.97cu in (65cc) Engine (Only) Weight 3.196lbs (1450g) Power Type Gas Ignition Weight 0.288lbs (131g) Mounting Dimensions Upper Mounting Hole Centers, 3.5" (90mm), Lower Mounting Hole Centers, 3.1" (80mm), Height of Mounting Hole Centers 2.6" (67mm) Muffler Type Welded steel Muffler Weight 0.375lbs (170g) Oil Type & Content 2-cycle oil required, mix ratio of 30:1 Plug Type DLE CM6 Product Height 4.96" (126 mm) Product Length 6.85" (174 mm) Product Width 3.5" (89 mm) Prop Range 23x10, 24x8, 24x9, 24x10 Stroke 1.47" (37.5mm)
