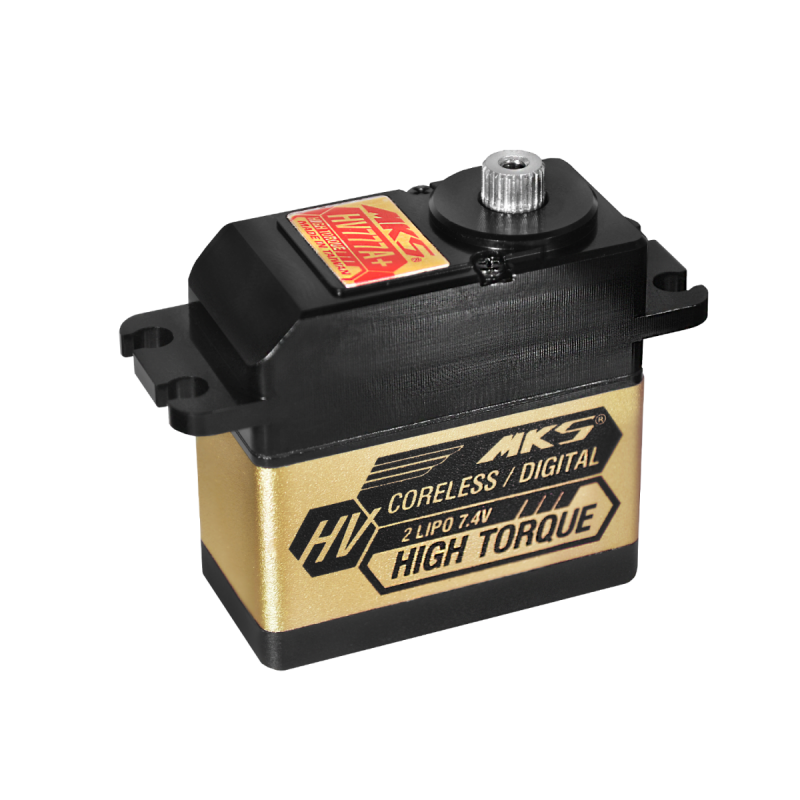

MKS HV777A+ Aluminum upper Casing (0.1 sec/60° - 40.40 kg.cm (561.1 oz/in) @8.2

MKS HV777A+ Aluminum upper Casing (0.1 sec/60° - 40.40 kg.cm (561.1 oz/in) @8.2

Details
SKU RC-MKS-HV777A+
Dead Band 0.0008 ms (Default)
Control System +Pulse Width Control
Working Frequence 1520μs / 333hz
(RX) Required Pulse 3.5 ~8.4 Volt Peak to Peak Square Wave
Operating Voltage 6.0 ~7.4 V DC Volts
Operating Temperature Range -10 to + 60 Degree C
Operating Speed (6V) 0.13 sec/60° degrees at no load
Operating Speed (7.4V) 0.11 sec/60° degrees at no load
Operating Speed (8.4V) 0.10 sec/60° degrees at no load
Stall Torque (6V) 29.50 kg/cm - 409.7 oz/in
Stall Torque (7.4V) 36.5 kg/cm - 506 oz/in
Stall Torque (8.4V) 40.40 kg/cm - 561.1 oz/in
Motor Type Coreless Motor
Potentiometer Drive Indirect Drive
Driver Type FET
Bearing Type Dual Ball Bearings
Gear Type Titanium Gears
Connector Wire Length 15.0 cm (5.9 in)
Dimensions 40X20X40 mm (1.57x0.97x1.57 in)
Weight 75.45g - (2.66 oz)

Entire line of MKS servos are available, please call for more info or details
