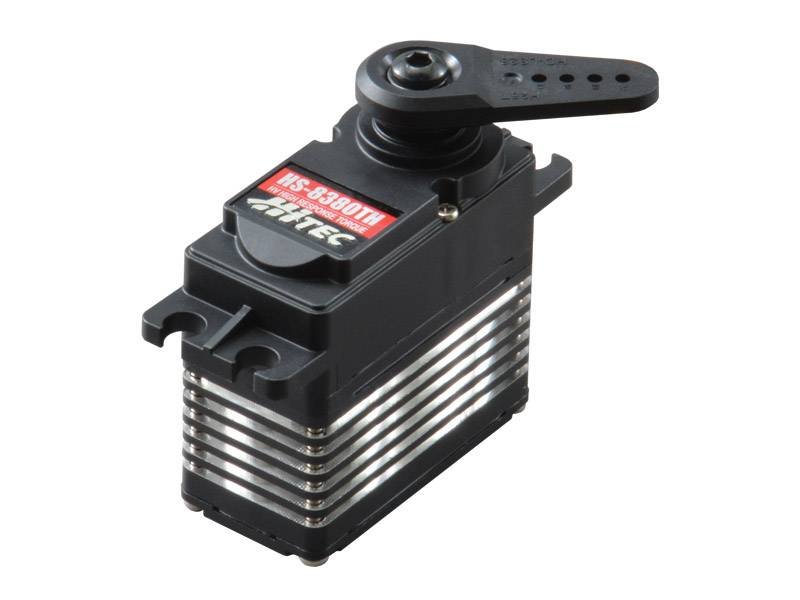

HS-8380TH High Voltage, Ultra Responsive, Ultra Torque Titanium Gear Servo

Product Description
Take command of the track with our torque master servo, the HS-8380TH. Built rugged and tough with a titanium gear train, efficient coreless motor and high resolution, non-programmable digital circuits, this ultra response, high voltage servo delivers the power and force required to beat the fiercest competitors. Drivers of 1/8th scale on-road, short course, buggies, truggies, monster trucks and crawlers will relish in the revolutionary strength of the HS-8380TH. Start your engines!
Applications:
1/8th Scale Short Course Trucks, 1/8th Scale Buggies, Truggies and Monster Trucks, 1/10 - 1/8th Scale Crawlers
Note: Due to it's ultra narrow dead band this servo is not recommended for aircraft use.

Features
High Resolution Ultra Response Non-Programmable Digital Circuit
Efficient Coreless Motor
Durable Titanium Gears
7.4v 2-Cell LiPo Capability
Industry Standard 25 Tooth Spline (Fut. Compatible)

HS-8380TH Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60) 0.17 ~ 0.14
Maximum Torque Range oz. / in. 403 ~ 486
Maximum Torque Range kg. / cm. 29.0 ~ 35.0
Current Draw at Idle XX mAh
No Load Operating Current Draw XXX mAh
Stall Current Draw XXXX mAh
Dead Band Width X us
Physical Specifications
Dimensions (Inches) 1.57 x 0.79 x 1.50
Dimensions (Metric) 40.0 x 20.0 x 38.0
Weight (Ounces) 2.4
Weight (Gram) 68.0
Circuit Type HR Digital
Motor Type Coreless Metal Brush
Gear Material Titanium
Bearing Type Dual Ball Bearing
Output Shaft (type / Omm) H25T
Case Material XXXX
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 20 / 80
