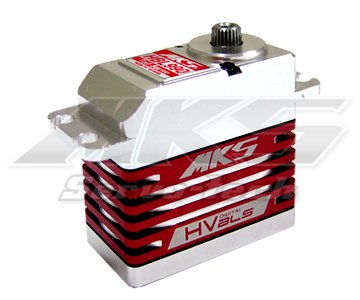

MKS HBL990 (0.03 sec/60 - 87.49 oz/in @8.2V) HBL990 (0.03 sec/60 - 87.49 oz/in @8.2V)
HBL990 (0.03 sec/60 - 87.49 oz/in @8.2V)
HBL990 Details SKU MKS-HBL990 Dead Band 0.0008ms (Default) Control System +Pulse Width Control Working Frequence 760us / 560hz Operating Voltage 3.8 ~ 8.4 V DC Volts Operating Temperature Range -10 to + 60 Degree C Operating Speed (6V) 0.04 sec/60 degrees at no load Operating Speed (8.4V) 0.30 sec/60 degrees at no load Stall Torque (6V) 65.27oz/in (4.7 kg.cm) Stall Torque (8.4V) 6.3 kg.cm (87.49 oz/in) Motor Type Brushless Motor Potentiometer Drive Indirect Drive Bearing Type Dual Ball Bearings Gear Type Titanium Gears Connector Wire Length 24.0 cm (9.4 in) Dimensions 40 x 20 x 40 mm ( 1.57x0.79x1.50 in) Weight 70.29 g (2.48 oz) Entire line of MKS servos are available, please call for more info or details
