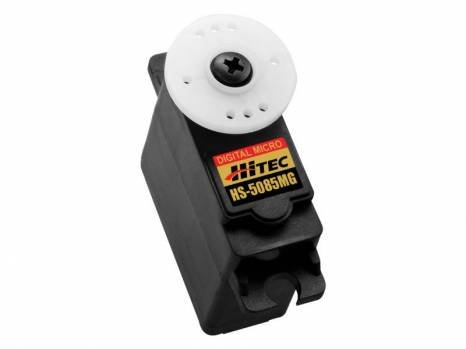

HS-5085MG Premium Metal Gear Micro Servo

A digital version of one of Hitec's most popular mini servos the HS-5085MG offers excellent centering, resolution and durability for those looking to save weight without sacrificing performance. A popular servo for smaller airplanes, heli's, boats, cars and trucks, the HS-5085MG offers a fine balance between speed and torque.

Features
Standard Servo Performance from a Micro Servo
Rugged Metal Gears
Ball Bearing-Supported Output Shaft
Standard Programmable Digital Circuit
Stronger Holding Power than the Analog Version

Specifications

Motor Type: 3 Pole
Bearing Type: Top Ball Bearing
Speed (4.8V/6.0V): 0.17 / 0.13
Torque oz./in. (4.8V/6.0V): 50 / 60
Torque kg./cm. (4.8V/6.0V): 3.6 / 4.3
Size in Inches: 1.14 x 0.51 x 1.18
Size in Millimeters: 28.96 x 12.95 x 29.97
Weight ounces: 0.77
Weight grams: 21.83
