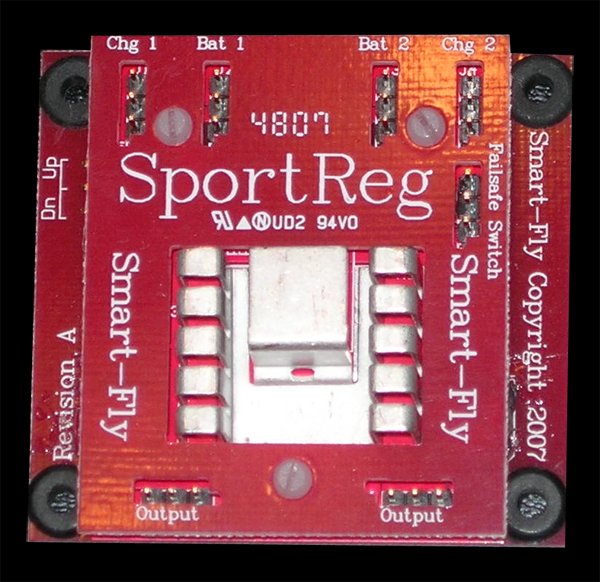

Smart-Fly SportReg regulator

The Smart-Fly dual-battery regulators provide the user with battery redundancy and a remote on/off switch.

The Smart-Fly SportReg is ideal for .60 glow through 50cc gas planes and small jets. The regulator uses standard R/C connectors for both input and output connections. The unit will handle 5 amps continuous current with peaks to 8 amps. The unit has dual battery inputs for redundancy and has a built-in BatShare to balance battery draw and prevent a bad battery pack from affect a good pack. It is meant to be used with 2-cell Li-ion or Li-Poly packs. It features adjustable voltage output from approximately 5.1V to 6.4V. It supports the use of an optional failsafe switch. Its small size and weight make it ideal for smaller planes.

Features:

Built-in BatShare
Standard R/C Connectors In & Out
For use with 2-cell Lithium Packs
Adjustable output voltage, ~5.1V-6.4V
5A continuous, 8A peaks (8.4V input and 6.0V output)
Optional Failsafe Switch & Charge Package Available
Light weight: 0.9 oz
Small size 2.25" x 2.0" x 0.5"
850mV dropout @ 5A

Failsafe-switch and charge package $19.95

CAUTION: When the regulator is operated with the optional failsafe-switch it presents a slight load to your battery even when off. This load is 0.4mAH or about 10mA out of your pack for each 24-hour period. You should disconnect the battery if you the plane will be sitting for more than a couple days.
