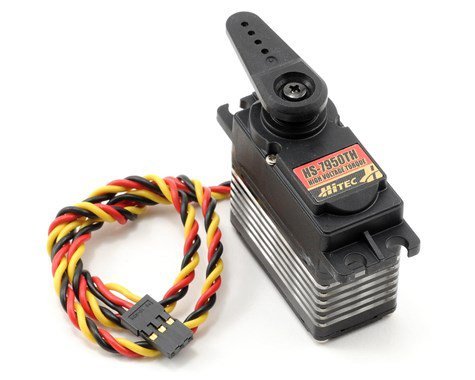

HS-7950TH Ultra Torque HV Coreless Titanium Gear Servo

Hitec's strongest servo period, the "Ultra Torque" HS-7950TH is designed to operate on a two cell LiPo Pack. Featuring our high resolution "G2" second generation programmable digital circuit and our indestructible Titanium gears, the HS-7950TH has the performance and durability you've come to expect from a Hitec servo. Other features in the HS-7950TH include a 7.4V optimized coreless motor, integrated heat sink case, and a top case with two hardened steel gear pins supported by axial brass bushing.

The HS-7950TH has been designed for the most demanding hobby applications including the largest aircraft and monster trucks. Featuring a titanic 403 oz./in. of torque at 6.0 volts, while still maintaining a respectable 0.15 second transit time.

Features
G2 Digital Circuit
Titanium Gear Train (MK first gear)
Ultra Performance Coreless Motor
Heatsink Case
(8) O-Rings for Water/Dust/Fuel protection
Dual Ball Bearing Supported Output Shaft
Programmable Features Include:

Dead Band Width
Direction of Rotation
Speed of Rotation (slower)
End Points
Neutral Points
Fail Safe On/Off
Fail Safe Point
Resolution* (default is high resolution)
Overload Protection* (default is off)

*These features are only programmable with the HFP-20, HPP-20 or HPP-21 programmers.

Specifications

Motor Type: Coreless
Bearing Type: Dual Ball Bearing
Speed (6.0V/7.4V): 0.15 / 0.13
Torque oz./in. (6.0V/7.4V): 403 / 486
Torque kg./cm. (6.0V/7.4V): 29.0 / 35.0
Size in Inches: 1.57 x 0.79 x 1.50
Size in Millimeters: 39.88 x 20.07 x 38.10
Weight oz.: 2.40
Weight g.: 68.04
