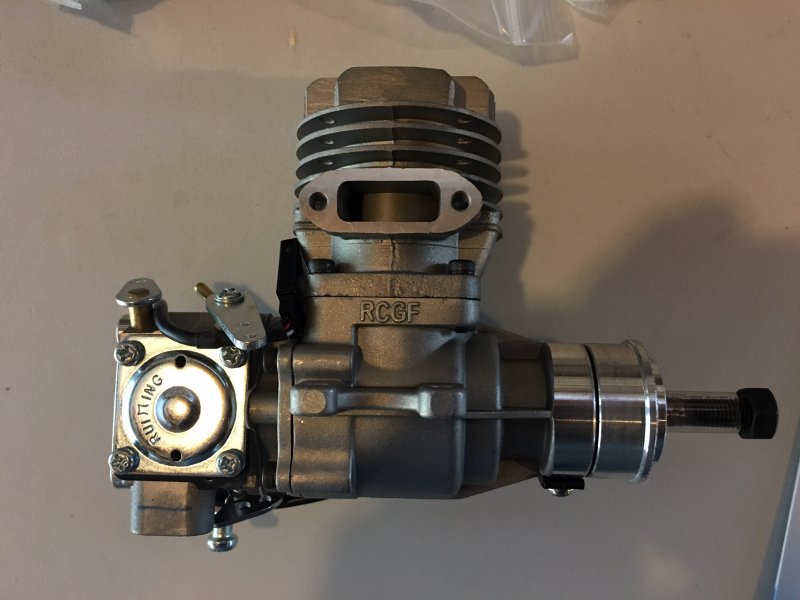

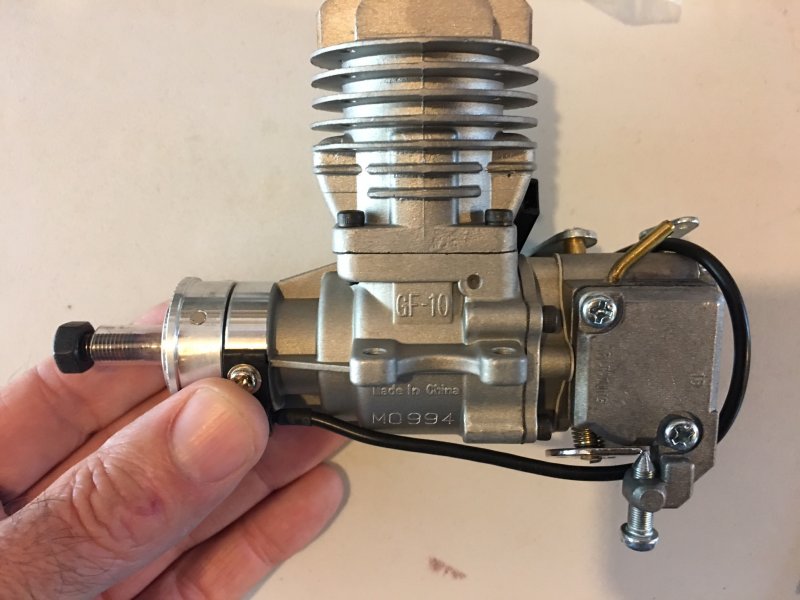

Stinger 10cc SE Side Exhaust beam mount gas engine

RCGF 10cc SE -Stinger
Parameter
Type : 2 cycle piston valve type gasoline engine for airplane
Displacement (cc) : 10cc (.61 cu in)
Bore x Stroke (mm): 1.08 in (27.6mm)*0.67 in (17mm)
Carburetor : Walbro
Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)
Power supply: 6-14V
SPARK PLUG: M8 1/4-32
Maximum Output : 1.9 hp @ 15000rpm
Requires: Gasoline, 2-cycle oil, ignition battery & propeller
speed rang : 2000-15000rpm
Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 (recommended : 30:1) (90% high otcane unleaded gasoline, Import gas into carbon fiber installations valves)
Lubrication Oil : 2 cycle engine oil
Propeller : 13*7 9800 rpm; 14*6 9000rpm (Standard Two leafs prop)
recommended props :13 x 6, 14 x6,13X8,13X7
recommended Airplane: 50 size plane,40 size plane
Cooling System : Air Cooled

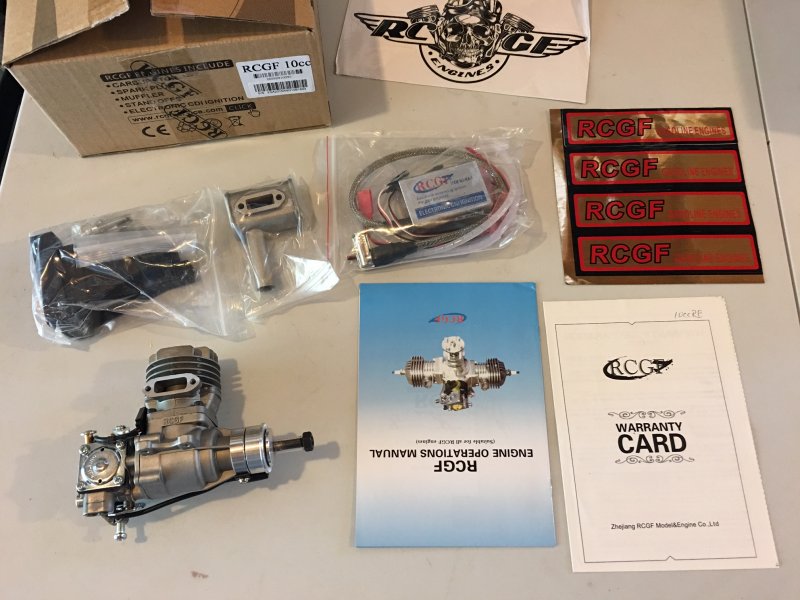

RCGF Engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.
Weight:
Engine: 1.03 lb (468 g)
Muffler: 1.4 oz (40 g)
Ignition Module: 4.1 oz (115 g)
Total: Weight: 1.37 lb (623 g)
Technical Data:
Ignition Battery: 6-8.4NiCd or NiMH, 6.6V LiFe or 2S LiPo pack
Gasoline/Oil Mix: 30:1
Replacement Spark Plug: 1/4-32 or equivalent (M8)
Idle Speed: 2000 rpm/min
Static Thrust:
8.38 lb (3.8 kg) @ 328 ft (100 m) altitude
7.94 lb (3.6 kg) @ 5,900 ft (1800 m) altitude
