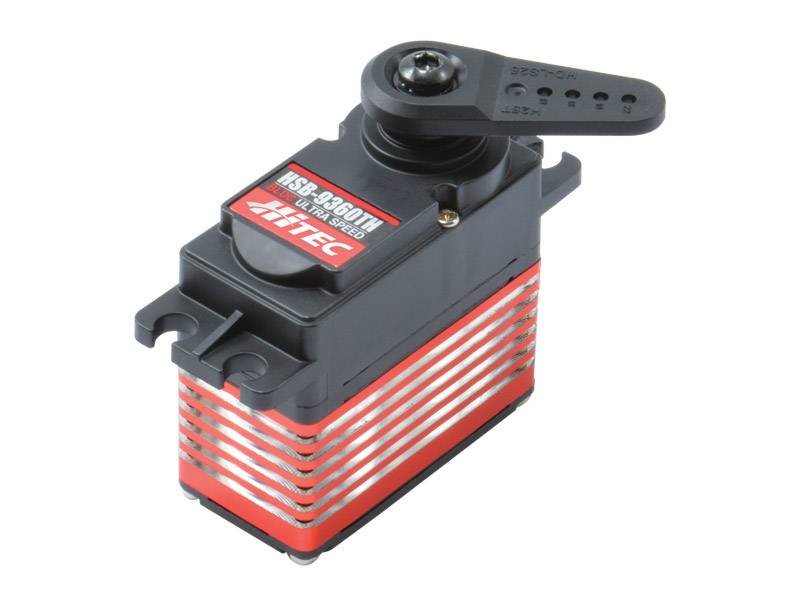

HSB-9360TH High Speed, Brushless, Titanium Gear Servo

Product Description
With ultra-efficient Neu brushless motors, titanium gear trains, low current consumption and constant output power, the HSB-93XX series of servos is the perfect match for the most discriminating pilots and racers. The HSB-9360's speed is ideal for helicopter pilots.
NOTICE: Please read this service bulletin regarding Hitec brushless servos with certain RC devices.

Features
Programmable 12-Bit PWM Digital Amplifier
Custom Long Life Brushless Motor
1M Cycle Long Life Potentiometer
Constant Output Torque
Wide Operating Voltage (5 ~ 9 Volts DC)
Dual Ball Bearing Supported Output Shaft
Dust Resistant and Splash Proof Case
25-Tooth Output Spline
Hybrid Nylon Reinforced Plastic and Aluminum Case
Low Power Consumption

Programmable Functions
End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Soft Start Rate
Data Save / Load
Program Reset (From File)

Accessories
3 Titanium / Steel Gears Set | Link |
Metal / Plastic / Duralumin Hybrid 1st Gear Set | Link |
Plastic / Aluminum Case Set | Link |
Applicable Horns | Link 1 - 2 - 3 |

HS-9360TH Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 6.0V ~ 7.4V
Speed (Second @ 60) 0.08 ~ 0.06
Maximum Torque Range oz. / in. 236
Maximum Torque Range kg. / cm. 17
Current Draw at Idle 27 mA
No Load Operating Current Draw 250 mA
Stall Current Draw 2,100 mA
Dead Band Width 1 us
Physical Specifications

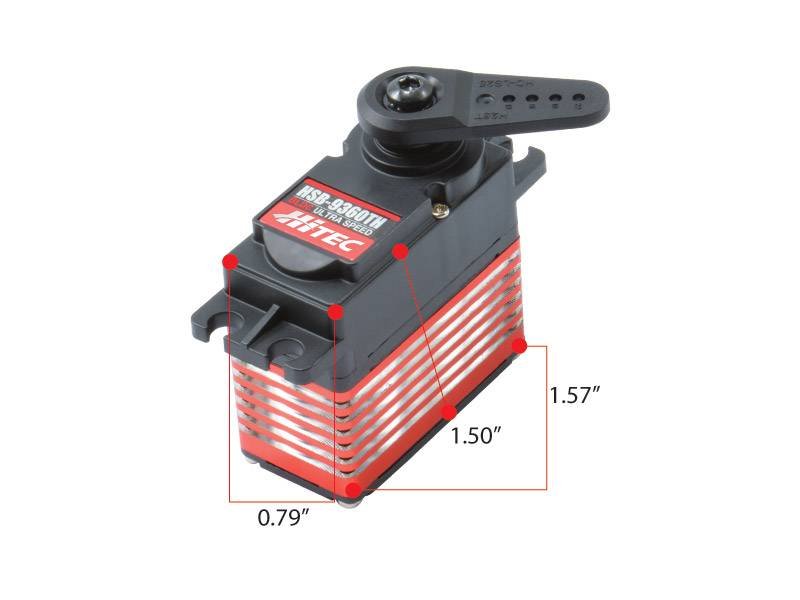

Dimensions (Inches) 1.57 x 0.79 x 1.50
Dimensions (Metric) 40.0 x 20.0 x 38.0
Weight (Ounces) 2.4
Weight (Gram) 68.0
Circuit Type EBL Digital
Motor Type NeuCastle Brushless
Gear Material Titanium
Bearing Type Dual Ball Bearing
Output Shaft (type / Omm) H25T
Case Material Plastic / Aluminum
Dust / Water Resistance Splash Proof
Connector Gauge (AWG) / Strand Count 20 / 80
