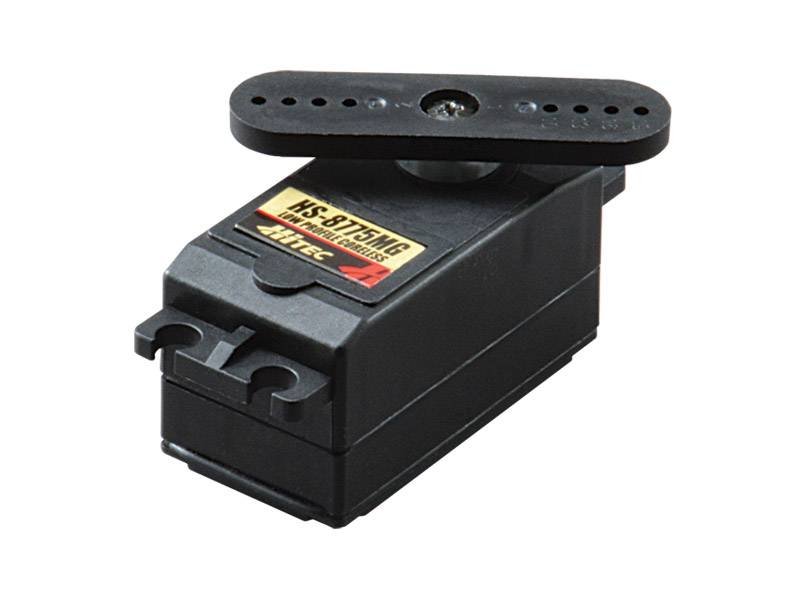

HS-8775MG High Responsive, Low Profile, Metal Gear Servo

Product Description
Featuring a coreless motor for smooth operation and faster response time, our HS-8775MG low profile, digital servo provides high resolution performance to your electric and 1/10th scale nitro vehicles, mid to large size nitro and large scale electric helicopters. Its metal gears and dual ball bearings add to its strength and reliability. Featuring the industry standard 25-tooth output spline, the HS-8775MG is your "go to" servo.

Features
Efficient Coreless Motor
Strong Metal Gears
Non-Programmable, Digital Circuitry
Standard 25-Tooth Spline
Low Profile Size for Tighter Installations

Accessories
Titanium Gear Set | Link |
Metal / Karbonite 1st Gear Set | Link |
Plastic Case Set | Link |
Applicable Horns

HS-8775MG Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60) 0.12 ~ 0.10
Maximum Torque Range oz. / in. 100 ~ 125
Maximum Torque Range kg. / cm. 7.2 ~ 9.0
Current Draw at Idle 10 mA
No Load Operating Current Draw 240 mA
Stall Current Draw 3,000 mA
Dead Band Width < 1 us
Physical Specifications
Dimensions (Inches) 1.59 x 0.83 x 1.00
Dimensions (Metric) 40.4 x 21.0 x 25.4
Weight (Ounces) 1.72
Weight (Gram) 45.0
Circuit Type HR Digital
Motor Type Coreless Metal Brush
Gear Material Titanium
Bearing Type Dual Ball Bearing
Output Shaft (type / Omm) H25T
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 20 / 80
