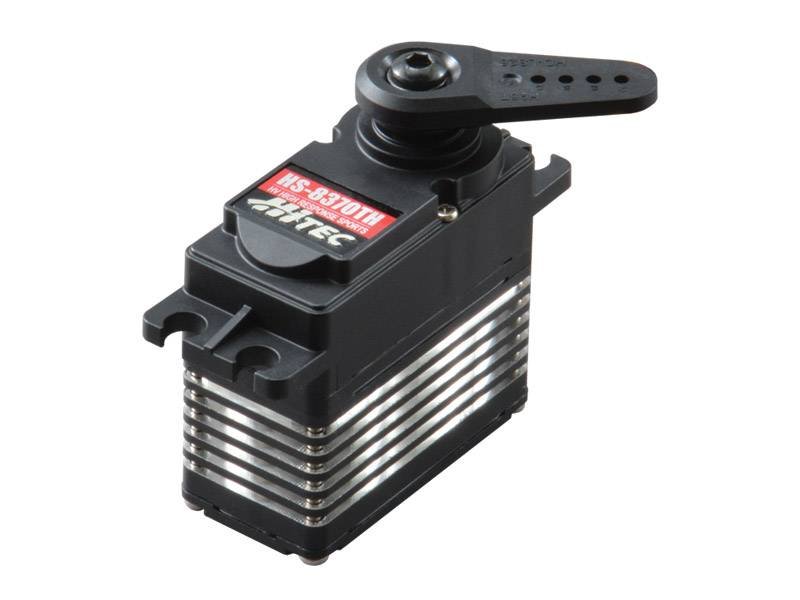

HS-8370TH High Voltage, High Responsive, Multi-Purpose Titanium Gear Servo

Product Description
The versatile, multipurpose functionality of the HS-8370TH will have all radio control enthusiasts clamoring for more. Robust titanium gears, ultra-efficient coreless motor, high resolution, non-programmable digital circuits make this swift, responsive servo incredibly durable and amazingly reliable. Install the HS-8370TH in everything from your 35% sport plane to your 700+ size heli to your 1/8th short course truck - no matter what application, it gets the job done.

Features
High Resolution Ultra Response Non-Programmable Digital Circuit
Efficient Coreless Motor
Durable Titanium Gears
7.4v 2-Cell LiPo Capability
Industry Standard 25 Tooth Spline (Fut. Compatible)

HS-8370TH Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60) 0.12 ~ 0.10
Maximum Torque Range oz. / in. 250 ~ 319
Maximum Torque Range kg. / cm. 18.0 ~ 23.0
Current Draw at Idle XX mAh
No Load Operating Current Draw XXX mAh
Stall Current Draw XXXX mAh
Dead Band Width X us
Physical Specifications
Dimensions (Inches) 1.57 x 0.79 x 1.50
Dimensions (Metric) 40.0 x 20.0 x 38.0
Weight (Ounces) 2.4
Weight (Gram) 68.0
Circuit Type HR Digital
Motor Type Coreless Metal Brush
Gear Material Titanium
Bearing Type Dual Ball Bearing
Output Shaft (type / Omm) H25T
Case Material XXXX
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 20 / 80
