JR RG612BX 6CH DMSS XBus Receiver

Overview

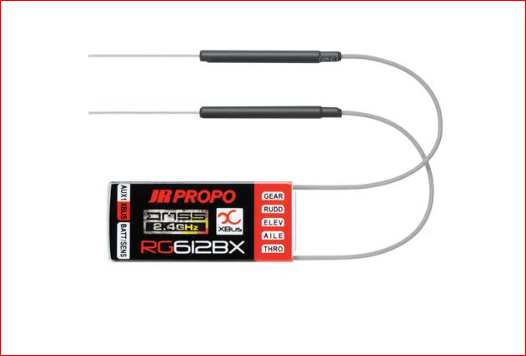

JR - JRPR03599 - RG612BX 6CH DMSS XBus Receiver

The world's most advanced 6-channel receiver!

The new RG612BX 6-channel XBus receiver is about to turn the receiver market on its ear. Never before has such a simple receiver been so capable.

It's diffcult to pick just ONE reason why this receiver is so special. One could point to the path diversity antennas that eliminate the need for a separate remote for full-range signal and telemetry data. Perhaps the fact that this receiver is the first 6-channel and smallest receiver in JR's lineup that is also XBus capable. Maybe the low power consumption, EZ BIND simplicity and ultimate flexibility are the main selling points. Whatever you choose, you can't argue with the fact that the RG612BX is indeed a revolutionary piece of equipment that deserves a home in one of your models. If you've got a sailplane or smaller model where space is at a premium but compromising performance isn't an option, take a look at the new RG612BX receiver, only from JR.

Features

JR - JRPR03599 - RG612BX 6CH DMSS XBus Receiver
Path diversity antennas provide full-range signal and telemetry data without a remote antenna
5-channel standard PWM output and single shared XBus or PWM output can be used parallel with one another for additional capability.
EZ BIND capable- no bind plugs necessary!
Low power consumption
Option to add RA02TL remote for additional path diversity in more complex installations.

Specifications

JR - JRPR03599 - RG612BX 6CH DMSS XBus Receiver
Type: full-range
Channel Count: 6
Modulation: DMSS
Band: 2.4Ghz
Case Type: soft poly
Length: 1.65 in (42.0mm)
Width: 0.73 in (18.5mm)
Height: 0.49 in (12.5mm)
Weight: 0.32oz (9g)
Input Voltage: 4.0-8.5V
Antenna Length: 150mm
