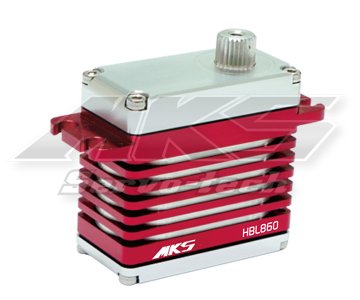

MKS HBL860 (0.11 sec/60 - 31.5 kg.cm @8.2V)
MKS HBL860 (0.11 sec/60 - 31.5 kg.cm @8.2V) Details SKU MKS-HBL860 Dead Band 0.0008ms (Default) Control System +Pulse Width Control Working Frequence 1520μs / 333hz Operating Voltage 6 ~ 8.4 Volts Operating Temperature Range -10 to + 60 Degree C Operating Speed (6V) 0.15 sec/60 degrees at no load Operating Speed (7.4V) 0.12 sec/60 degrees at no load Operating Speed (8.4V) 0.11 sec/60 degrees at no load Stall Torque (6V) 24.8 kg/cm Stall Torque (7.4V) 28.5 kg/cm Stall Torque (8.4V) 31.5 kg/cm Motor Type Brushless Motor Potentiometer Drive Indirect Drive Bearing Type Dual Ball Bearings Gear Type Metal Gears Connector Wire Length 24.0 cm (9.4 in) Dimensions 40 x 20 x 38.5 mm Weight 73 g Entire line of MKS servos are available, please call for more info or details
