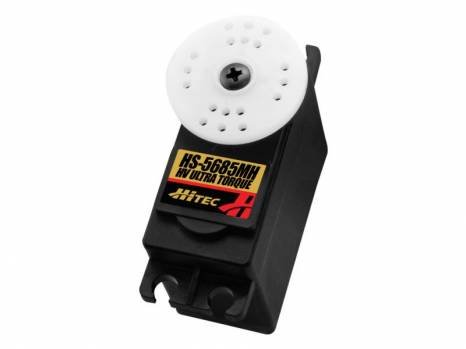

HS-5685MH High Voltage, High Torque, Metal Gear Digital Sport Servo

The HS-5685MH High Torque HV Metal Gear servo was designed to run on a 2-cell 7.4V LiPo battery to give you extra torque and speed. Featuring a heavy-duty metal gear train and our exclusive programmable digital circuit for reliable, durable performance, these servos can be used in a wide range of applications.

Our affordable digital sport servos are the perfect companion for 1/10th to 1/8th scale on- and off-road vehicles, as well as larger sport helicopters and large scale aerobatic aircraft up to 25-percent.

Features
Programmable Digital Circuit
Heavy-Duty Metal Gear Train (MK first gear)
7.4V Optimized Motor
Dual Ball Bearing Supported Output Shaft

Programmable Features
Dead Band Width
Direction of Rotation
Speed of Rotation (slower)
End Points
Neutral Points
Fail Safe On/Off
Fail Safe Point

Specifications

Motor Type: 3 Pole Ferrite
Bearing Type: Dual Ball Bearing
Speed (6.0V/7.4V): 0.20 / 0.17 Second 60
Torque oz./in. (6.0V/7.4V): 157 / 179
Torque kg./cm. (6.0V/7.4V): 11.3 / 12.9
Size in Inches: 1.6 x 0.8 x 1.5 in
Size in Millimeters: 40.6 x 19.8 x 37.8 mm
Weight oz.: 2.1
Weight g.: 60g
