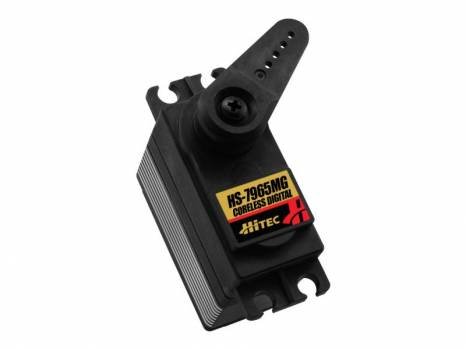

HS-7965MG High Speed, Metal Gear Coreless Premium Digital Servo

Replacing the now discontinued HS-5965MG, our new premium high speed HS-7965MG Digital Servo has the added benefit of our new G2 second generation programmable digital circuit. This circuit has twice the resolution of our original circuit while adding programmable overload protection. The technology doesn't stop at the circuit board, with high performance coreless motors, dual ball bearings, bushing supported gear shafts and our Heavy Duty Metal gear train the HS-7965MG will give you everything you need no matter what the demand.

Features
G2 Digital Circuit
Coreless Motor
Dual Ball Bearing Supported Output Shaft
Metal Gear Train (MK first gear)

Programmable Features
Dead Band Width
Direction of Rotation
Speed of Rotation (slower)
End Points
Neutral Points
Fail Safe On/Off
Fail Safe Point
Resolution (default is high resolution)
Overload Protection (default is off)

These features are only programmable with the HFP-20 field programmer.

Specifications

Motor Type: Coreless
Bearing Type: Dual Ball Bearing
Speed (4.8V/6.0V): 0.13 / 0.10
Torque oz./in. (4.8V/6.0V): 111 / 139
Torque kg./cm. (4.8V/6.0V): 8.0 / 10.0
Size in Inches: 1.57 x 0.78 x 1.45
Size in Millimeters: 39.88 x 19.81 x 36.83
Weight ounces: 2.18
Weight grams: 61.80
