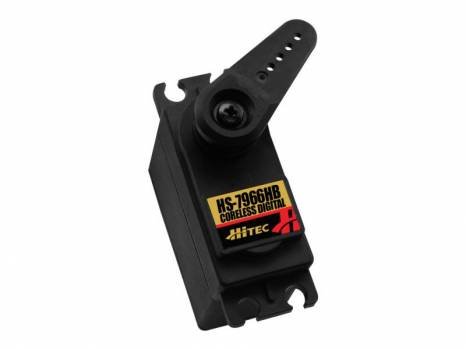

HS-7966HB High Speed, Karbonite Gear, Coreless Premium Digital Servo

The HS-7966HB is Hitec"s fastest standard size servo. Providing a blinding fast .08 transit speed, instant torque and fantastic holding power, the HS-7966HB has our new G2 second generation programmable digital circuit. This circuit has twice the resolution of our original circuit while adding programmable overload protection.

Features
Our Fastest Karbonite Gear Servo
Efficient Coreless Motor
Long-Lasting Karbonite Gears
Dual Ball Bearing
G2 Fully Programmable Digital Circuit

Programmable Features
Dead Band Width
Direction of Rotation
Speed of Rotation (slower)
End Points
Neutral Points
Fail Safe On/Off
Fail Safe Point
Resolution (default is high resolution)
Overload Protection (default is off)

These features are only programmable with the HFP-20 field programmer.

Specifications

Motor Type: Coreless
Bearing Type: Dual Ball Bearing
Speed (4.8V/6.0V): 0.10 / 0.08
Torque oz./in. (4.8V/6.0V): 92 / 111
Torque kg./cm. (4.8V/6.0V): 6.6 / 8.0
Size in Inches: 1.57 x 0.78 x 1.45
Size in Millimeters: 39.88 x 19.81 x 36.83
Weight ounces: 1.87
Weight grams: 53.01
