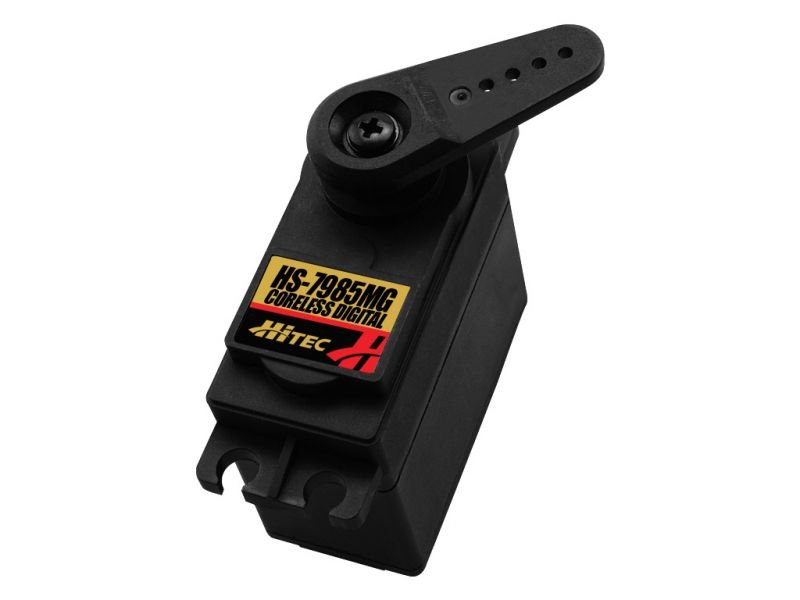

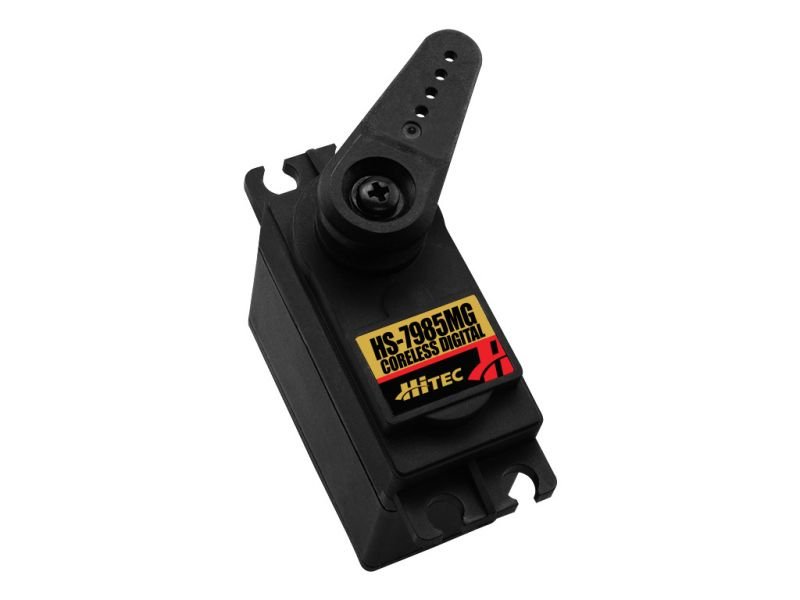

HS-7985MG High Torque Metal Gear Coreless Servo

The new HS-7985MG High Torque Digital Servo has the added benefit of our new G2 second generation programmable digital circuit. This circuit has twice the resolution of our original circuit while adding programmable overload protection. The technology doesn’t stop at the circuit board, with a high performance coreless motor, dual ball bearing supported output shaft, bushing supported gear shafts and our Heavy Duty Metal gear train the HS-7985MG was designed to withstand the stress of larger high performance aircraft and on/off road vehicles.

Features
G2 Digital Circuit
Coreless Motor
Dual Ball Bearing Supported Output Shaft
Metal Gear Train (MK first gear)
Programmable Features Include:

- Dead Band Width
- Direction of Rotation
- Speed of Rotation (slower)
- End Points
- Neutral Points
- Fail Safe On/Off
- Fail Safe Point
- Resolution* (default is high resolution)
- Overload Protection* (default is off)

These features are only programmable with the HFP-20 field programmer.

Specifications

Motor Type: Coreless
Bearing Type: Dual Ball Bearing
Speed (4.8V/6.0V): 0.16 / 0.13
Torque oz./in. (4.8V/6.0V): 144 / 172
Torque kg./cm. (4.8V/6.0V): 10.4 / 12.4

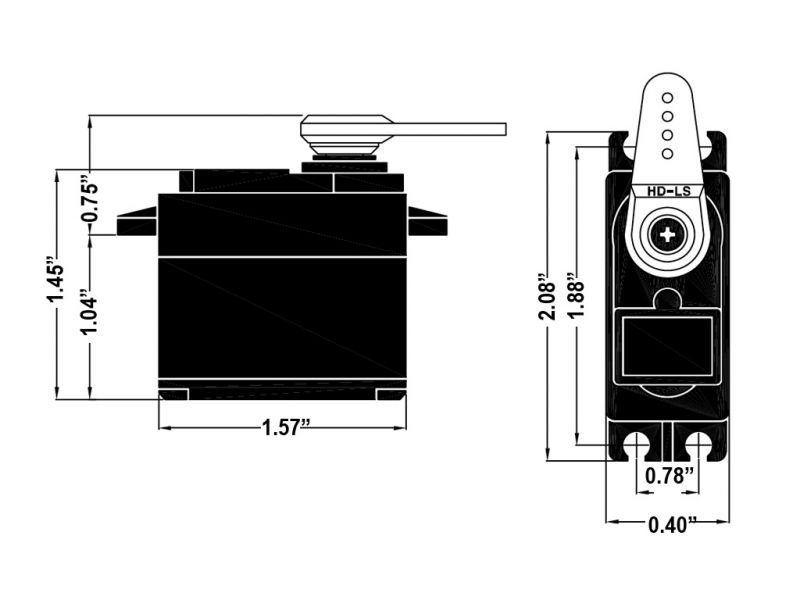

Size in Inches: 1.57 x 0.78 x 1.45
Size in Millimeters: 39.88 x 19.81 x 36.83
Weight ounces: 2.18
Weight grams: 61.80
