RCGF 120CC TWIN Gas Engine w/prop jig-drill guide

120cc Twin

High power ,low vibration, smooth operation, your best choice for big gasoline engine. Walbro carburetor matched the engine make it more reliable , CNC made crankcase make cases very strong.

RCGF 120cc T

Parameter:
Type : 2 cycle piston valve type gasoline engine for airplane
Piston displacement Cylinder (cc) : 120cc (7.32 cu.in)
Bore x Stroke (mm): 1.85 in(47mm) x 1.38 in (35mm)
Carburetor : RCGF

Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)
Power supply: 4.8-8.4V
Maximum Output :12.5HP/7600rpm

Requires: Gasoline, 2-cycle oil, ignition battery & propeller
speed rang : 1500-7600rpm

Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 , Recommend:30:1
(90% high otcane unleaded gasoline, Import gas into carbon fiber installations valves)
Lubrication Oil : 2 cycle engine oil
Propeller : 27X10 6580rpm (Standard Two blade prop)

Suggested Propellers: 26x10；26x12；27x10；28x10；29x9,10

Suggested Break-in Prop: 27X10

Sparking plug: NGK CM6 Type
Cooling System : Air Cooled

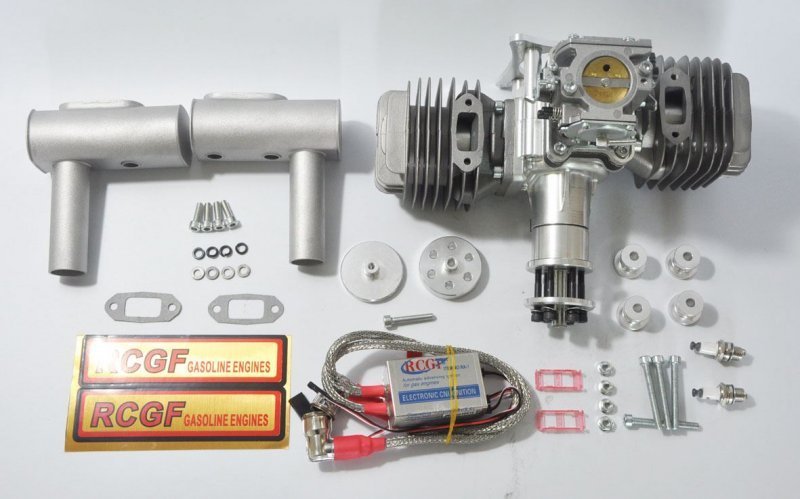

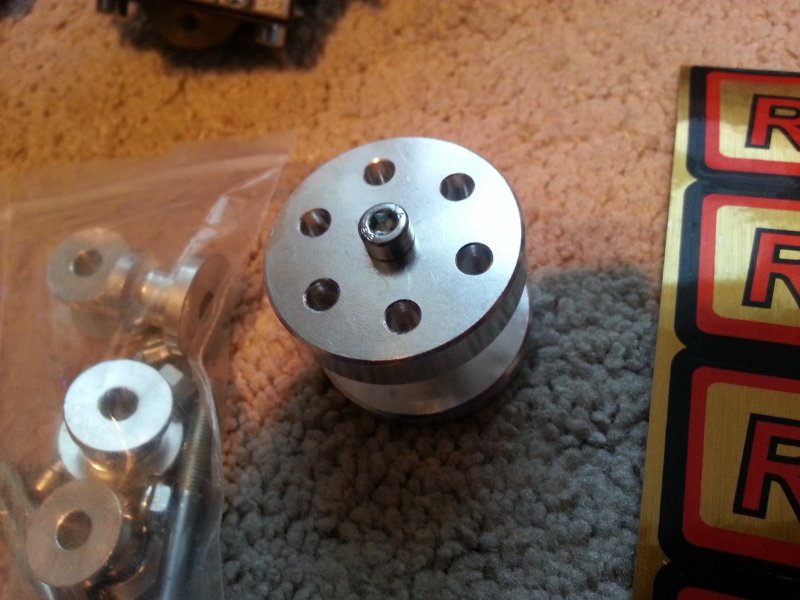

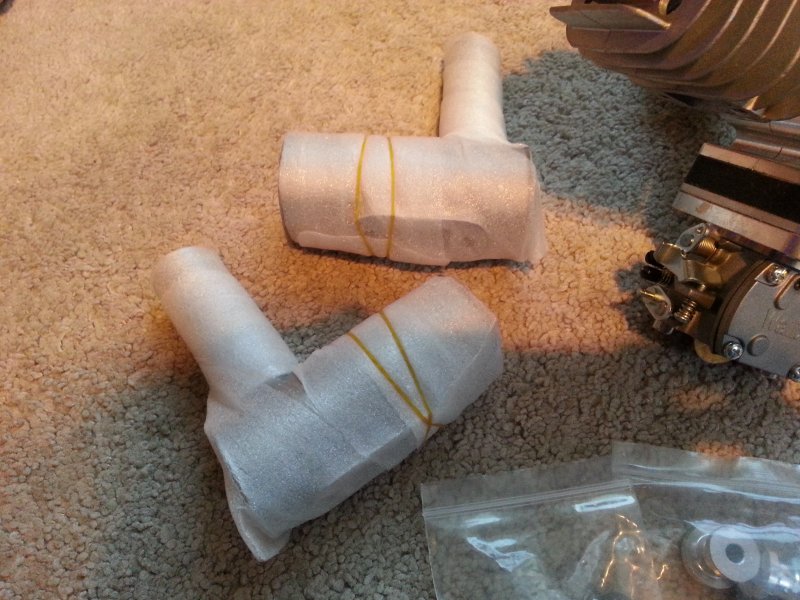

RCGF engine package Includes: electronic CDI ignition, mufflers, spark plugs, gaskets, bolts, throttle arm extension, prop drill guide/jig & manual.

Weight :

Engine: 5.69 lb (2580 g)

Muffler: 7.05 oz (200 g)

Ignition Module: 5.11 oz (145 g)

Total: Weight: 6.45 lb (2925 g)


Technical Data:
Ignition Battery: 4.8-8.4 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack
Gasoline/Oil Mix: 30:1
Replacement Spark Plug: NGK CM6 or equivalent
dle Speed: 1200 rpm/min
Static Thrust:
59.7 lb (27 kg) @ 328 ft (100 m) altitude
56.1lb (25.4kg) @ 5,900 ft (1800 m) altitude
