Ibcinyou r/c > Servos: Futaba, JR/DFA, Savox, MKS, Hitec, SWB Products > MKS Servos > MKS BLS950 (0.12 sec/60 - 11.5 kg.cm (159.7 oz/in) @6V)

$119.00

MKS BLS950 (0.12 sec/60 - 11.5 kg.cm (159.7 oz/in) @6V)

MKS BLS950 (0.12 sec/60 - 11.5 kg.cm (159.7 oz/in) @6V)

Details
SKU RC-MKS-BLS950
Dead Band 0.0008ms (Default)
Control System +Pulse Width Control
Working Frequence 1520μs / 333hz
(RX) Required Pulse 3.5 ~ 6.0 Volt Peak to Peak Square Wave
Operating Voltage 4.0 ~ 6.0 V DC Volts
Operating Temperature Range -10 to + 60 Degree C
Operating Speed (4.8V) 0.14 sec/60 degrees at no load
Operating Speed (6V) 0.12 sec/60 degrees at no load
Stall Torque (4.8V) 9.2 kg.cm (127.8 oz/in)
Stall Torque (6V) 11.5 kg.cm (159.7 oz/in)
Motor Type Brushless Motor
Potentiometer Drive Indirect Drive
Bearing Type Dual Ball Bearings
Gear Type Titanium Gears
Connector Wire Length 24.0 cm (9.4 in)
Dimensions 40 x 20 x 40 mm ( 1.57x0.79x1.50 in)
Weight 55.8 g (1.96 oz)

Entire line of MKS servos are available, please call for more info or details

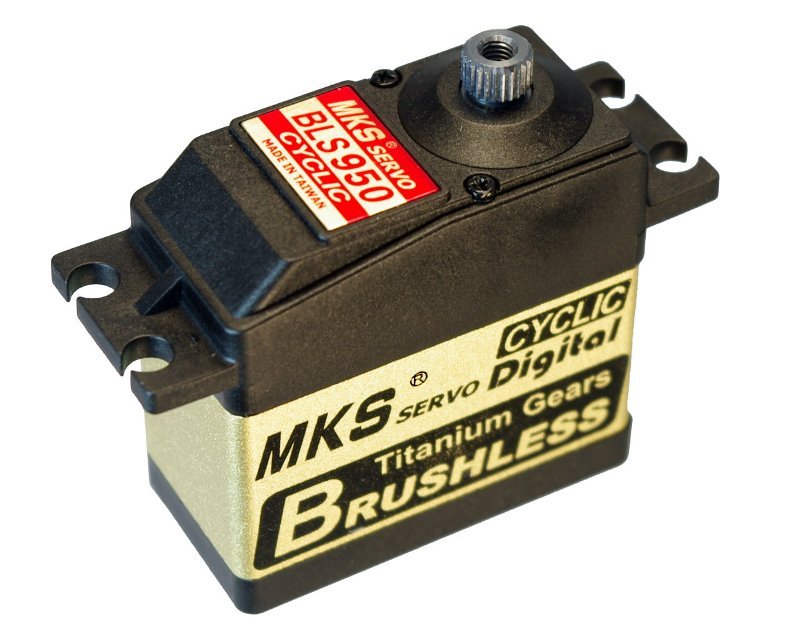

Image 0 of MKS BLS950 (0.12 sec/60 - 11.5 kg.cm (159.7 oz/in) @6V)
